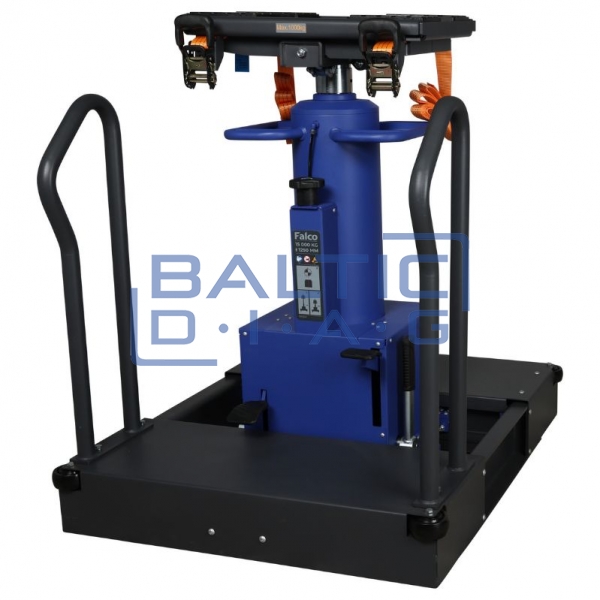

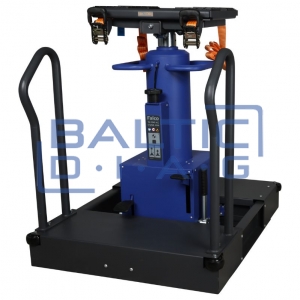

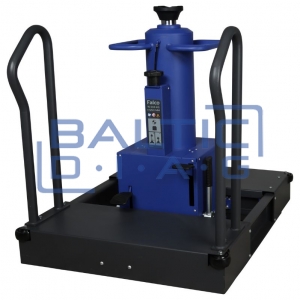

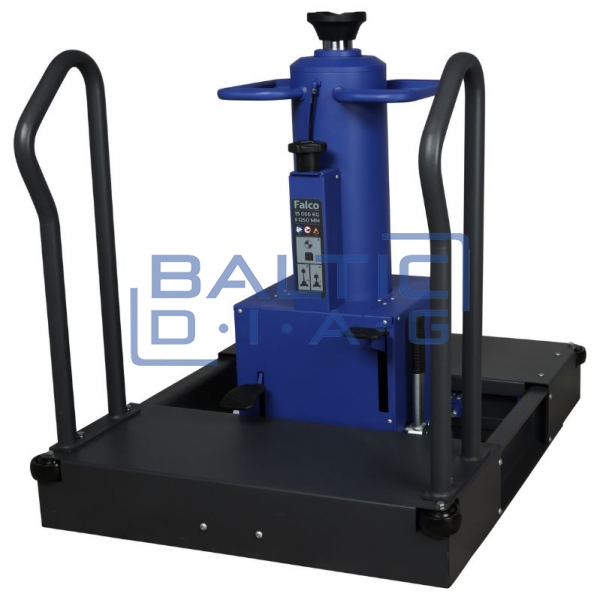

Mobile pit 15 tons jack for trucks Falco

Mobile pit 15 tons jack for trucks Falco

Features:

• Pneumatic-hydraulic system with automatic speed modes
• Telescopic cylinder with 1250 mm stroke and 2210 mm lifting height
• Lateral cylinder travel up to 280 mm for precise positioning
• Manual foot pedal operation for lifting without air pressure
• Spring-loaded wheels automatically retract under loads exceeding 800 kg
• Hand brake prevents unintentional rolling
• Shock-absorbing corner wheels for maneuvering in tight inspection pits
• Top tray for storing tools or adapters

Technical specifications:

• Lifting capacity: 15000 kg
• Minimum lifting height: 960 mm
• Maximum lifting height: 2210 mm
• Lifting stroke: 1250 mm
• Axle diameter: 60 mm
• Working air pressure: 7.5 – 12 bar
• Oil capacity: 8.6 L
• Oil type: OHCH15V

Product dimensions:

• Length: 960 mm
• Width: 845 mm
• Height: 1000 mm
• Weight: 255 kg

Package dimensions:

• Length: 1000 mm
• Width: 900 mm
• Height: 1000 mm
• Weight: 275 kg
