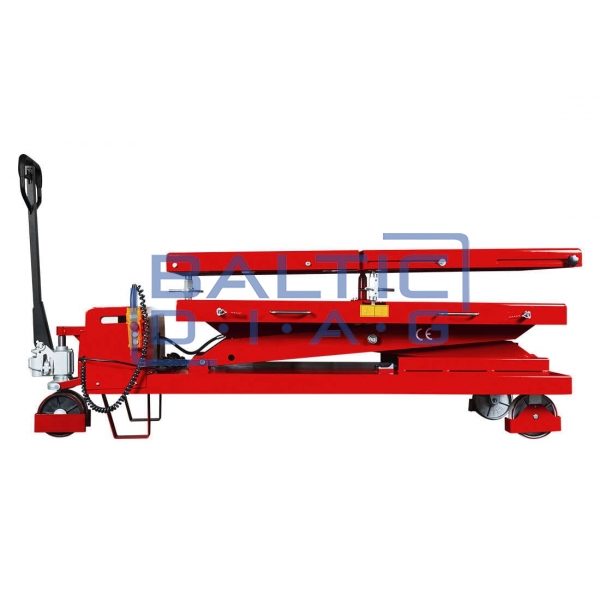

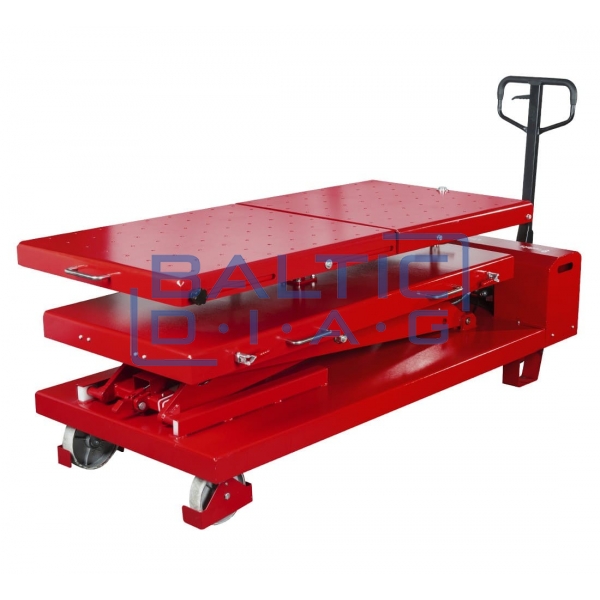

Mobile lifting table Redats LE-220 1200 kg

Manufacturer: Redats (Poland), warranty: 12 months

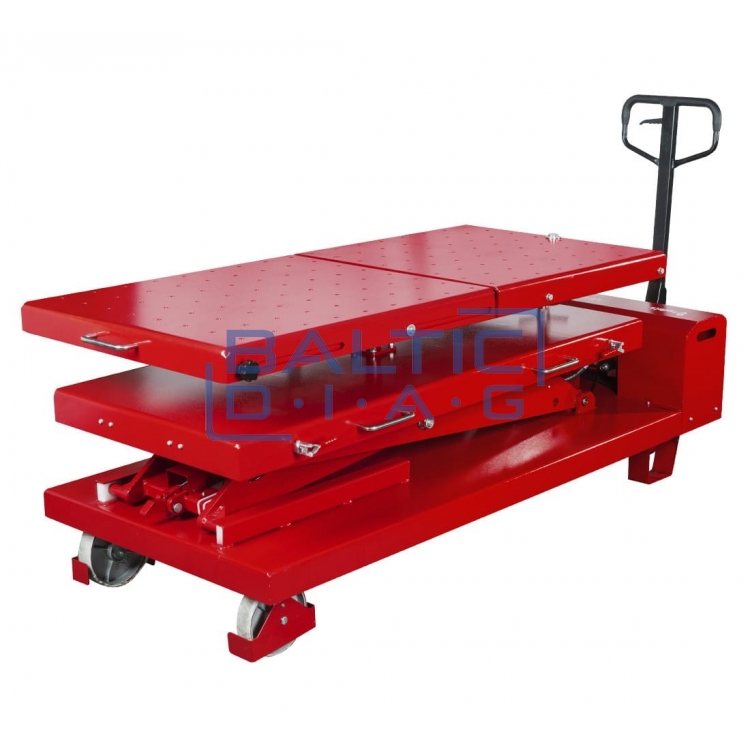

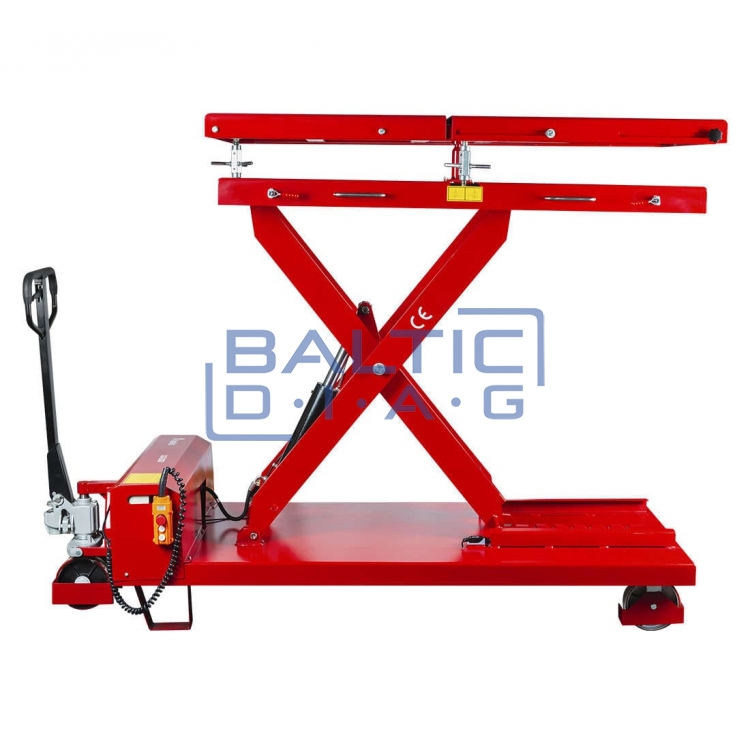

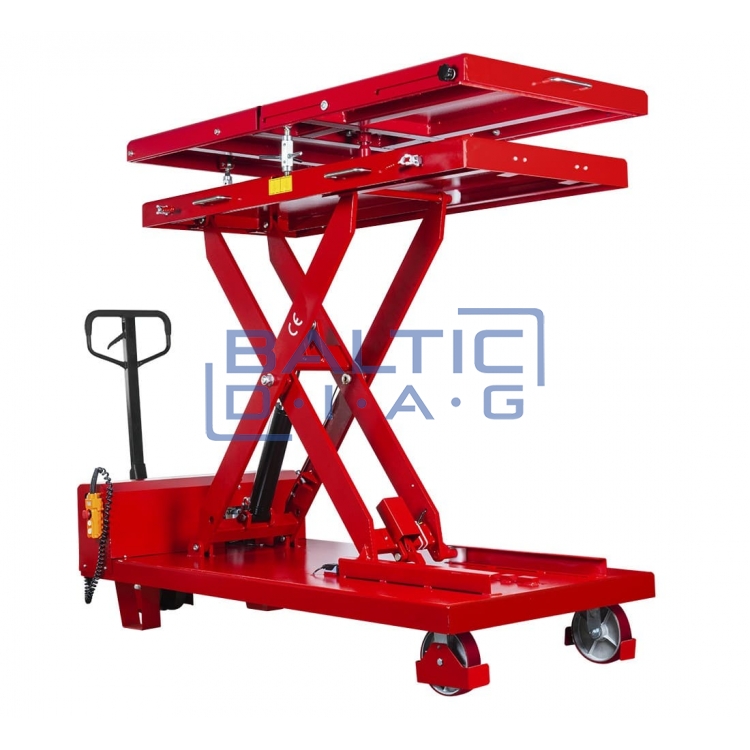

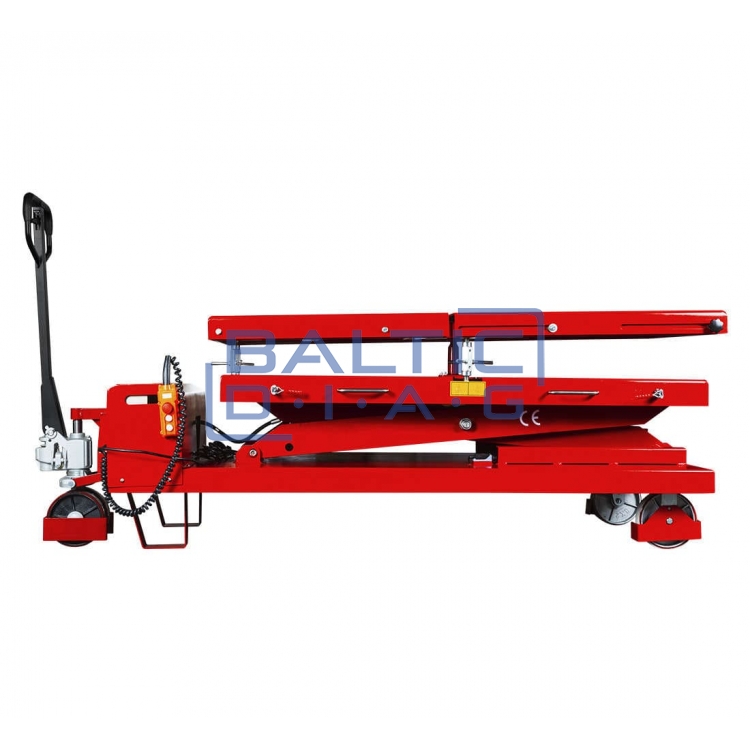

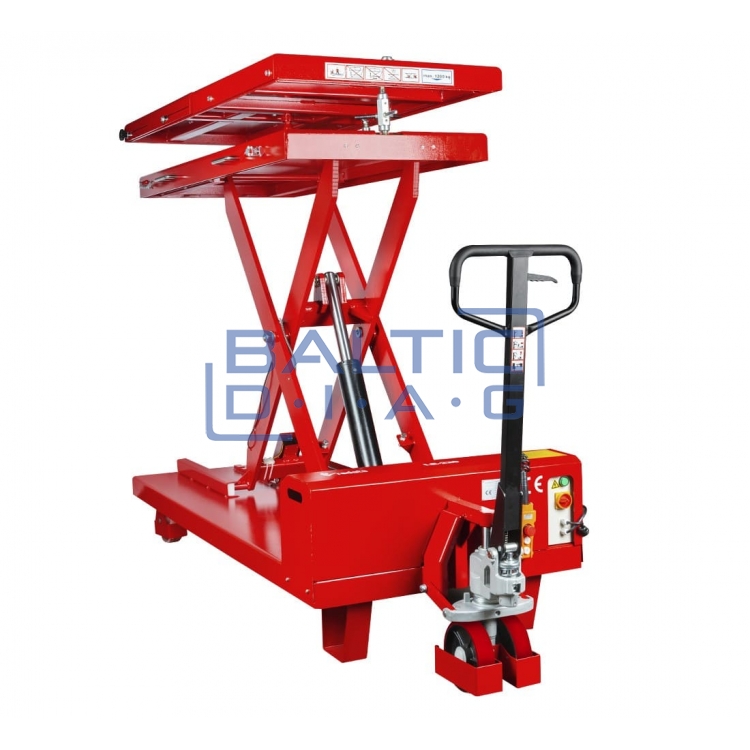

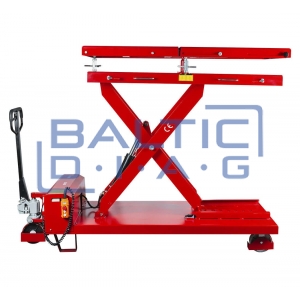

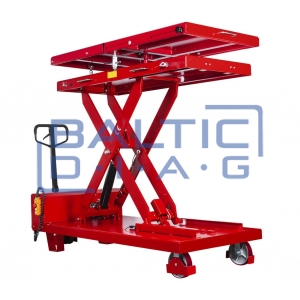

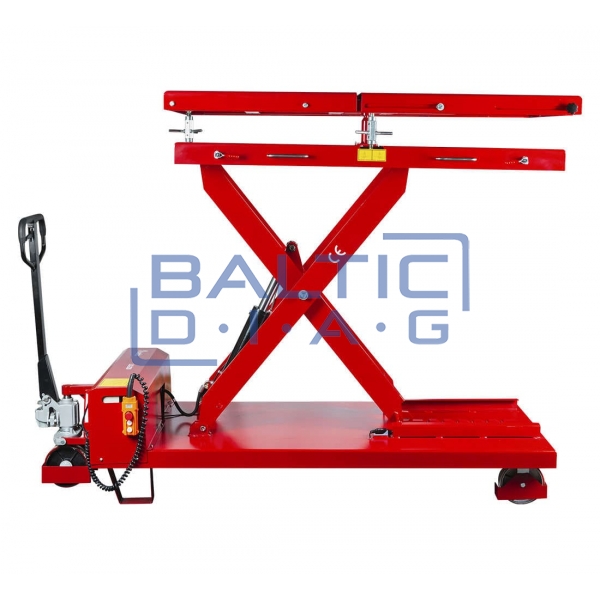

REDATS LE-220 platform hoist can lift up to 1200 kg of weight - engines, electric car batteries, gearboxes, other heavy mechanisms. The platform tabletop has M10 holes that will allow the lifting weight to be attached to the trolley. The telescopic platform can be extended up to 310 mm to adapt to specific jobs. There is a special safety feature that protects against sudden lowering. The lift truck also has a limit switch that limits the maximum lowering.

Technical data:

  • Max. lifting weight: 1200 kg
  • Mechanism: electric-hydraulic
  • Power: 1500 W
  • Weight: 720 kg
  • Width: 900 mm
  • Length: 2457 mm
  • Lifting/lowering time: 54 s / 58 s
  • Platform width: 800 mm
  • Platform length: 1750 mm (+310 mm)
  • Max. height: 1800 mm
  • Minimum height: 800 mm
  • Noise level: < 70 dB
