Mobile gasoline generator with 10 kW output

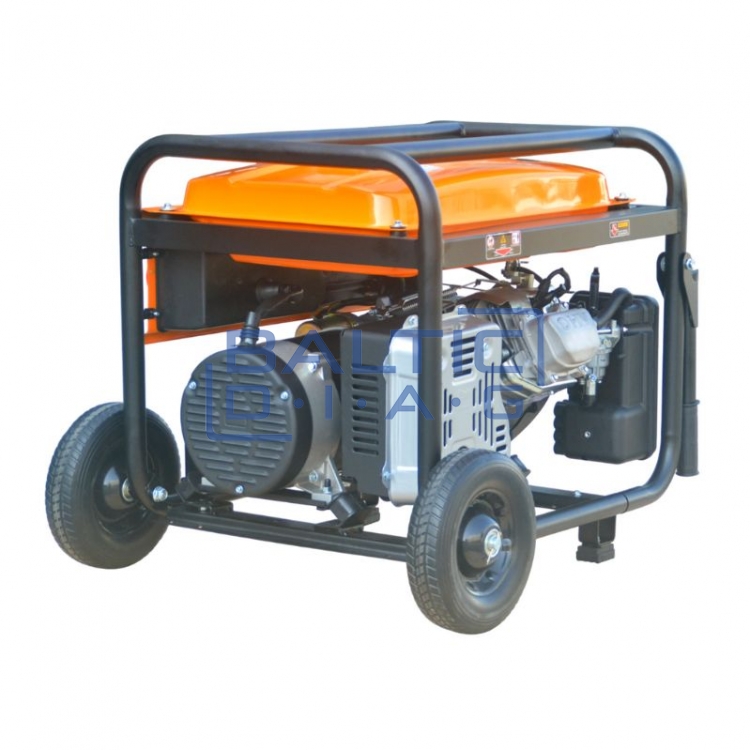

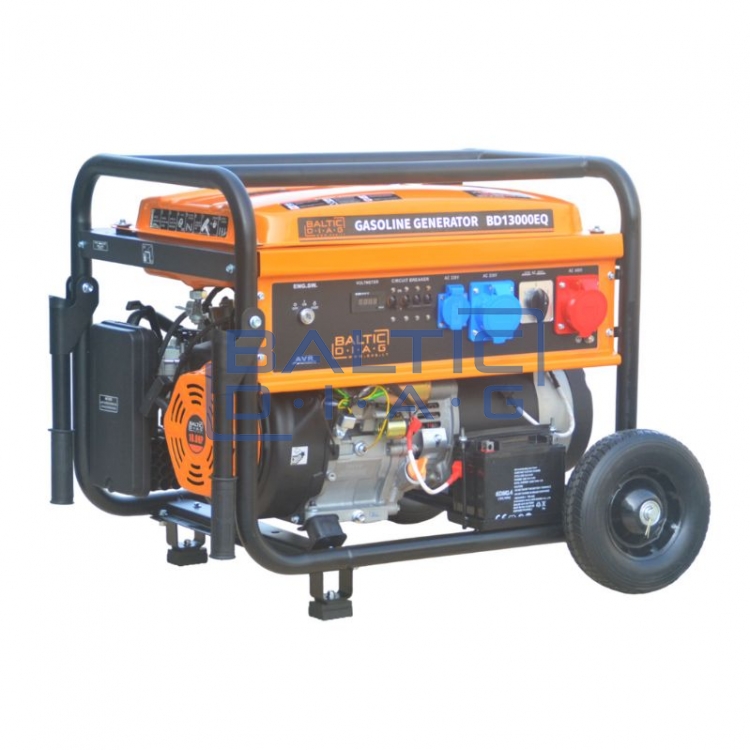

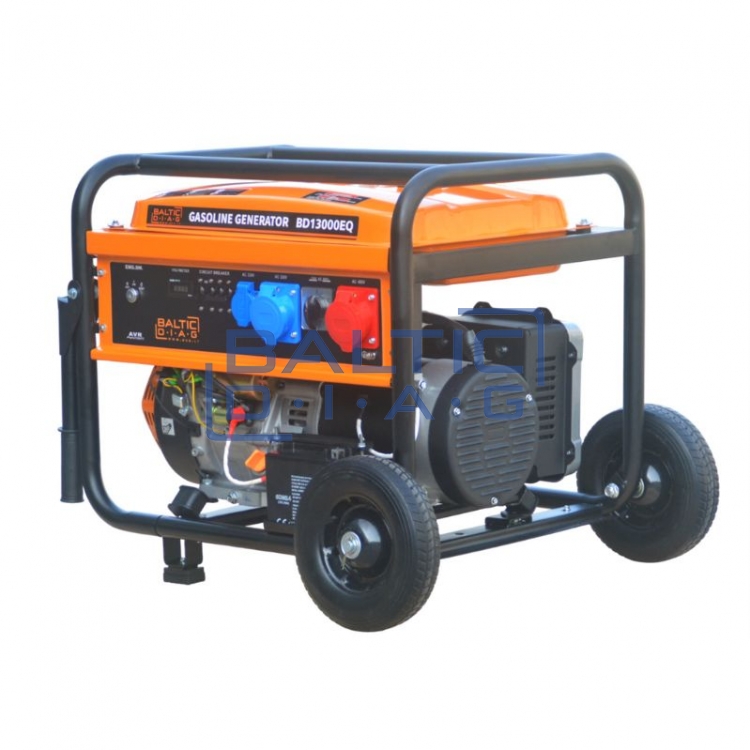

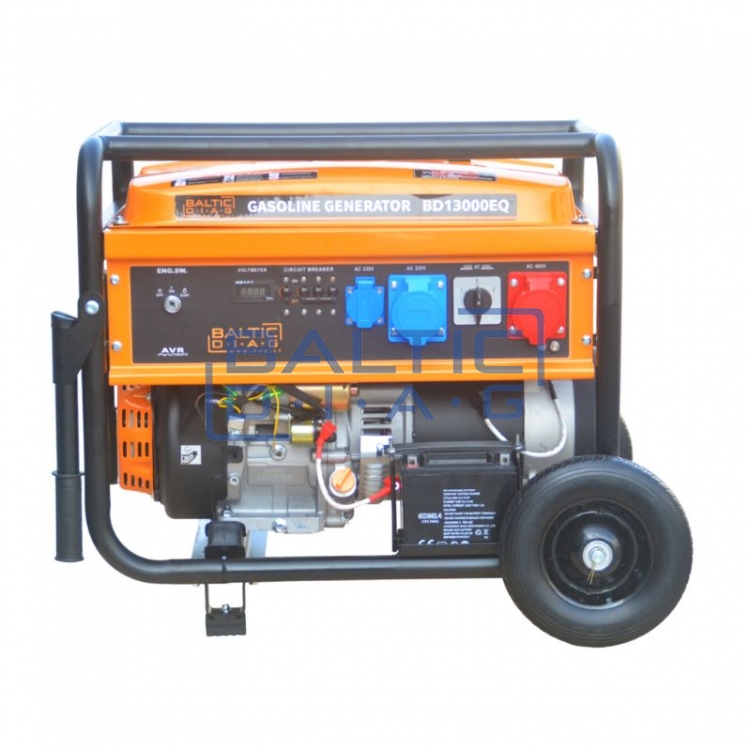

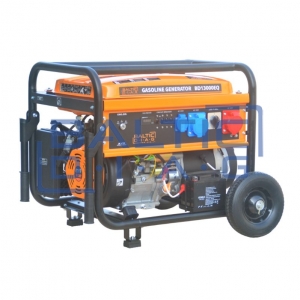

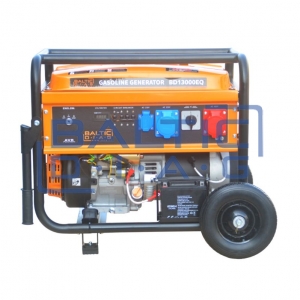

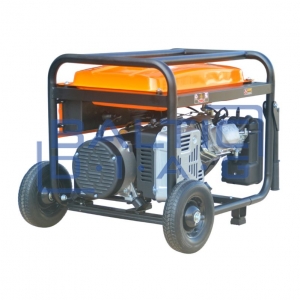

Mobile Gasoline Generator with 10 kW Output

Country of origin: China, warranty period – 24 months

The mobile gasoline generator is an advanced, compact, and reliable unit designed for both residential and commercial use. Thanks to its three-phase configuration and powerful 194F engine, this generator provides a stable 9 kW rated output and up to 10 kW maximum output. It is ideal for use at construction sites, outdoor projects, shops, cafés, farms, or as a backup power source for household needs. The generator features fuel efficiency, low noise levels, and convenient electric start with battery. Equipped with wheels and handles, it is easy to transport and use in any environment.

The unit maintains balanced power output across all phases. It also includes a function that allows the user to choose the desired voltage – 400 V or 230 V. This enables the generator to deliver 100% of its power in three-phase mode and up to 85–90% in single-phase mode. In comparison, standard diesel three-phase generators typically provide only 33% of their total power on a single phase.

Features:

• Electric start with battery
• Three-phase voltage – 230 V / 400 V, 50 Hz
• Built-in wheels and handles for easy transport
• Low noise level – only 85 dB (measured at 7 meters)
• Reliable air-cooling system
• Built-in AVR for stable voltage regulation
• Suitable for a wide range of devices and applications
• Compact dimensions for easy storage and transport

Technical specifications:

• Rated power: 9 kW
• Maximum power: 10 kW
• Engine model: 194F
• Engine type: single-cylinder, air-cooled
• Displacement: 520 cc
• Compression ratio: 8.0
• Ignition system: non-contact transistor (T.C.I)
• Voltage regulator: brush type with AVR
• Fuel tank capacity: 25 L
• Noise level (7 m): 85 dB
• Power supply: 230 V / 400 V, 50 Hz
• Dimensions: 710 × 590 × 595 mm
• Weight: 109 kg
