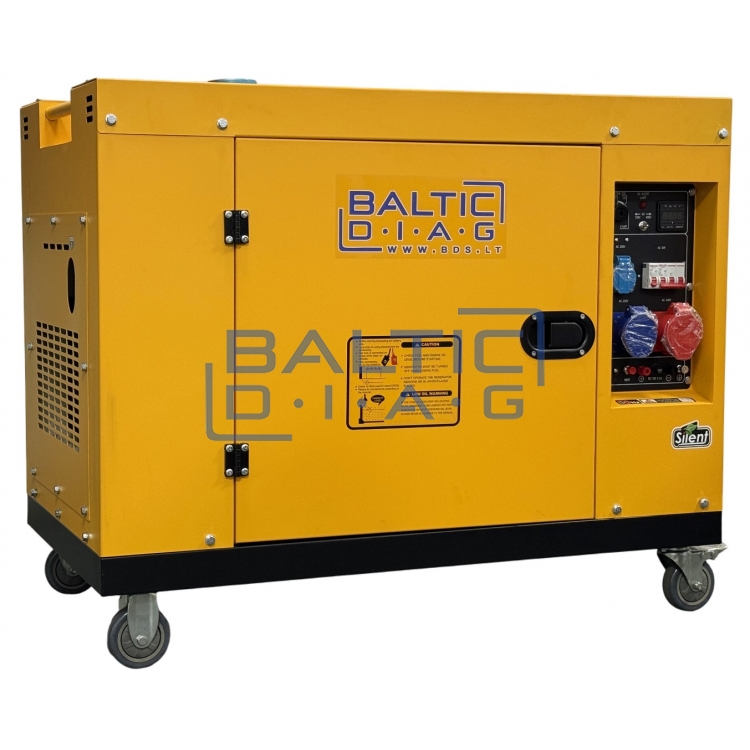

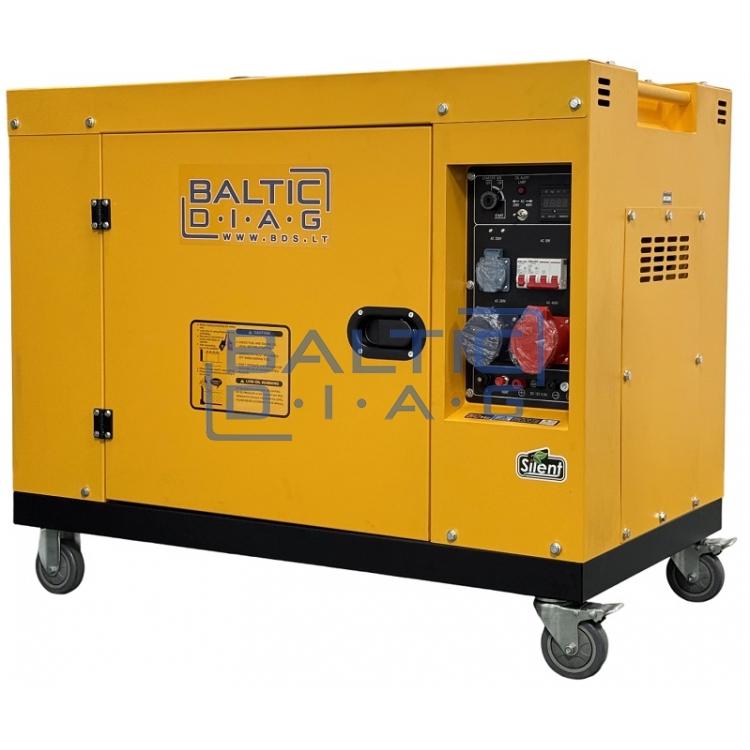

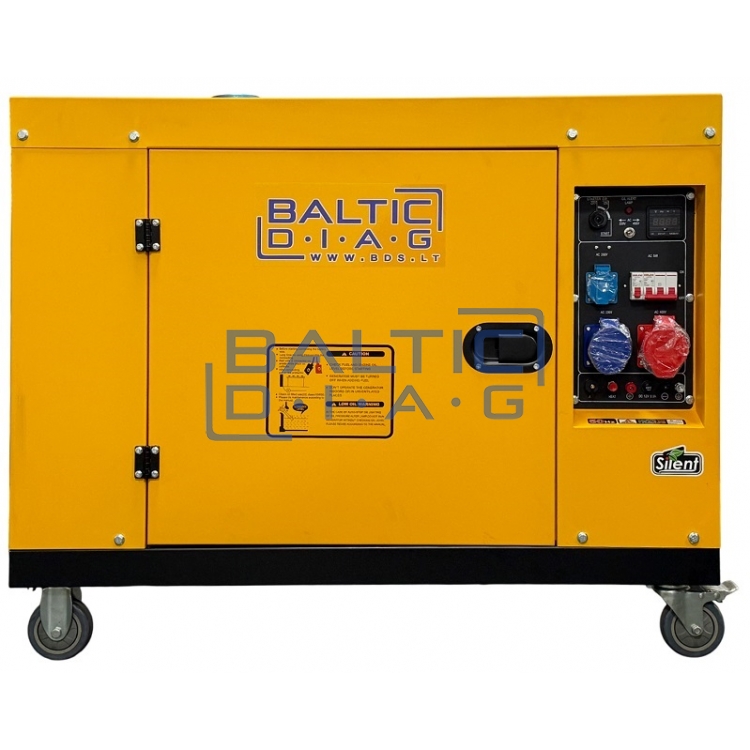

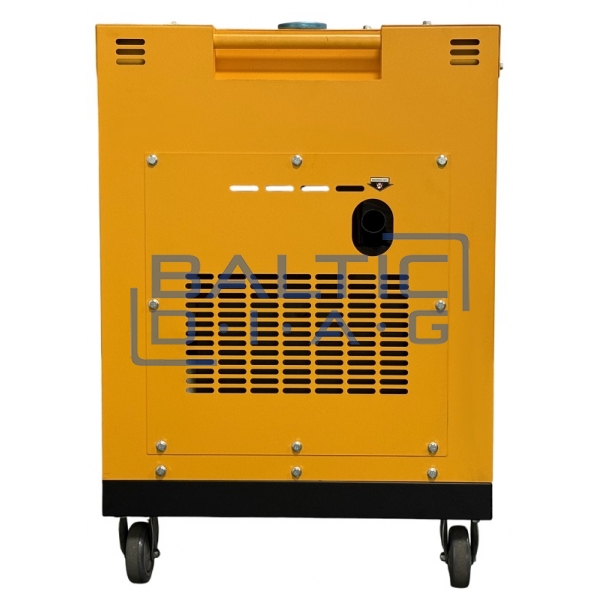

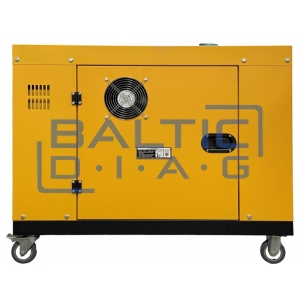

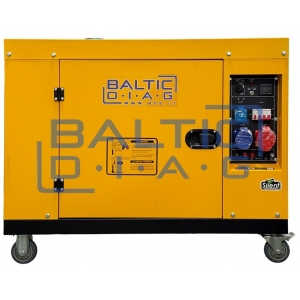

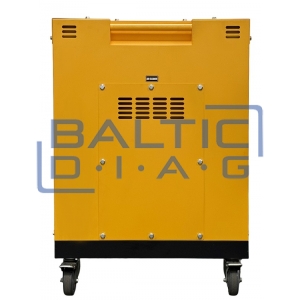

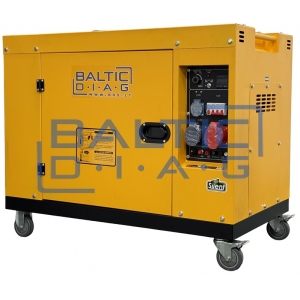

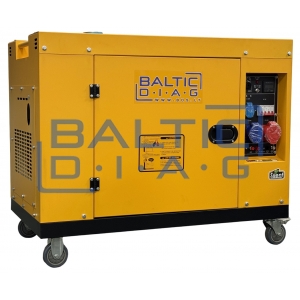

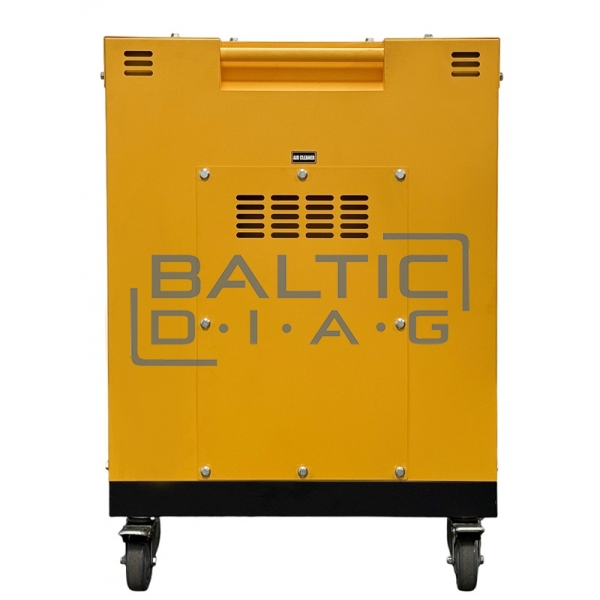

Mobile diesel generator BD12500SE, 9.5 kW

Mobile Diesel Generator BD12500SE, 9.5 kW

Functions:

• Electronic start system
• Selectable 230 V or 400 V output
• Digital information display
• Preheating function for cold weather
• Compatible with ATS automatic transfer switch
• Rubber wheels for easy transport
• Built-in automatic circuit breakers
• High-quality synchronous generator with AVR system
• Uses 10W/30SAE engine oil

Technical specifications:

• Maximum output (stand-by): 10 kW / 12.5 kVA
• Continuous output (prime): 9.5 kW / 11.9 kVA
• Voltage: 230 / 400 V
• Frequency: 50 Hz
• Number of phases: 3 phases (selectable)
• AVR voltage regulation accuracy: ± 0.5%
• DC output: 12 V / 8.3 A
• Noise level (at 7 m): 70–73 dB
• Cooling system: air-cooled
• Number of cylinders: 1
• Cycle: 4-stroke
• Engine speed: 3000 rpm
• Engine model: 1103F
• Displacement: 734 cm³
• Piston diameter and stroke: 103 x 88 mm
• Fuel consumption at 100% load: 2.66 l/h
• Fuel consumption at 75% load: 1.988 l/h
• Fuel consumption at 50% load: 1.33 l/h
• Fuel tank capacity: 30 l
• Operating time: 9.7 h
• Oil capacity: 1.95 l
• Oil type: 10W/30SAE
• Operating temperature range: –15 °C to +40 °C
• Battery capacity: 36 Ah

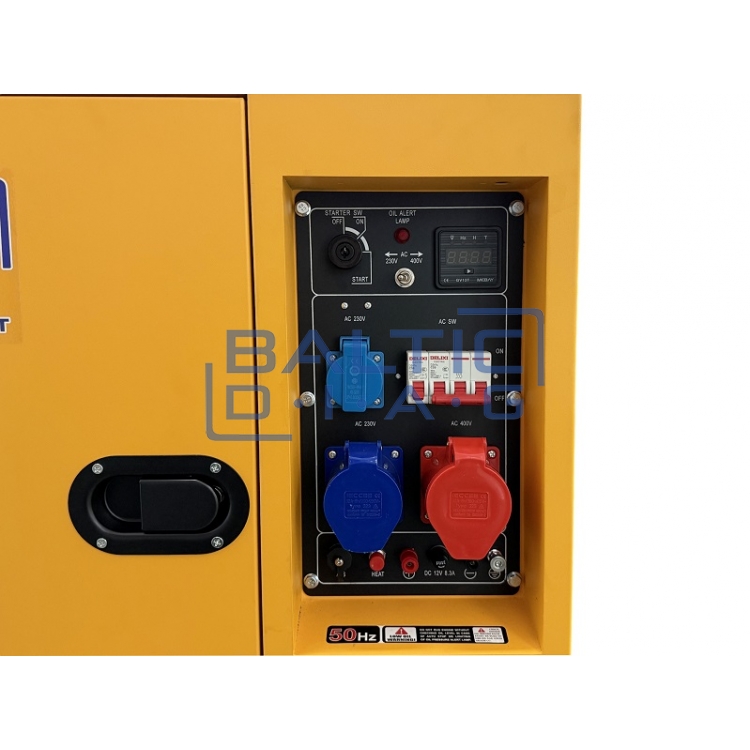

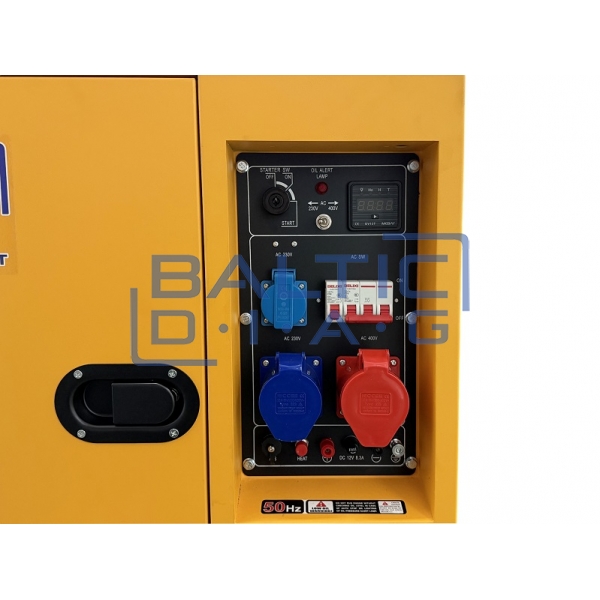

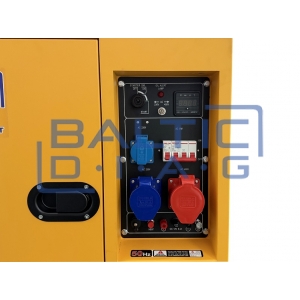

• Power output sockets: 2 pcs
• Protection class: IP23
• Automatic circuit breakers: 1 phase – 50 A, 3 phases – 16 A
• Package dimensions: 1115 x 650 x 930 mm
• Weight: 228 kg

Scope of delivery:

• Basic maintenance tools
• Power plugs x 2 pcs
• Starting keys x 2 pcs
• User manual
• Generator wheels x 4 pcs
