Mobile 4-column cabled lift for heavy-duty vehicles Stertil-Koni ST1085

Mobile 4-Column Cabled Lift for Heavy-Duty Vehicles Stertil-Koni ST1085

Country of origin: Netherlands, warranty period – 24 months

Version ST1085 FSA (6 columns), cabled version price: 49999.00 EUR including VAT

Version ST1085 RSA (4 columns), cabled version with adjustable wheel clamp: 35999.00 EUR including VAT

Version ST1085 RSA 6 (6 columns), cabled version with adjustable wheel clamp: 53999.00 EUR including VAT

Version ST1085 FWA 4 (4 columns), wireless version price: 37999.00 EUR including VAT

Version ST1085 FWA 6 (6 columns), wireless version price: 54999.00 EUR including VAT

Version ST1085 FWA RWA 4 (4 columns), wireless version with adjustable wheel clamp: 38999.00 EUR including VAT

Version ST1085 FWA RWA 6 (6 columns), wireless version with adjustable wheel clamp: 56999.00 EUR including VAT

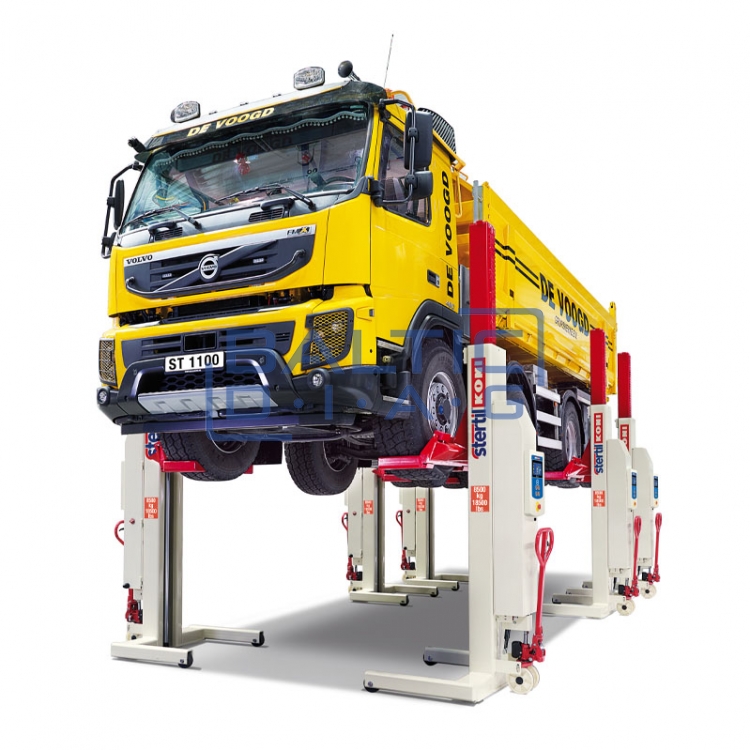

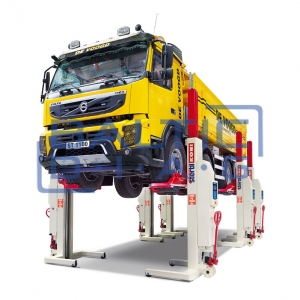

The Stertil-Koni ST1085 is a powerful mobile column lift designed for lifting heavy-duty commercial vehicles such as buses, trucks, agricultural machinery, and even special-purpose vehicles like aircraft. Each column has a lifting capacity of up to 8,500 kg, making this model ideal for extreme-load operations. With adjustable forks, a smart control system, and reliable hydraulic technology, the ST1085 ensures maximum performance and safety even in the most demanding workshop environments.

Features:

• Adjustable forks suitable for different vehicle sizes
• eBright – touch-sensitive smart control system installed in all models
• Available in both wireless (FWA) and cabled (FSA) control versions
• Easy operation via interactive display
• Adjustable lowering speed for precise positioning of components beneath the vehicle
• Wireless models include deep-cycle batteries that only need recharging every two weeks
• Wireless charging via a 230 V wall socket
• Cabled versions operate on a standard 400 V power supply
• Possibility to connect up to 32 columns in a single configuration
• Extra-durable drive-over cables with industrial-grade plugs – for cabled versions
• Retractable wheels reduce surface pressure by a factor of 10 – minimizing floor damage
• Hydraulic pallet truck-style system with patented overload protection
• Reliable hydraulic technology with reduced friction – extended service life
• Manual lowering function in the event of power failure
• Maximum protection of the cylinder and seals against damage
• Thorough factory testing before delivery to the customer

Technical Specifications:

• Model: ST1085
• Lifting capacity: 8,500 kg (per column)
• Fork type: Adjustable
• Fork length: 350 mm
• Fork width: 240–560 mm

Adjustable Forks

• Allow adaptation of lifting points to suit different vehicle sizes, increasing work flexibility and safety.

eBright Smart Control System

• Touch-sensitive screen enables easy operation of the lift, real-time system monitoring, and precise control of lifting and lowering.

Retractable Wheels

• Facilitate easy relocation of the lift within the workshop and reduce the risk of floor damage by lowering pressure in small contact areas.

Reliable Hydraulic Technology

• Ensures smooth and long-lasting lift performance with minimal maintenance, while providing maximum protection from wear or damage.
