Mobile 4-column cabled lift for heavy-duty vehicles Stertil-Koni ST1075

Mobile 4-Column Cabled Lift for Heavy-Duty Vehicles Stertil-Koni ST1075

Country of origin: Netherlands, warranty period – 24 months

Version ST1075 FSA 6 columns, cabled version option price: 47,999.00 EUR including VAT.

Version ST1075 FWA 4 columns, wireless version option price: 36,999.00 EUR including VAT.

Version ST1075 FWA 6 columns, wireless version option price: 52,999.00 EUR including VAT.

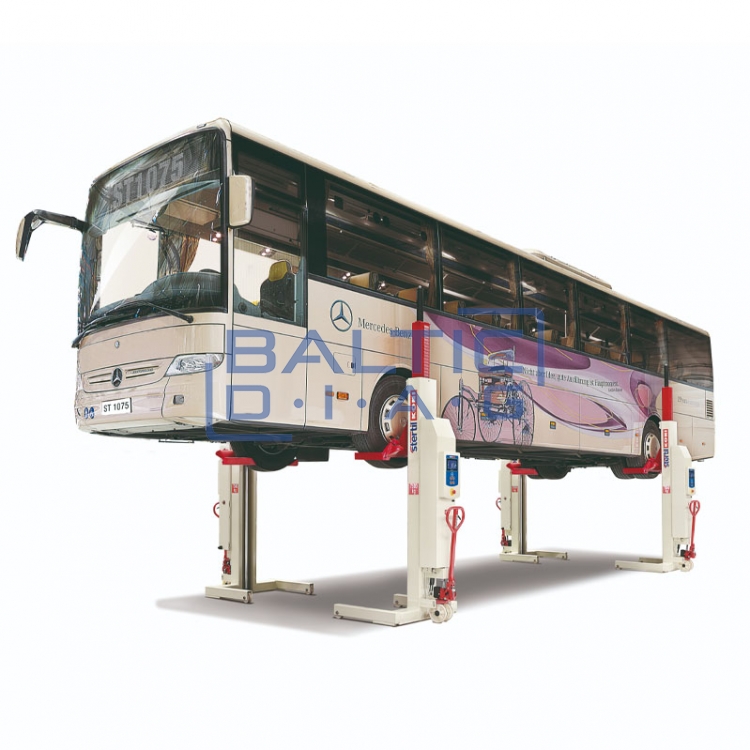

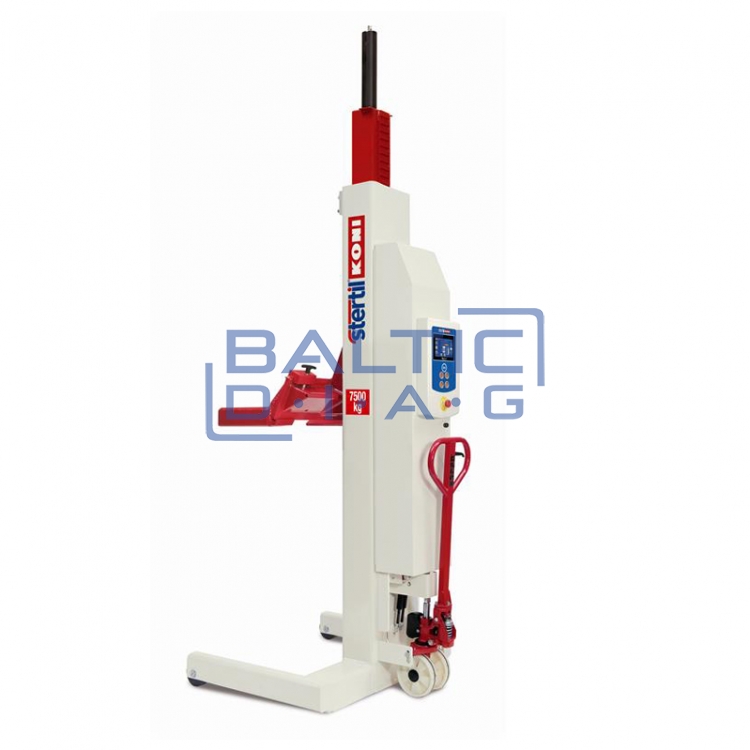

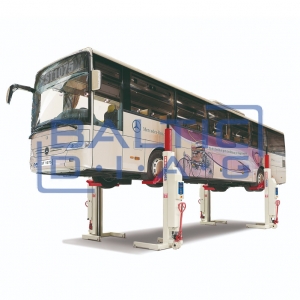

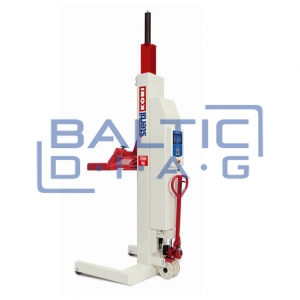

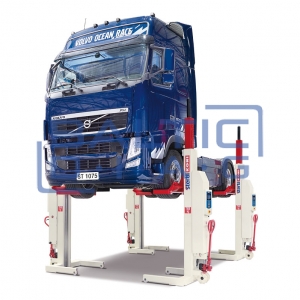

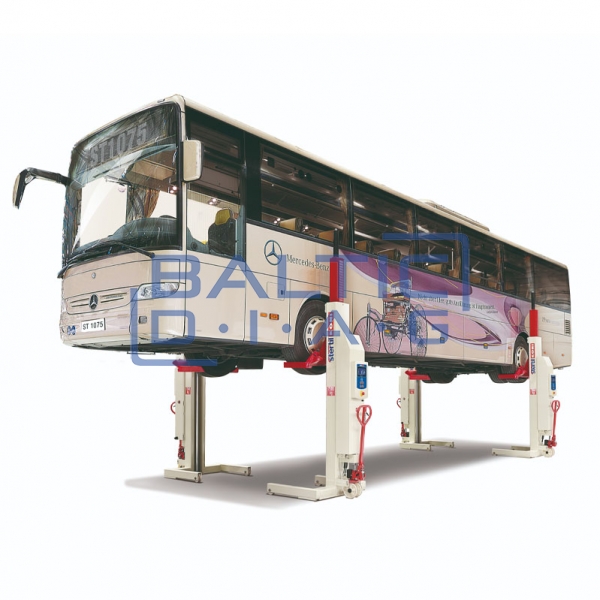

The Stertil-Koni ST1075 is a high-end mobile column lift specifically designed for lifting heavy-duty commercial vehicles such as buses, trucks, agricultural machinery, and even aircraft. Each column has a lifting capacity of up to 7,500 kg, and the smart eBright control system allows for precise and safe control of the lifting process. Durable wheels, retractable mechanisms, and patented overload protection ensure easy maneuverability and long-term operation, even in intensive-use workshops.

Features:

• Adjustable forks suitable for different types of vehicles
• eBright – intelligent touch-sensitive control system installed in all models
• Available in both wireless (FWA) and cabled (FSA) control versions
• Simple lift control via interactive screen
• Adjustable lowering speed for precise positioning of components under the vehicle
• Wireless models include deep-cycle batteries that only need to be recharged every two weeks
• Wireless charging via 230 V wall socket
• Cabled versions operate on standard 400 V power supply
• Possibility to connect up to 32 columns in a single configuration
• Extra durable drive-over cables with industrial-grade plugs available for cabled versions
• Retractable wheels reduce floor pressure by a factor of 10 – minimizing floor damage
• Hydraulic pallet truck-style system with patented overload protection
• Reliable hydraulic technology with reduced friction – longer service life
• Manual lowering in case of power outage
• Maximum protection of the cylinder and seals against damage
• Thorough factory testing before delivery to the customer

Technical Specifications:

• Model: ST1075
• Lifting capacity: 7,500 kg (per column)
• Fork type: Adjustable
• Fork length: 350 mm
• Fork width: 240–560 mm

Adjustable Forks

• Allow the adaptation of lifting points to suit different vehicle sizes, increasing operational flexibility and safety.

eBright Smart Control System

• Touch-sensitive screen for easy operation of the lift, real-time monitoring of system status, and precise control of lifting and lowering functions.

Retractable Wheels

• Enable easy mobility of the lift within the workshop and reduce the risk of floor damage by lowering pressure in concentrated areas.

Reliable Hydraulic Technology

• Ensures smooth and long-lasting lift performance with minimal maintenance, while offering maximum protection against wear or mechanical damage.
