Mobile 4-column cabled lift for heavy-duty vehicles ST1100 Stertil-Koni

Mobile 4-Column Cabled Lift for Heavy-Duty Vehicles ST1100 Stertil-Koni

Country of origin: Netherlands, warranty period – 24 months

Version ST1100 FSA (6 columns), cabled version price: 50999.00 EUR including VAT

Version ST1100 FWA 4 (4 columns), wireless version price: 41999.00 EUR including VAT

Version ST1100 FWA4 (6 columns), wireless version price: 55999.00 EUR including VAT

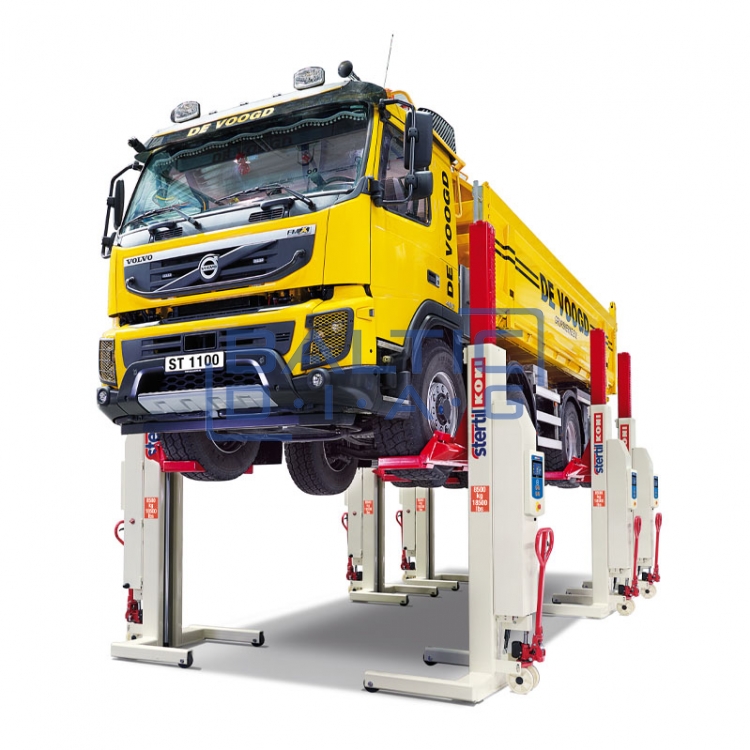

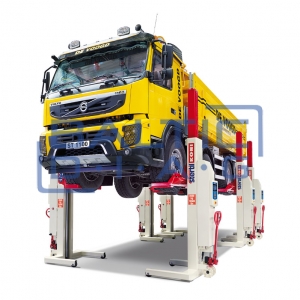

The Stertil-Koni ST1100 is a high-end mobile column lift, specifically designed for lifting extremely heavy vehicles and specialized equipment, including military and industrial machinery. Each column has an impressive lifting capacity of 10,000 kg, making this model ideal for extreme-load applications. The lifts are equipped with the advanced eBright control system and are available in both wireless (FWA) and cabled (FSA) versions, allowing the connection of up to 32 columns in a single configuration.

Features:

• Suitable for both wireless and cabled control versions
• eBright smart touch-sensitive control system, operable even when wearing gloves
• Possibility to connect up to 32 columns in a single system
• Adjustable lowering speed – ideal for precise positioning of undercarriage components
• Synthetic wheels and a hydraulic pallet-truck-style mechanism allow for easy repositioning
• Retractable wheels reduce the risk of floor damage by decreasing surface pressure by a factor of 10
• Wireless models require charging only once every two weeks (via a 230 V wall socket)
• Cabled models operate on a 400 V power supply (other voltages available)
• Extra durable drive-over cables and industrial-grade plugs (for cabled versions)
• Reliable hydraulic technology with reduced friction – ensuring long service life
• Manual lowering in case of a power outage
• Maximum protection of the cylinder and seals against damage
• Thorough factory testing before delivery to the customer

Technical Specifications:

• Model: ST1100
• Lifting capacity: 10,000 kg (per column)
• Fork type: Adjustable
• Fork length: 300 mm
• Fork width: 240–560 mm

Adjustable Forks

• Allow adaptation of lifting points to suit different vehicle sizes, increasing flexibility and safety during operation.

eBright Smart Control System

• Touch-sensitive screen for intuitive control of the lift, real-time monitoring of lift status, and precise management of the lifting or lowering process.

Retractable Wheels

• Facilitate easy movement of the lift within the workshop and reduce the risk of floor damage by minimizing concentrated pressure.

Reliable Hydraulic Technology

• Ensures smooth and long-lasting lift operation with minimal maintenance while providing maximum protection against wear and damage.
