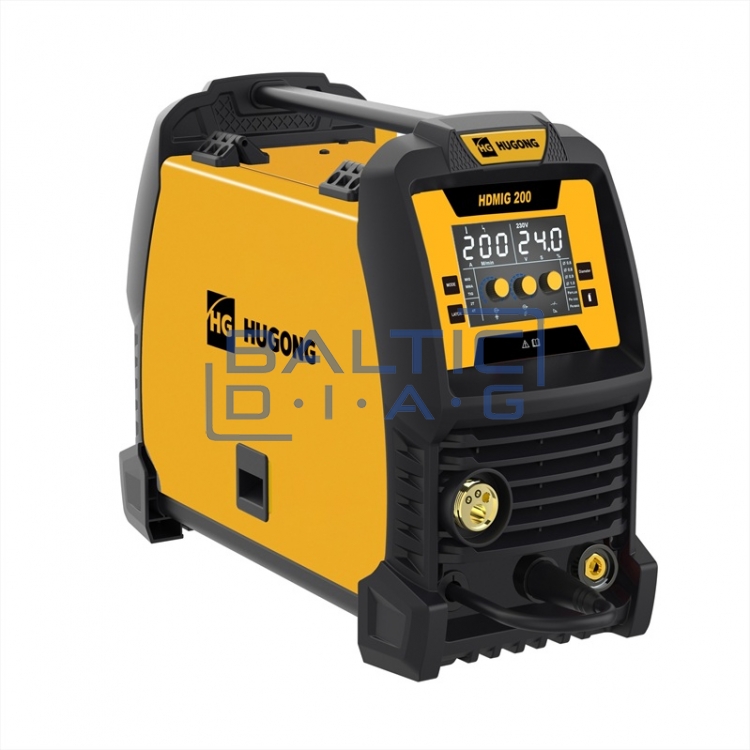

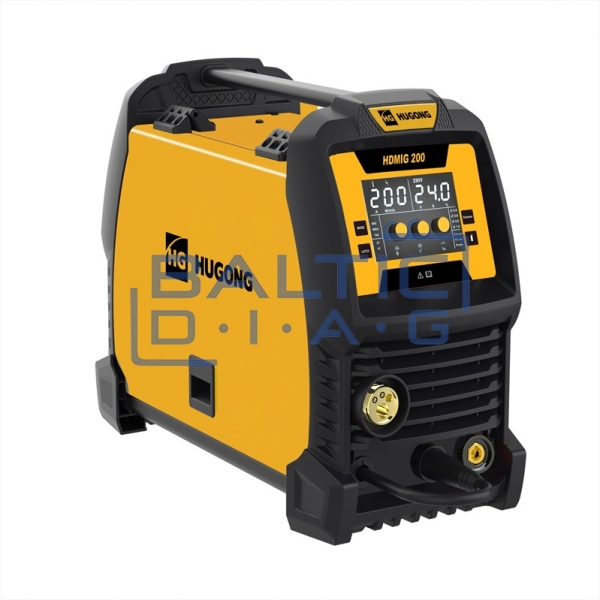

MIG welding machine Hugong HDMIG200W 200A

MIG Welding Machine Hugong HDMIG200W 200A

Country of origin: Netherlands, warranty period – 24 months

The Hugong HDMIG200W is a compact and powerful 3-in-1 inverter welding machine designed for welders seeking versatility, precision, and user-friendly control in one unit. It supports MIG/MAG, MMA (electrode), and Lift-TIG welding. Thanks to IGBT waveform technology and digital control, it allows precise adjustment of wire speed, voltage, and arc characteristics. The machine is suitable for welding steel, stainless steel, aluminum, and flux-cored wire.

Features:

• 3-in-1: MIG/MAG, MMA, and Lift-TIG – multiple welding methods in one compact device
• HD LED display with digital waveform control – clear view of settings and stable arc control
• Infinitely adjustable wire speed, voltage, and arc characteristics – complete control of the welding process
• Impact-resistant ABS housing – durable and resistant to shocks, dirt, and moisture

Technical Specifications:

• Power supply: 230V – single phase
• Frequency: 50/60 Hz
• Open-circuit voltage: 65 V
• Input power: 8.28 kVA
• Nominal input current: 36 A
• Duty cycle @20 °C: 40% – 200 A
• Duty cycle @40 °C: 20% – 200 A
• Welding current range:
• MIG: 20–175 A
• MMA: 30–170 A
• TIG: 15–200 A
• Protection class: IP21S

Product Dimensions:

• Length: 548 mm
• Width: 268 mm
• Height: 418 mm
• Weight: 15.0 kg

Packaging Dimensions:

• Length: 549 mm
• Width: 268 mm
• Height: 418 mm
• Weight: 19.20 kg

Included in the Package:

• MIG torch EP1500 – 3 m
• Ground clamp with 3 m cable (16 mm², 35–70 quick connector)
• Air hose – 4 m with air connection
• Wire spools: 0.8–1.0 mm (solid wire) – 2 pcs
• Contact tips: 0.6 mm, 0.9 mm, 1.0 mm
• Wire clamp 10–16
