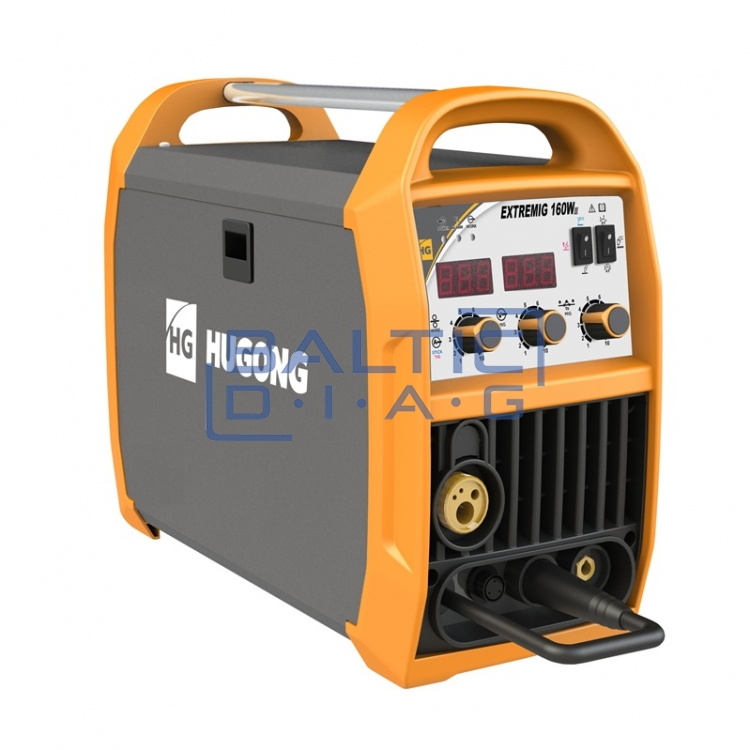

MIG welding machine Hugong EXTREMEMIG160 160A

MIG Welding Machine Hugong EXTREMEMIG160 160A

Country of origin: Netherlands, warranty period – 24 months

The Hugong EXTREMEMIG160 is a compact and versatile 3-in-1 inverter welding machine suitable for MIG/MAG, MMA (electrode), and Lift-TIG welding. Thanks to IGBT technology and its lightweight housing, it is ideal for mobile use both in workshops and outdoor environments. The digital display allows precise monitoring of current and voltage settings, while the additional spot welding function with adjustable timer increases its functionality. This machine is perfect for welding steel, stainless steel, aluminum, and flux-cored wire.

Features:

• 3-in-1: MIG/MAG, MMA, and Lift-TIG – flexible solution for a wide range of welding tasks
• Spot welding function with adjustable timer – ideal for thin sheet metal and repetitive welds
• Infinitely variable adjustment of wire speed, voltage, and arc characteristic – full process control
• Impact-resistant ABS housing – protection against dust, moisture, and shocks during intensive use

Technical Specifications:

• Power supply: 230 V – single phase
• Frequency: 50/60 Hz
• Open-circuit voltage: 71 V
• Input power: 6.84 kVA
• Nominal input current: 28.5 A
• Duty cycle @20°C: 40% – 160 A
• Duty cycle @40°C: 20% – 160 A
• Welding current range:
• MIG: 30–160 A
• MMA: 30–130 A
• TIG: 20–160 A
• Protection class: IP21S

Product Dimensions:

• Length: 490 mm
• Width: 190 mm
• Height: 335 mm
• Weight: 10.5 kg

Packaging Dimensions:

• Length: 585 mm
• Width: 320 mm
• Height: 470 mm
• Weight: 12.00 kg

Included in the Package:

• MIG torch EP1500 – 3 meters
• Ground clamp with 3-meter cable (16 mm², quick connector)
• Gas hose – 4 meters with coupling
• Wire spools: 0.6 mm / 0.8 mm (solid wire)
• Contact tips: 0.6 mm, 0.9 mm, 1.0 mm
• Wire clamp 10–16
