MIG MAG welding machine 200A

MIG MAG welding machine 200A

Warranty: By registering your equipment at www.soldatech-welding.com, you can extend the warranty period up to 5 years.

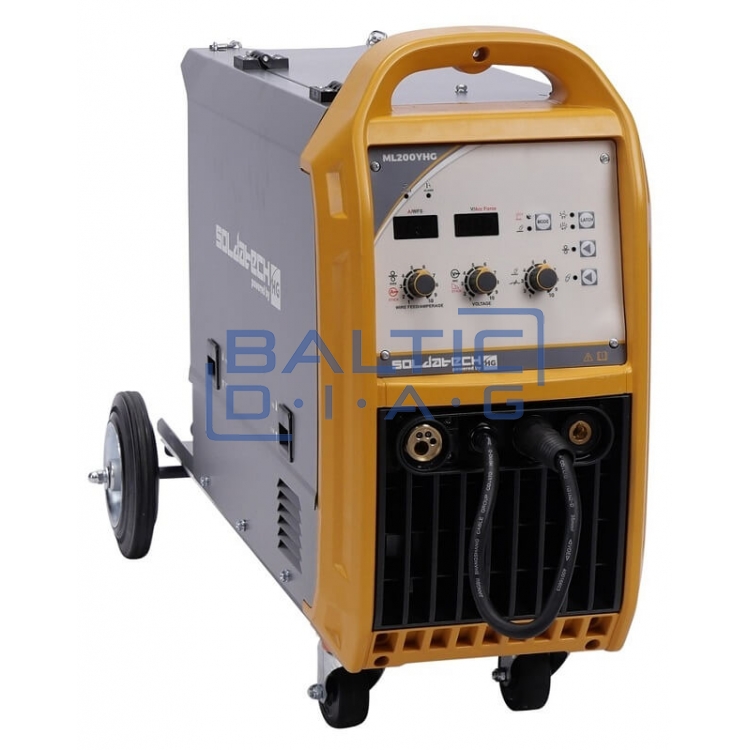

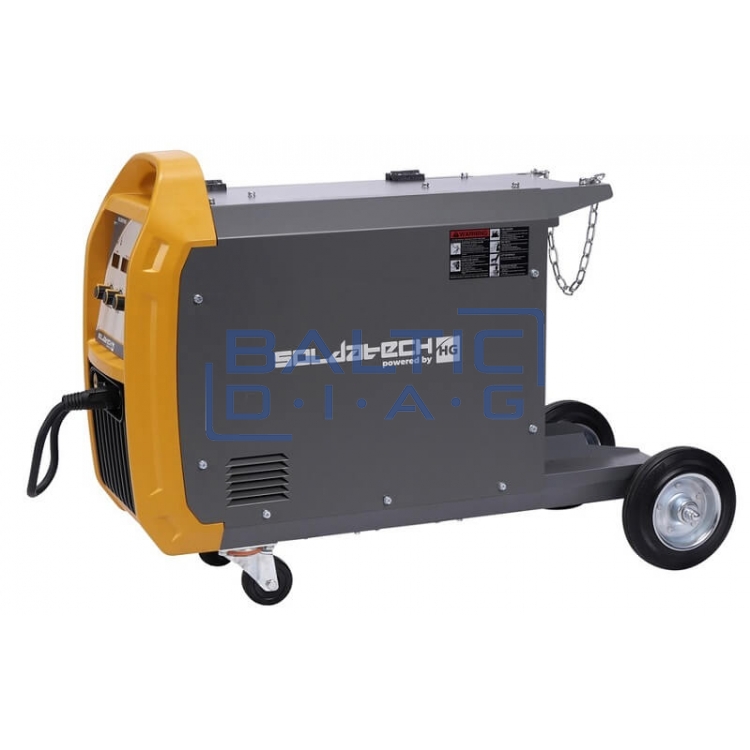

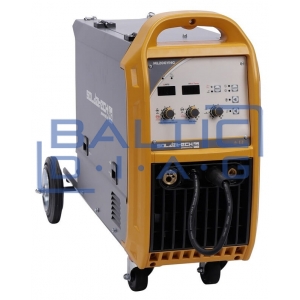

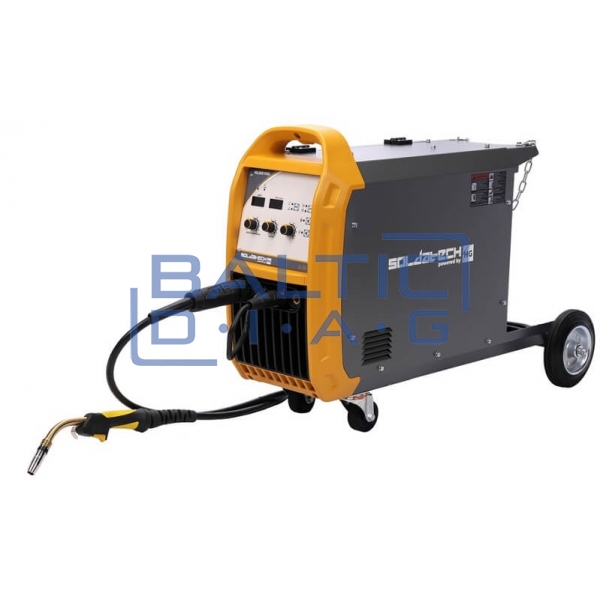

This HG MIG / MAG welding machine has a platform for attaching a gas cylinder. The machine makes it easy to perform a variety of welding processes, including MIG welding and electrode welding. Advanced IGBT inverter technology ensures that the ML200YHG operates with higher power and a very high duty cycle. The ML200YHG also has thermal protection as standard, which together with the built-in fan prevents overheating and ensures high-quality welding performance for a long time. The hot start/anti-stick feature rapidly increases the welding current to prevent the electrode from sticking to the workpiece during ARC welding. Ideal for welding stainless steel, carbon steel, low alloy steel and aluminum (pulse free).

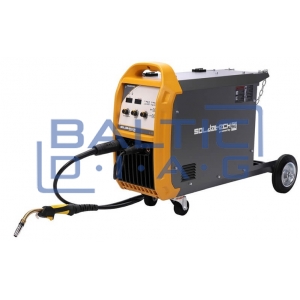

Standard equipment:

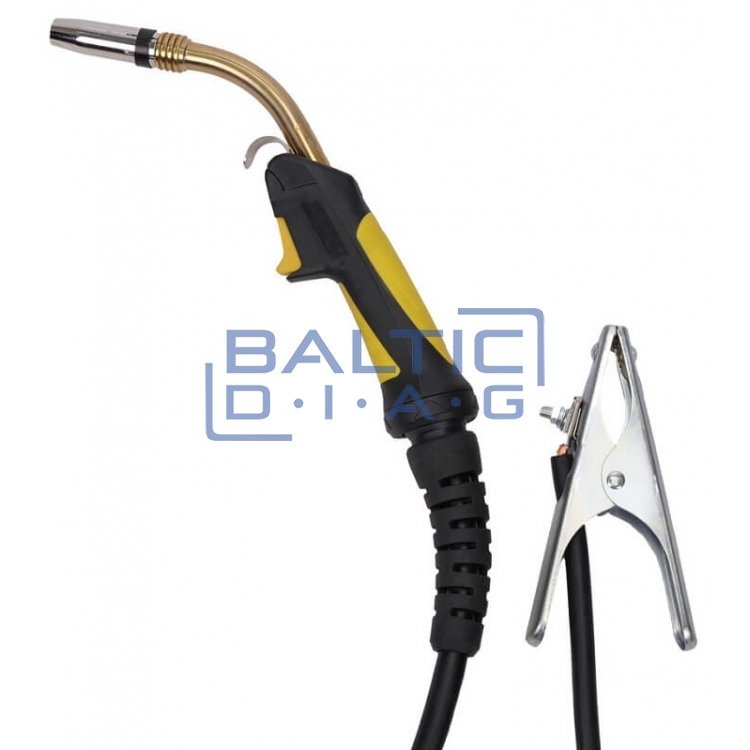

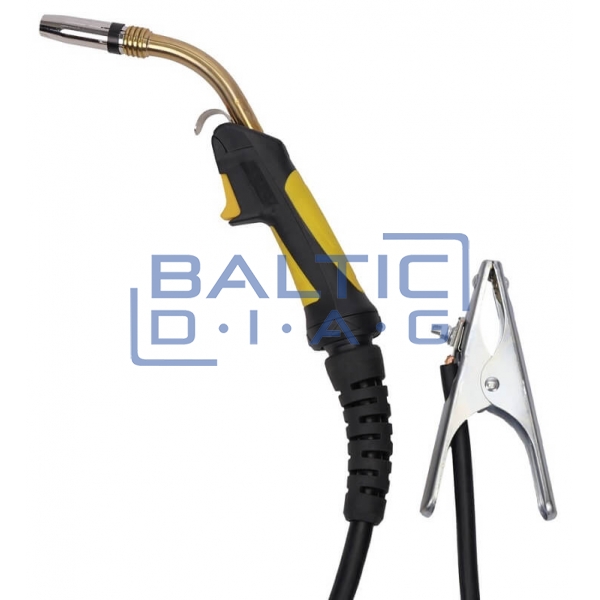

• MLT24M3 MIG torch with Euro connector 3 m cable
• Welding earth terminal with 3 m 25 mm² cable
• European 13mm Dinse couplings
• Gas line with quick connection 4 m
• 3-pin 32A plug with 3 m 3x4 mm² cable

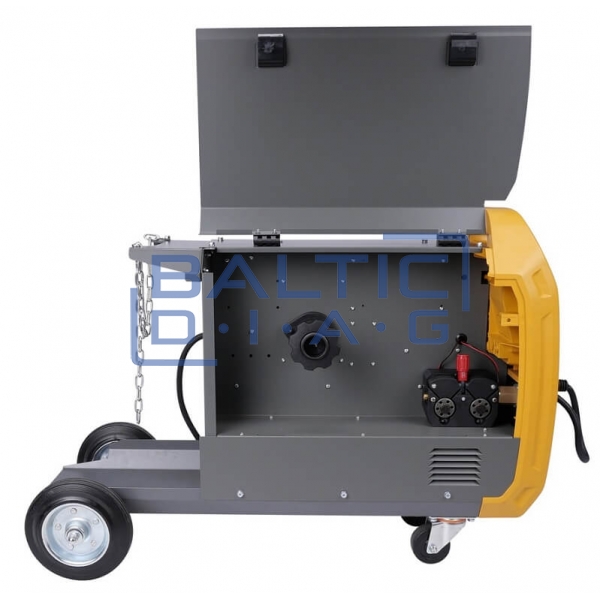

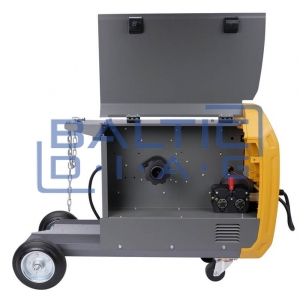

• 2x wire feed roll: 0.8 + 1.0

Technical specifications:

• Voltage = 230V - 1 phase
• Frequency = 50/60 Hz
• Circuit breaker = 16 A C-char
• Input power = 10 kVA
• No load voltage = 76V
• Duty cycle (at 20°C ambient temperature) = 100% - 200 A
• Duty cycle (at 40°C ambient temperature) = 60% - 200 A
• Welding current range MIG/MAG = 30 - 200 A
• Welding current range MMA = 20 - 200 A
• Weldable welding wire = 0.8 / 1.0 / 1.2 mm
• Protection class = IP21S
• Dimensions = 990 x 495 x 720 mm
• Weight = 44.5 kg
