MIG MAG synergic welding machine 350A

MIG MAG synergic welding machine 350A

Warranty: By registering your equipment at www.soldatech-welding.com, you can extend the warranty period up to 5 years.

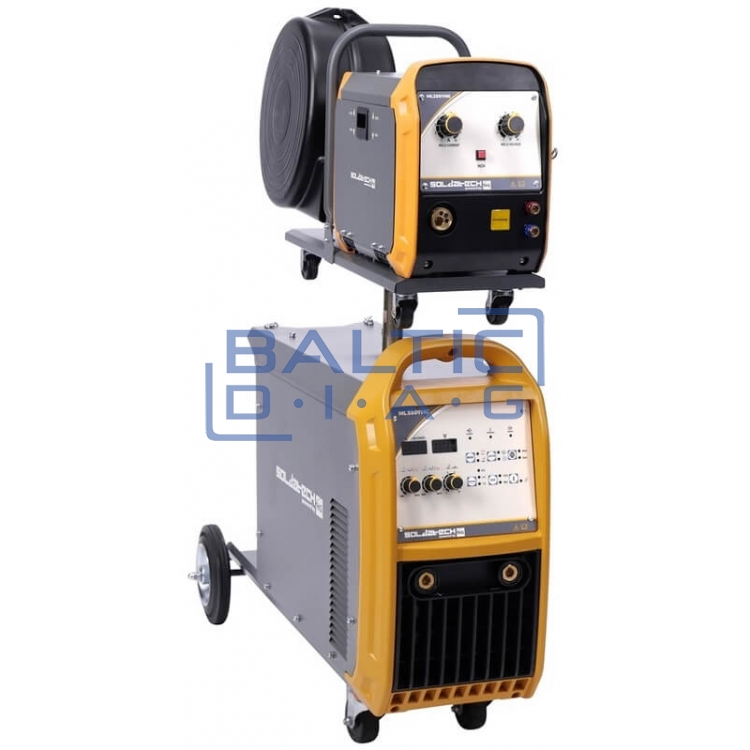

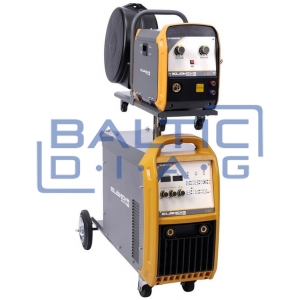

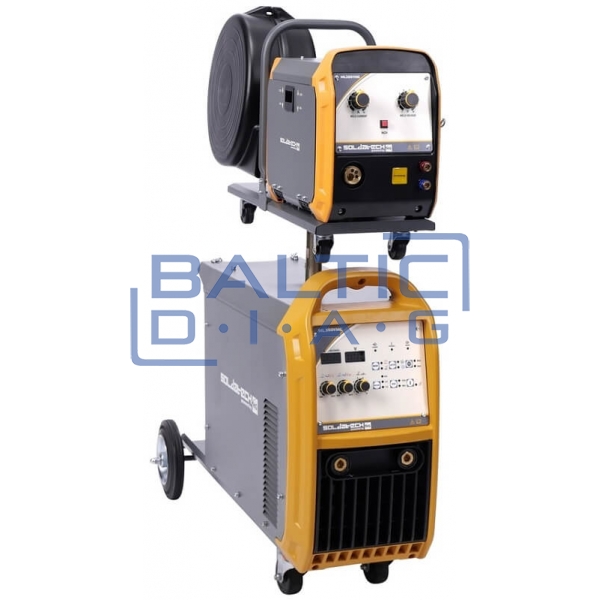

MIG/MAG 350A welding inverter / synergic converter / welding machine

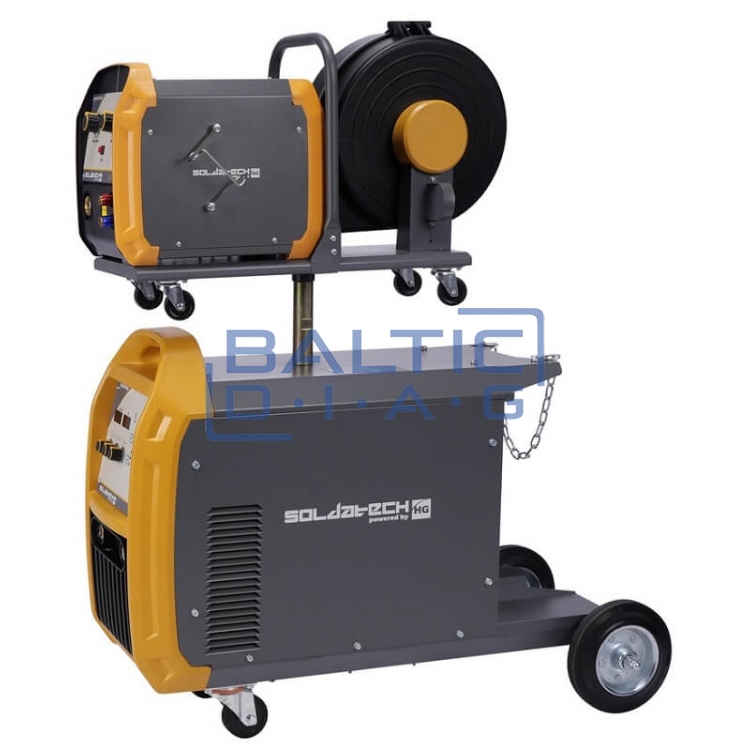

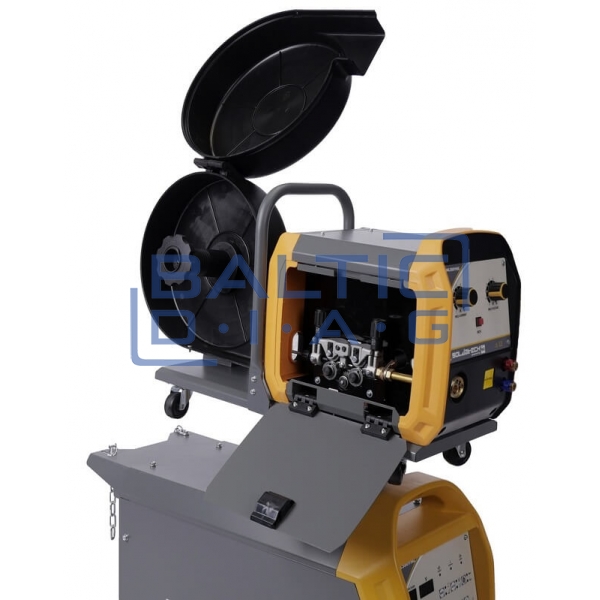

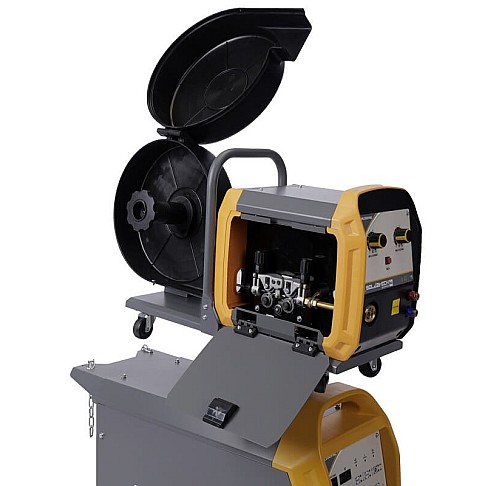

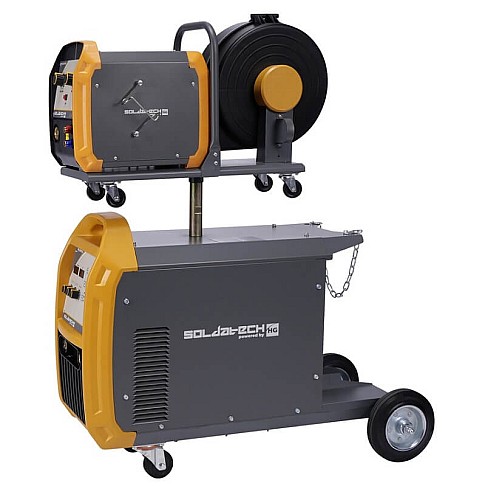

This HG MIG / MAG welding machine is equipped with a platform for attaching a gas cylinder. It also makes it easy to perform a variety of welding processes, including MIG welding and electrode welding. Advanced IGBT inverter technology ensures that the ML350YHG operates with higher power and a very high duty cycle. The ML350YHG also comes standard with thermal protection which, together with the built-in fan, prevents overheating and ensures high-quality welding performance for a long time. In addition, the mobile wire feeder is equipped with a control panel that allows easy adjustment of the welding voltage and amperage. The power source is also equipped with pre-programmed synergistic programs for welding various materials. The hot start/anti-stick feature rapidly increases the welding current to prevent the electrode from sticking to the workpiece during ARC welding. Ideal for welding stainless steel, carbon steel, low alloy steel and aluminum (pulse free).

Standard equipment:

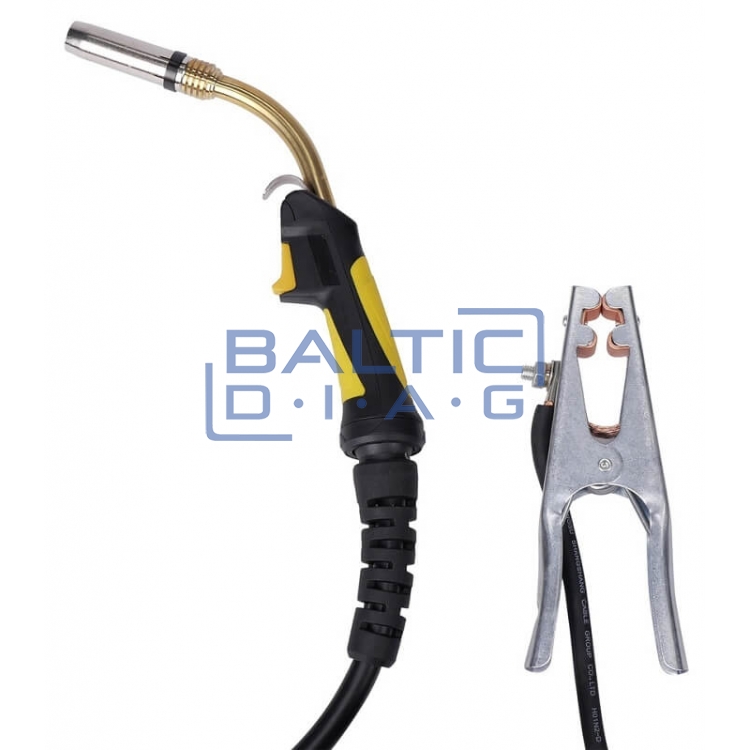

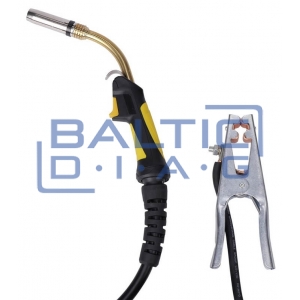

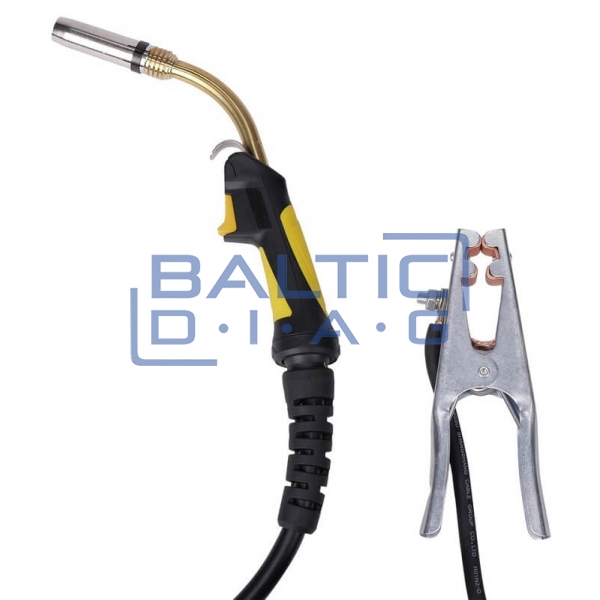

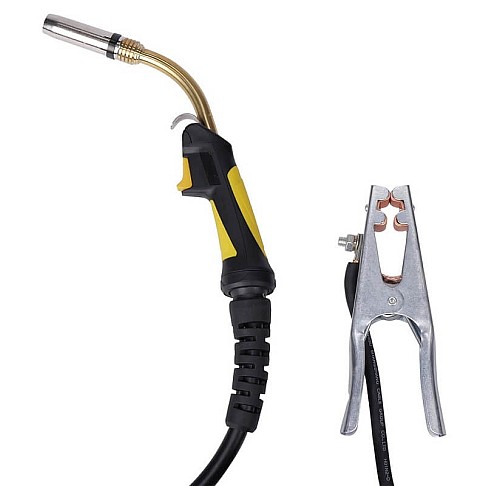

• Soldatech MLT36M4 MIG torch with Euro connector and 4m cable
• Welding earth terminal with 3 m 35 mm² cable
• European Dinse connectors 13 mm
• Gas line with quick connection 7 m

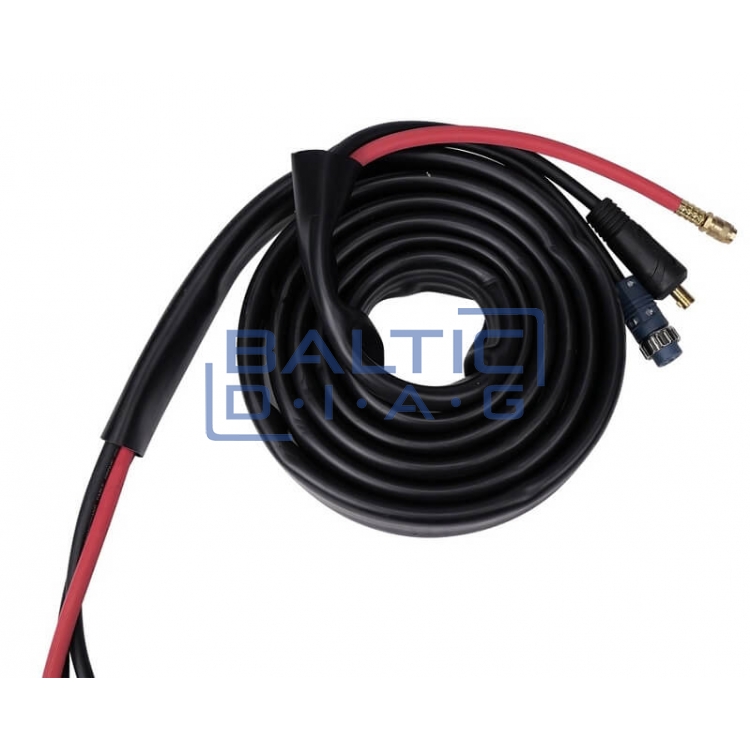

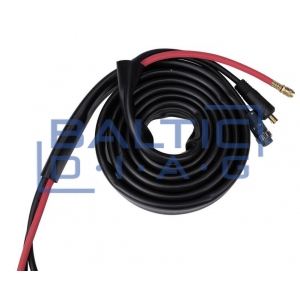

• Intermediate cable bundle gasket 5 m
• 5-pin 32A plug with 3.5 m 4x4 mm² cable
• 4x wire drive roll: 2x 0.8 + 1.0 and 2x 1.2 + 1.6

Technical specifications:

• Voltage = 400V - 3 phases
• Frequency = 50/60 Hz
• Circuit breaker = 32 A B-char
• Input power = 16.8 kVA
• No load voltage = 73V
• Duty cycle (at 20°C ambient temperature) = 100% - 350 A
• Duty cycle (at 40°C ambient temperature) = 60% - 350 A
• Welding current range MIG/MAG = 40 - 350 A
• Welding current range MMA = 40 - 350 A
• Weldable welding wire = 0.8 / 1.0 / 1.2 / 1.6 mm
• Protection class = IP21S
• Dimensions = 1000 x 420 x 1200 mm
• Weight = 69 kg
