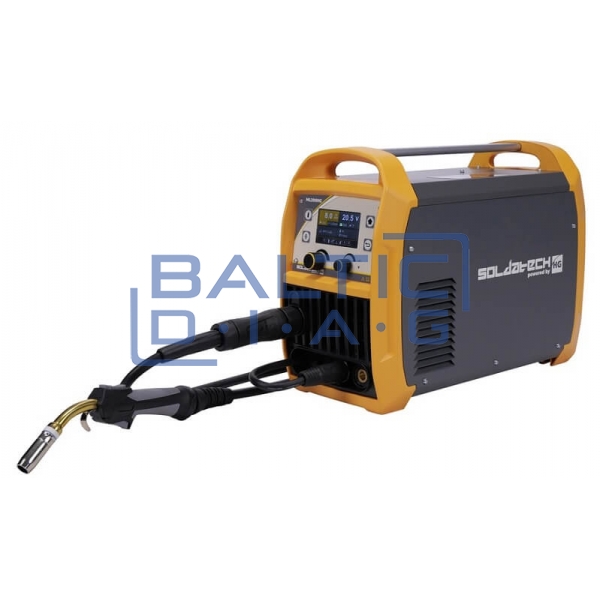

MIG MAG synergic welding machine 200A

MIG MAG synergic welding machine 200A

Warranty: By registering your equipment at www.soldatech-welding.com, you can extend the warranty period up to 5 years.

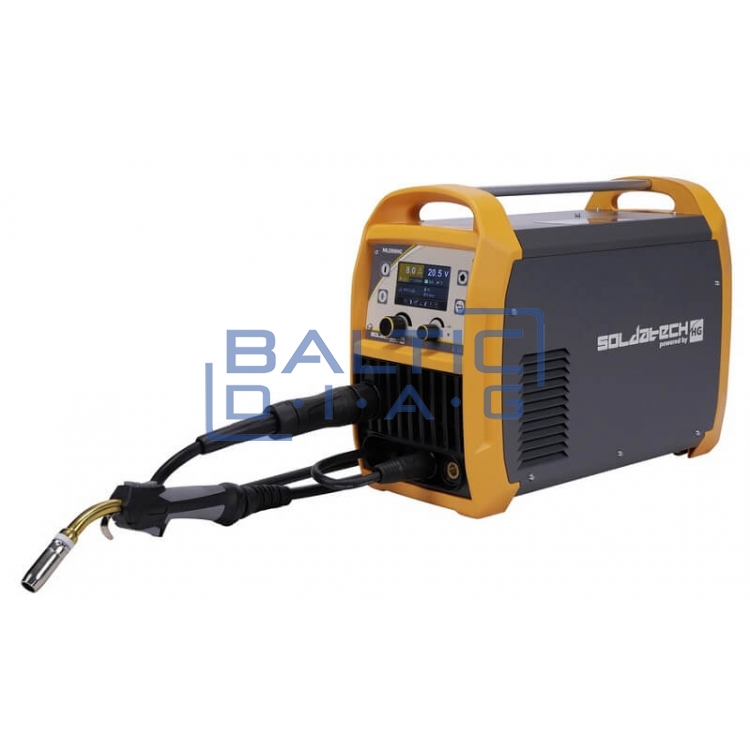

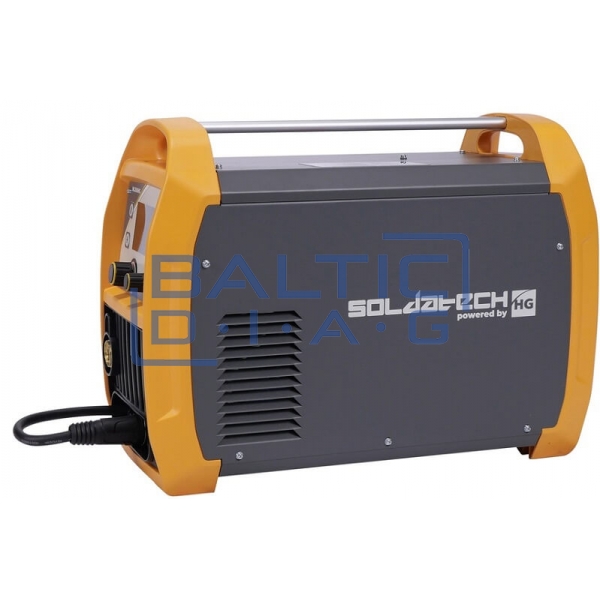

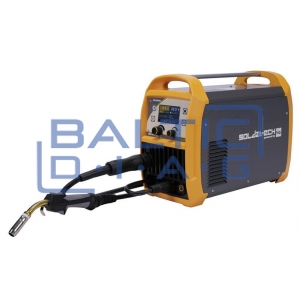

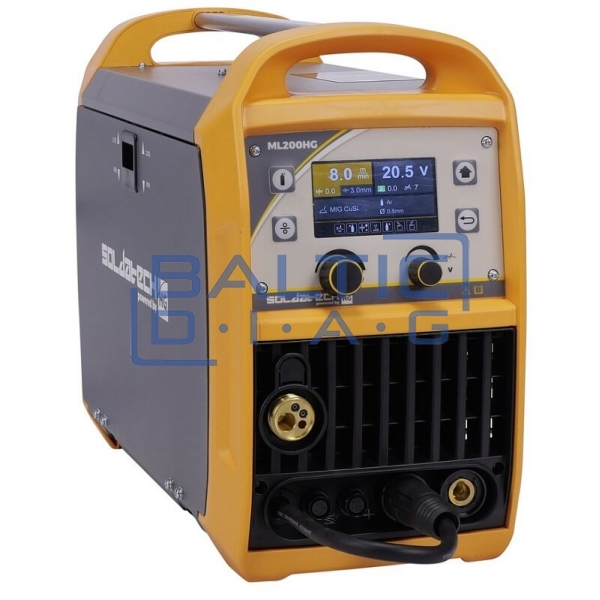

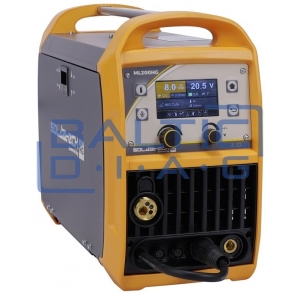

This welding machine is portable and allows you to easily perform a variety of welding processes, including MIG welding, Lift-TIG and electrode welding. The wire speed automatically adjusts to the set amperage, ensuring professional results. The transparent LCD display makes it easy to set up the ML200HG. The application of the liquid crystal display and the synergistic properties of the machine make welding a real pleasure for almost all materials without complicated settings. With this machine it is possible to solder with CuSi3, a copper-silicon alloy with a lower melting point than steel, which means that lower temperatures are applied to the material being soldered, thus ensuring less chance of deformation of (thin) plates. It is also possible to solder different materials together (e.g. aluminum and steel). The welding torch also features the latest torch control technology, making it very easy to adjust the welding machine remotely even while welding. Advanced IGBT inverter technology ensures that the ML200HG operates with higher power and a very high duty cycle. The ML200HG also features thermal protection as standard, which together with the built-in fan prevents overheating and ensures high-quality welding performance for a long time. The welding machine has a database that allows you to save 5 different programs with welding settings. The hot start/anti-stick function rapidly increases the welding current to prevent the electrode from sticking to the workpiece during ARC welding. Ideal for welding stainless steel, carbon steel, low alloy steel, copper and aluminum (MIG).

Standard equipment:

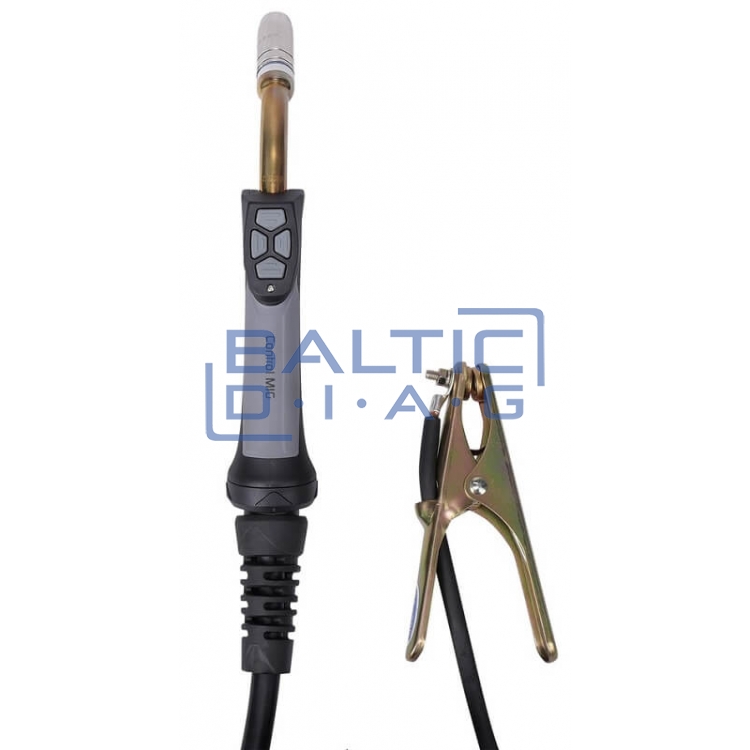

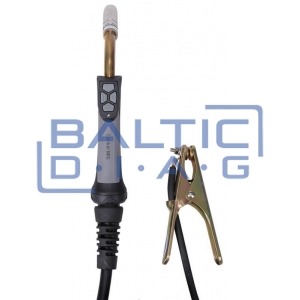

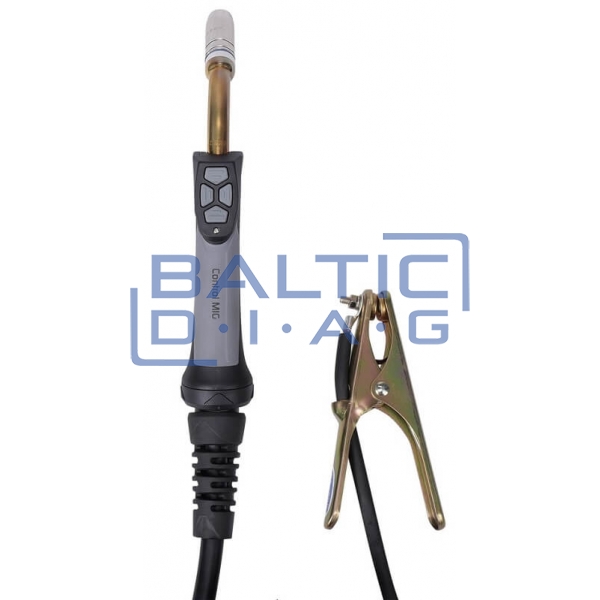

• Soldatech MLT25M3R remote control MIG torch with euro connector and 3m cable
• Twistlock electrode torch with 3 m 16 mm² cable
• Welding ground terminal with 2m 16mm² cable
• Neoprene power cable 2.5m 3x2.5mm²
• European Dinse connectors 13mm
• Gas line with quick connection 3m
• 2x Wire feed roll: 0.6 + 0.8 and 0.8 + 1.0

Technical specifications:

• Voltage = 230V - 1 phase
• Frequency = 50/60Hz
• Circuit breaker = 16A C-char
• Input power = 8.6kVA
• No load voltage = 69V
• Duty cycle (at 20°C ambient temperature) = 35% - 200A
• Duty cycle (at 40°C ambient temperature) = 20% - 200A
• Welding current range MIG/MAG = 40 - 200A
• Welding current range MMA = 10 - 180A
• Raising the welding current range TIG = 10 - 180A
• Weldable welding wire = 0.6 / 0.8 / 1.0 / 1.2 mm
• Protection class = IP21S
• Dimensions = 550 x 245 x 405 mm
• Weight = 19 kg
