MIG/MAG pulse welding machine POCKET PULSE CEBORA

MIG/MAG pulse welding machine POCKET PULSE CEBORA

Country of origin: Italy, warranty period – 24 months

Optional accessories for this device are listed below!

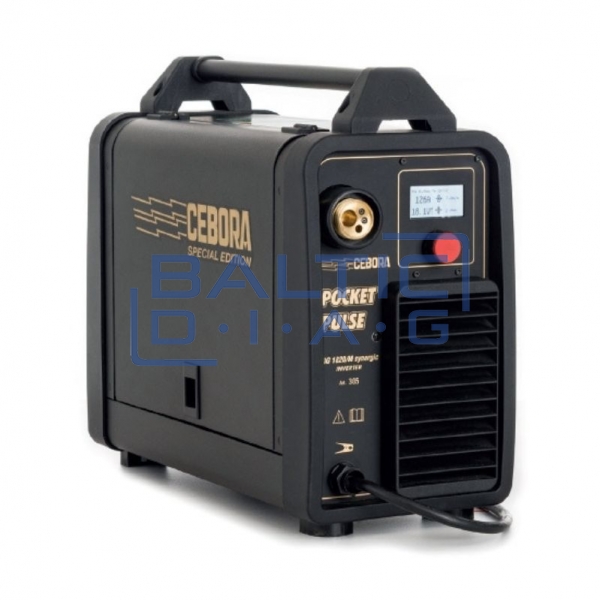

POCKET PULSE is a single-phase pulse MIG/MAG welding machine with synergic control, designed for working with various types of wire: steel, stainless steel, aluminum, CuSi3%, and flux-cored wire. The device supports both PULSE and SHORT processes and features a compact body and user-friendly controls. With its wide range of functions and LCD display, this model is ideal for light metal fabrication, agricultural tasks, bodywork repair, and everyday workshop use.

Functions:

• 2-roller wire feed mechanism (Ø 30 mm)
• Ground cable with clamp (3 m – 16 mm²)
• 37 synergic programs for different wire types (steel, stainless steel, aluminum, CuSi3%, flux)
• LCD display shows gas type, current, voltage, wire speed, and material thickness
• Control panel allows adjustment of many parameters: arc length, 2/4 stroke, spot time, pause time, inductance, burn back, etc.
• Option to choose between SHORT or PULSE process
• Three automatic functions for optimal aluminum welding
• Can be powered by generators (min. 6 kVA)

Technical specifications:

• Power supply: 230 V, 50/60 Hz, +15 % / -20 %
• Fuse: 16 A, slow-blow
• Power: 5.5 kVA 20%, 3.7 kVA 60%, 2.7 kVA 100%
• Current adjustment range: 20 – 185 A
• Duty cycle (10 min at 40 °C): 185 A 20%, 140 A 60%, 110 A 100%
• Regulation: electronic, stepless
• Wire types: 0.6 / 0.8 / 0.9 / 1.0 mm (steel), 0.9 mm (flux), 0.8 / 0.9 mm (stainless steel), 0.9 / 1.0 mm (aluminum), 0.8 / 0.9 mm (CuSi3%)
• Max. spool size: Ø 200 mm / 5 kg
• Protection class: IP23S
• Weight: 13.5 kg
• Dimensions (LxWxH): 196 x 458 x 380 mm

Available accessories:

• CEBORA torch
• MIG "Professional" torch
• Gas flowmeter with 2 pressure gauges
• Transport trolley
• 0.9 mm flux-cored wire spool
• Aluminum welding kit
