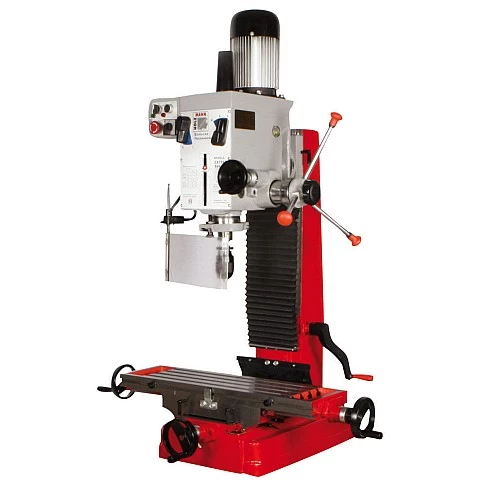

Metal milling machine Holzmann ZX7045

Metal milling machine Holzmann ZX7045

Manufacturer: Holzmann (Austria)

Features:

Milling head with 360° tilt range for corner drilling, corner milling

The cross table has 14mm t-nut guides to secure the components

Dropping the feather down through the three-spoke handwheel and precise milling thanks to the millimeter scale

Height-adjustable spindle guard with microswitch

Tapping function

Tool case

The stand is not included in the collection

Complete set: drill chuck 16 mm, reducing sleeve MT4/3, MT3/2, wedge, drill M12b

Technical data:

Motor power s6: 1500 W

Motor power s1: 1100 W

Power supply: 400V

Cable length: 2.5 m

Table size: 210x730 mm

Milling spindle sleeve: MK4 / MT4

Milling spindle speed min-1: 95-1600 (6)

Y axis of movement: 205 mm

X axis of movement: 490 mm

Max. distance from shaft to table: 435 mm

Max. milling steel: ø 32 mm

Max. milled other metal: ø 45 mm

Feather: 120

Max. milling diameter: 80 mm

Max. diameter of the end mill: 25 mm

Net weight: 270 kg

Gross weight: 305 kg
