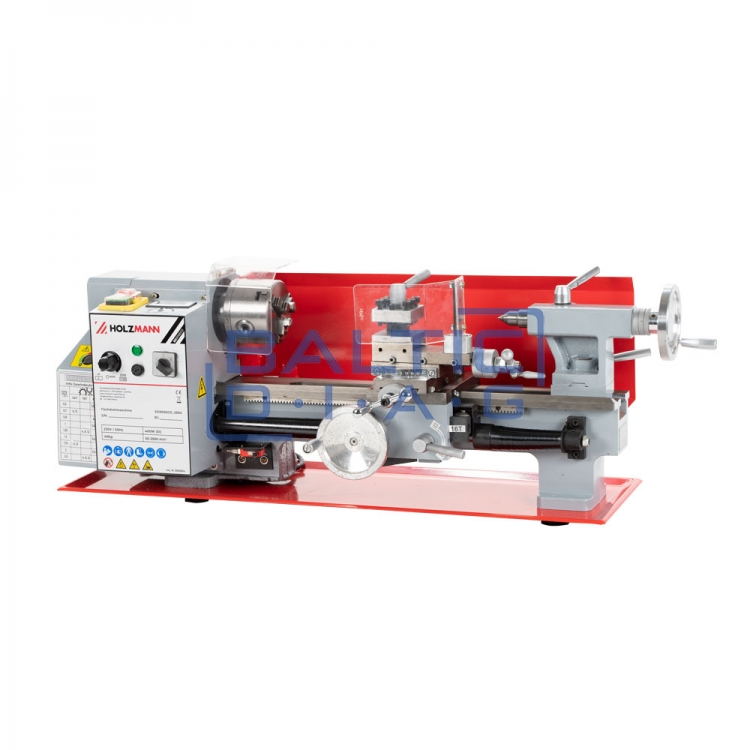

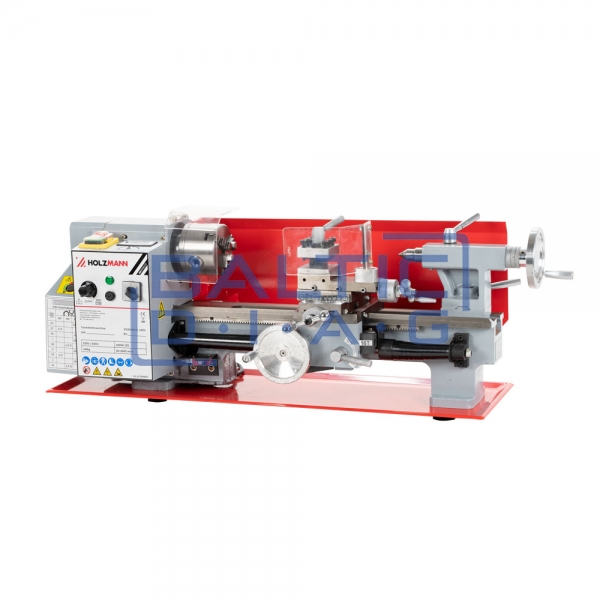

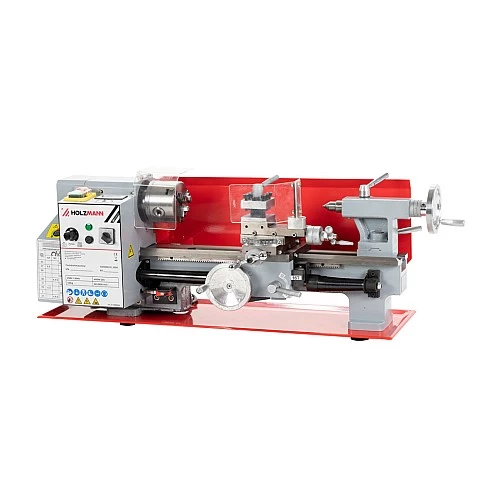

Metal lathe Holzmann ED300ECO

Metal lathe Holzmann ED300ECO

Manufacturer: Holzmann (Austria)

Features:

CW/CCW operation mode

Powerful motor with low voltage switch

3-piece chuck Ø 80 mm

Tailstock - can be adjusted for taper rotation

Smooth transmission of engine power ensures constant torque

Directional, conveniently adjustable via V-shaped axles

Infinitely adjustable rotation speed

Hardened and precisely ground prism guides for professional work

Maximum rotation accuracy

Complete with metal shift gears for exceptionally wide thread cutting range

Technical data:

Motor power s1: 400 W

Power supply: 230V 50Hz

Dimensions: 840 x 290 x 380 mm

Lathe width: 85mm

Distance between centers: 300 mm

Turning center height: 90 mm

Max. space above the lathe base: 180 mm

Max. rotation: 105 mm

Turning speed min-1: 50-2500

Shaft hole: 20 mm

Shaft taper: MK3/MT3

Tailstock taper: MK2/MT2

Turning stroke: 200 mm

Transverse feeding stroke: 70 mm

Compound turning stroke: 70 mm

Tailstock travel: 50mm

Thread range: 0.5-2.5 (9) mm/r

Max. holder cross-section: 10

Longitudinal feed: 0.009-0.04 mm/U (10)

Gross weight: 48 kg

Net weight: 40 kg
