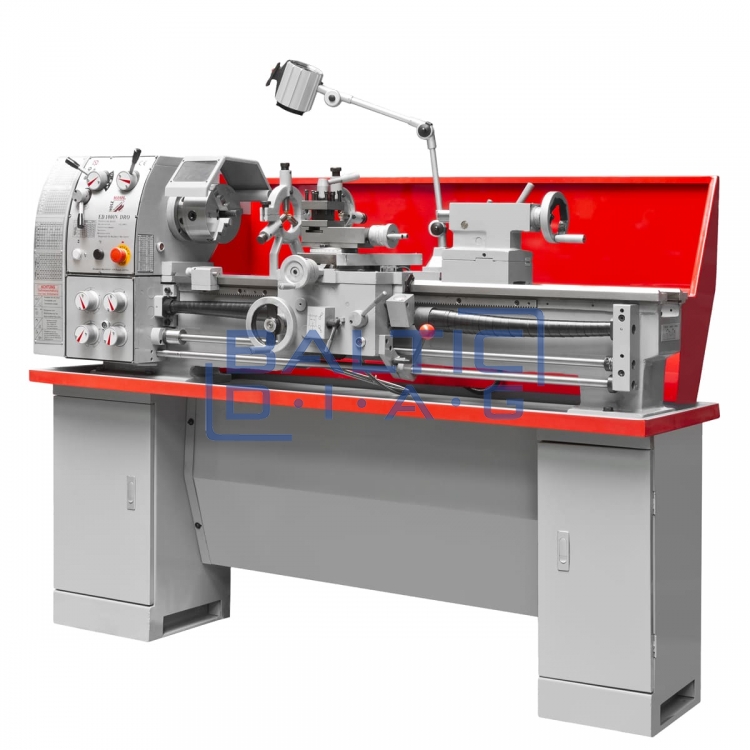

Metal lathe Holzmann ED1000N
Manufacturer: Holzmann (Austria)
Features:
Delivered without digital display
Ideal for locksmiths, workshops, factories and schools
Easy and quick adjustment of the rotation speed
Induction heated components
The removable bridge allows you to turn large workpieces
The hardened and ground main shaft ensures high running accuracy
The gear and pinion are lubricated with oil, which ensures the long life of the metal lathe
Lathe bar and guide screw are easily removed
All guides are conveniently adjustable through the V shape
4-way chuck that allows you to work with two different tools at the same time
Hardened and ground gears ensure smooth operation
Clutch, lamp and shaft cover are included in the package
CAMLOCK shaft D1-4, DIN 55029
Complete set: 3-piece chuck Ø160 mm, face plate, chuck guard, machine stand, chip guard, stable support, chip tray, 4-way tool post, gear change, 2 x support points MT3, thread dial, main tools, reducer MT5/ MT3, lamp
Technical data:
Motor power s6: 1500 W
Motor power s1: 1100 W
Power supply: 400V
Lathe width: 181 mm
Height of lathe: 260 mm
Longitudinal feed: 0.079-1.291
Cross feed: 0.017-0.276
Shaft bore: 38 mm
Shaft taper: MK5/MT5
Tailstock taper: MK3/MT3
Max. rotation on crossbar: 198 mm
Max. swing in gap: 450 mm
Turning speed min-1: 65-1810
Metric thread range mm/r: 0.4-7
Inch thread range: 4-60
Transverse feeding stroke: 160 mm
Compound turning stroke: 80 mm
Distance between centers: 1000 mm
Max. space above the lathe bed: 332 mm
Center height: 165 mm
Net weight: 530 kg
Gross weight: 572 kg
