Metal drilling machine Holzmann SB2516H 400V
Metal drilling machine Holzmann SB2516H 400V

Metal drilling machine Holzmann SB2516H 400V

  • SKU: BD96654
786.50 €

HOLZMANN HOLZMANN
Prices shown include tax
Add to Cart

Send Message

Description

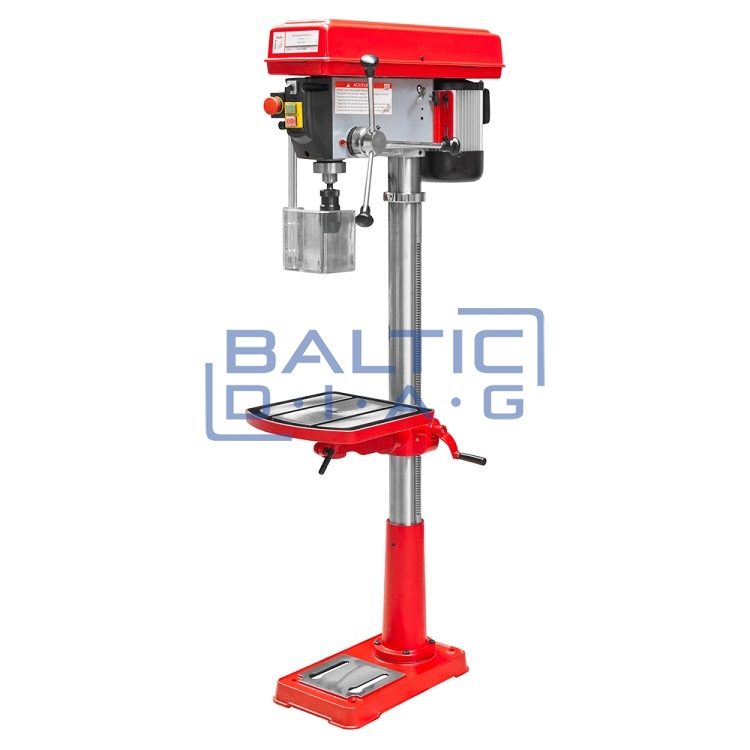

Metal drilling machine Holzmann SB2516H 400V

Manufacturer: Holzmann (Austria)

Features:

Solid, polished base

Aluminum motor according to IP54 standard

Resistant, strong and polished steel column

The table tilts from -45° to +45° and rotates 360° around the center of the table and the column

Shaft protective cover

Adjustable drilling depth adjustment with precise scale

Technical data:

Motor power s1: 1100 W

Voltage: 400V

Overall dimensions: 1635 x 356 x 780 mm

Table size: 356 x 356 mm

Max. height: 1635 mm

Max. drilling performance: 25 mm

Base: 485 x 290 mm

Shaft travel: 80 mm

Distance from the shaft to the base: 1220 mm

Max. distance from shaft to table: 725 mm

Drill shaft sleeve: MK3 / MT3

Drilling speed min-1: (16) 160-3000

Column diameter: 80 / 2.5 mm

Net weight: 79 kg

Gross weight: 81 kg
