Metal circular saw / cutting machine

Metal circular saw / cutting machine

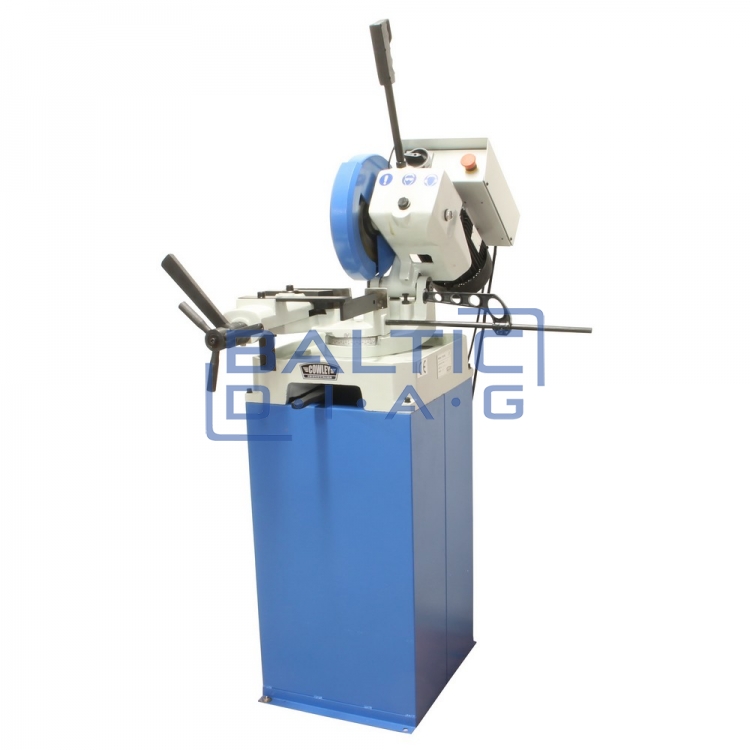

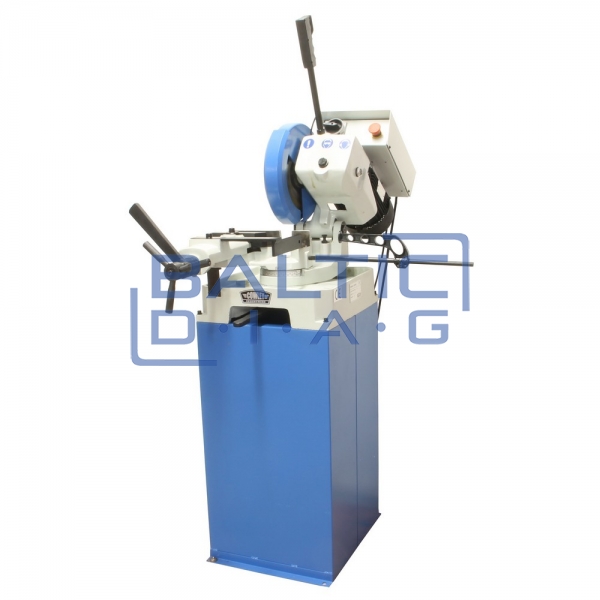

This Cowley circular saw is ideal for cutting and shortening round or rectangular metal materials. This rugged model has the following useful features:

Double clamp

The angle of the clamp can be adjusted

Swivel design throughout

Twist to support the material

The head is rotated 45 degrees

Material stopping

The machine is equipped with a 250 mm saw blade, 330 x 460 x 770 mm base and cooling device.

Specifications:

saw blade diameter = 250 mm

axle diameter = 32 mm

cutting power circular 90 degrees = 60 mm

cutting capacity rectangular 90 degrees = 75 x 45 mm

cutting power circular 45 degrees = 55 mm

cutting power rectangle 45 degrees = 45 x 45 mm

blade speed = 42 rpm

max. opening clip = 100 mm

motor power = 1.1kW

voltage = 400 V.
