Mercedes-Benz truck diagnostic equipment Jaltest

Jaltest PC Diagnostic Equipment for Mercedes-Benz Trucks

Warranty period – 24 months

Why Choose Jaltest PC Mercedes-Benz?

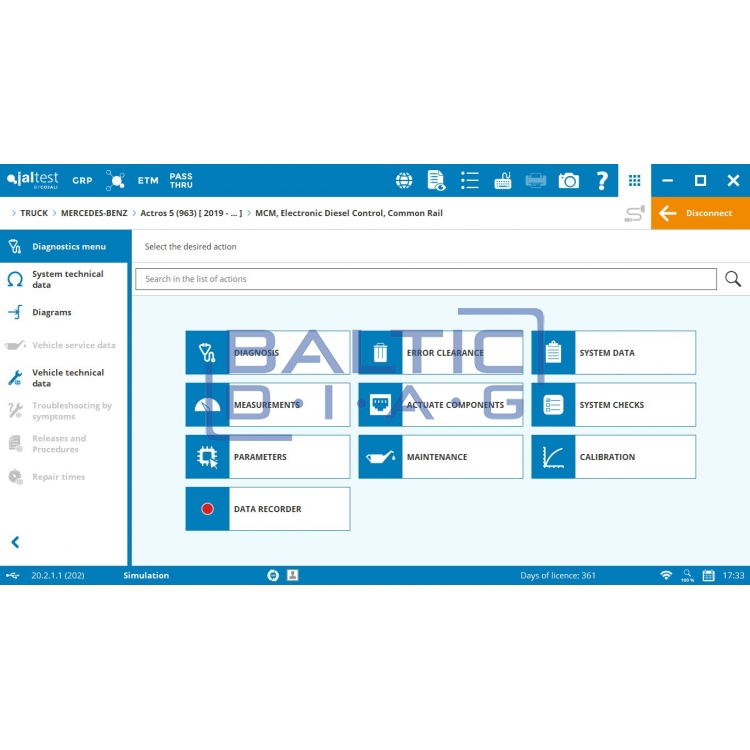

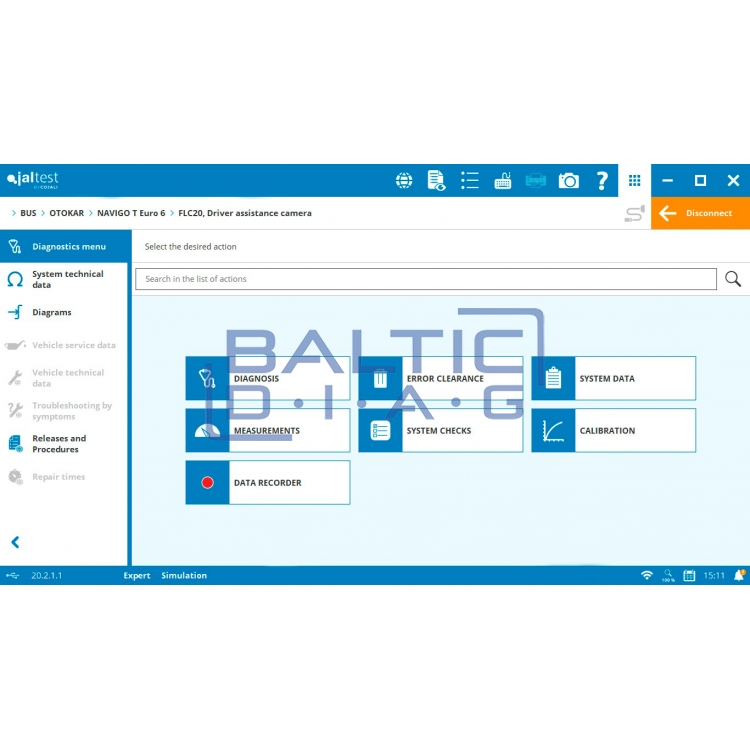

• All-in-one system. Perform complete diagnostics, ECU checks, calibrations, and component activations without the need for additional equipment.
• Efficient time and cost management. With the Jaltest INFO system, you gain access to comprehensive technical documentation that helps quickly identify and resolve faults.
• Wide applicability. The equipment is scalable – to maintain other brands, simply add an additional license.
• Reliability at every step. Jaltest equipment is regularly updated and expanded, ensuring access to the latest technical standards, including Euro 6.
• Smooth workflow. Stable software performance, intuitive interface, and quick access to information ensure productive work.
• Risk-free – try it for free. We offer the possibility to test the equipment before purchasing so you can experience its benefits firsthand.

Features:

• Supports all commercial vehicle standards and protocols, including RP1210 and Pass-Thru

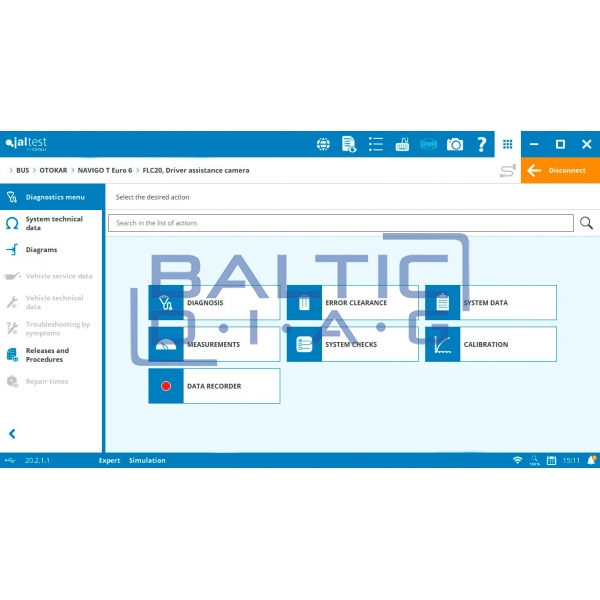

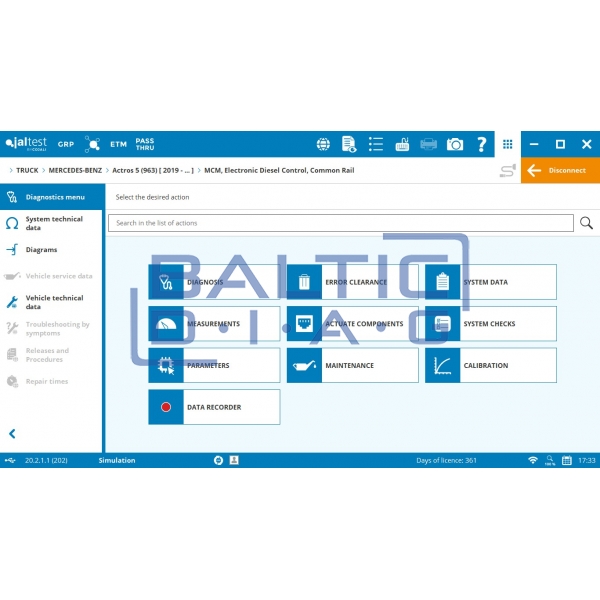

• Intuitive and fast software interface

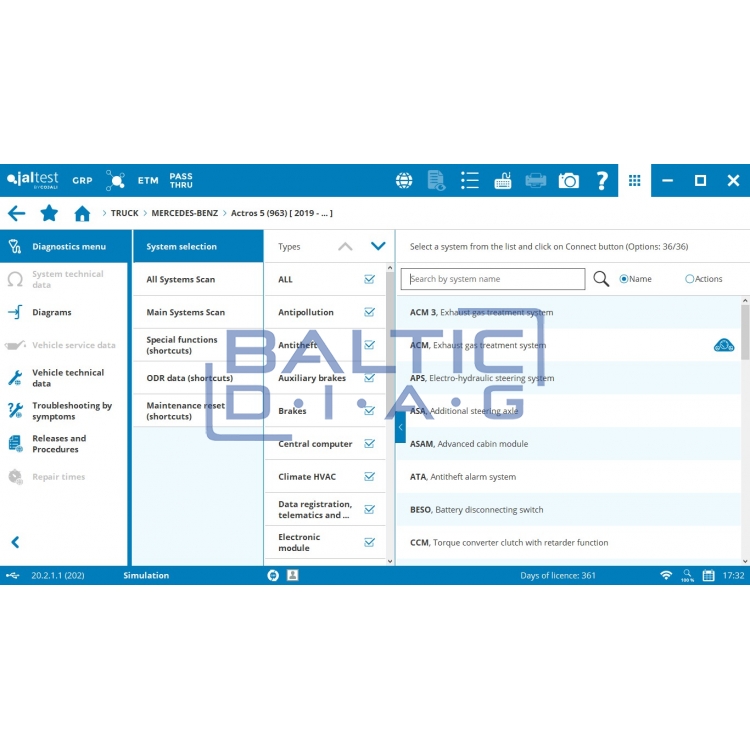

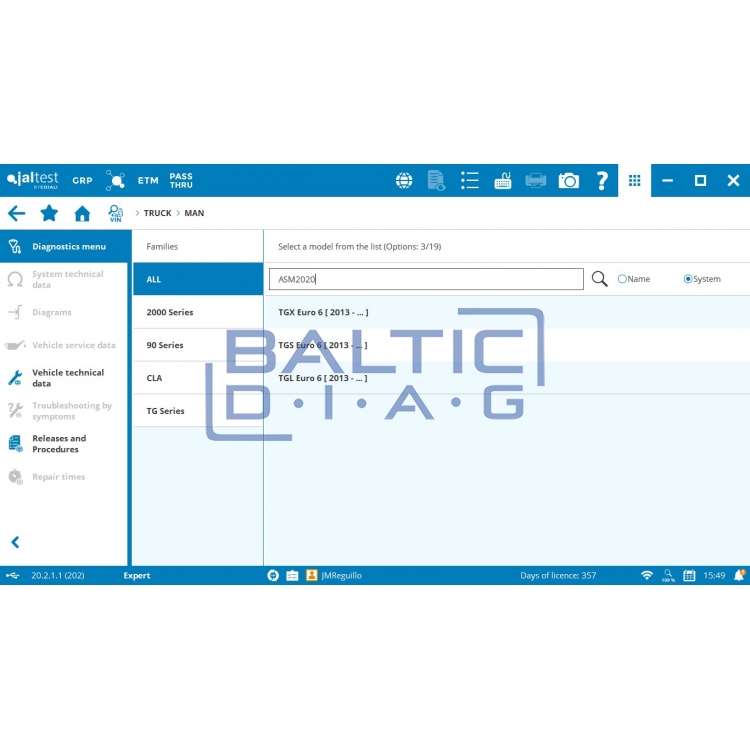

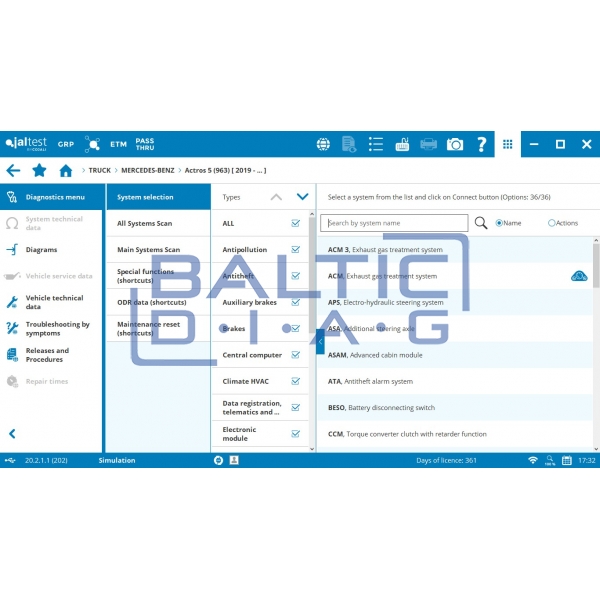

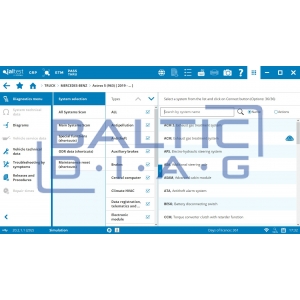

• Automatic system and fault detection
• Troubleshooting based on symptoms and error codes

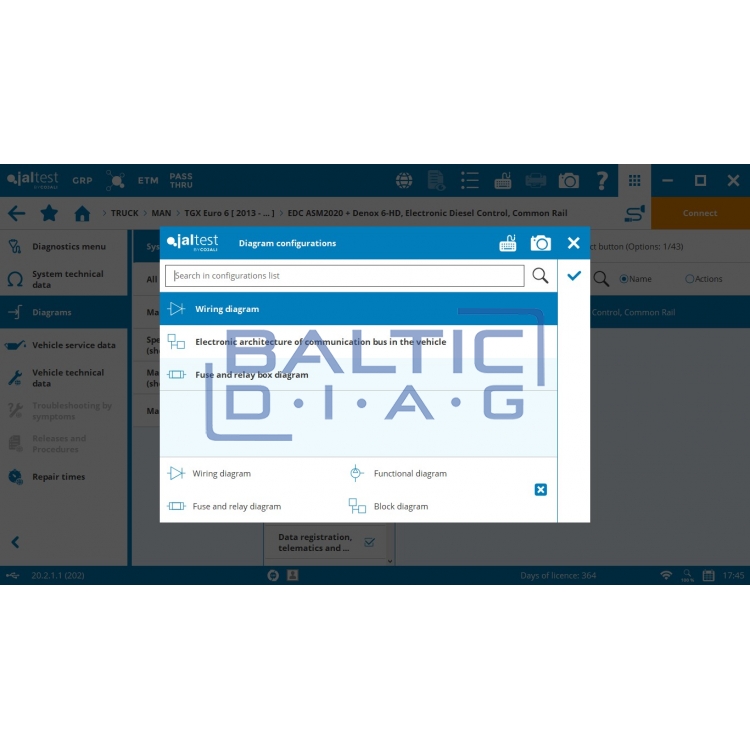

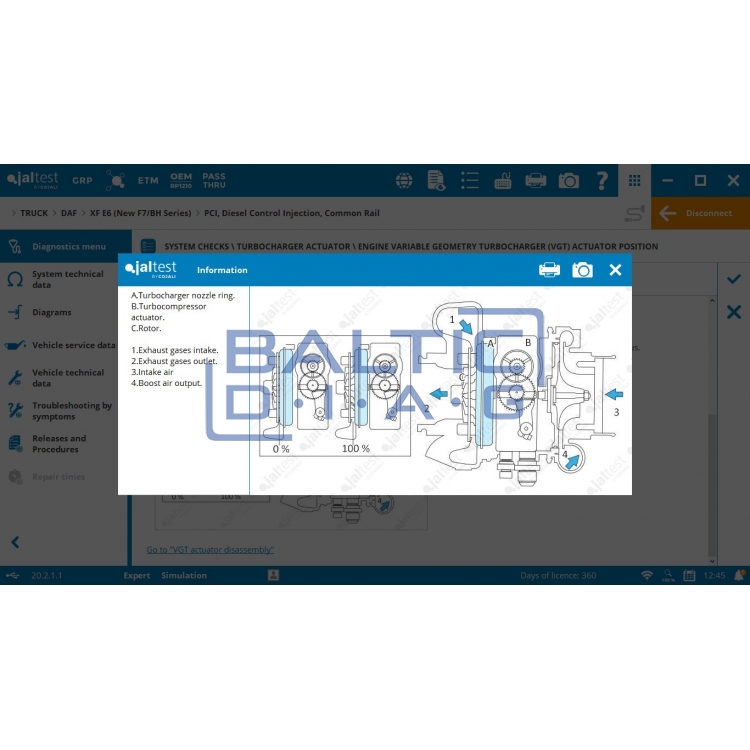

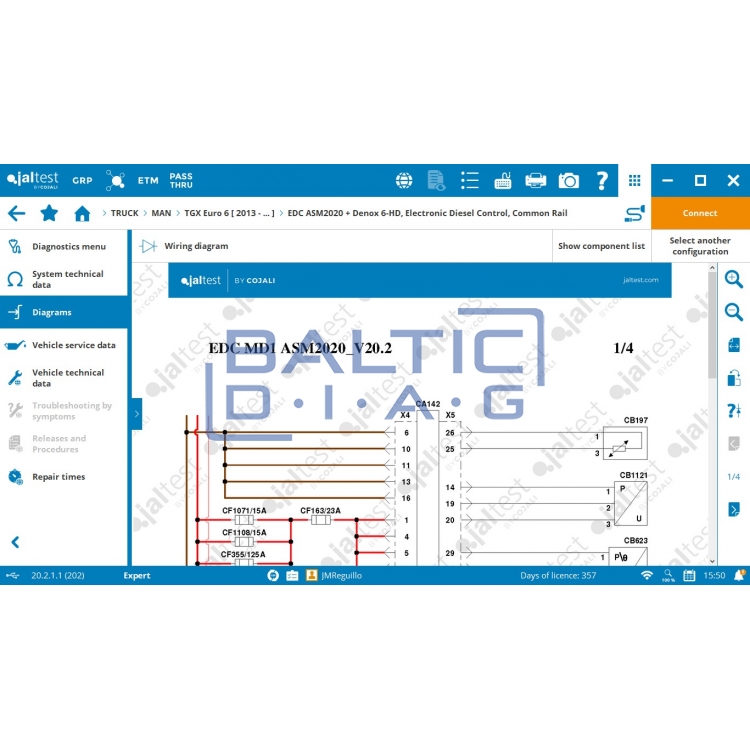

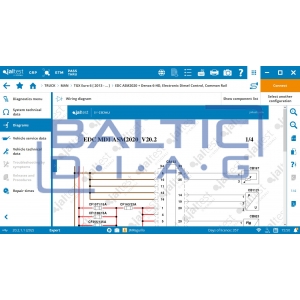

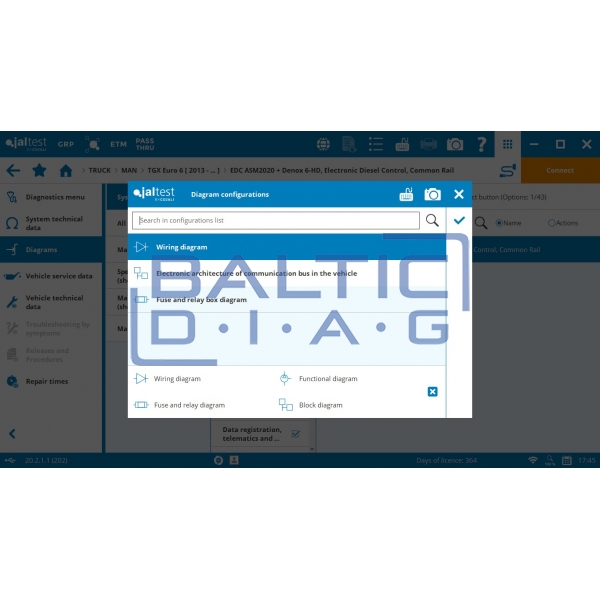

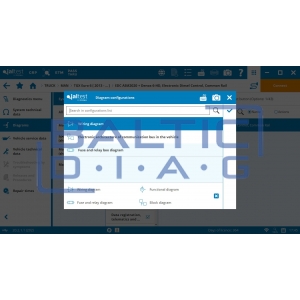

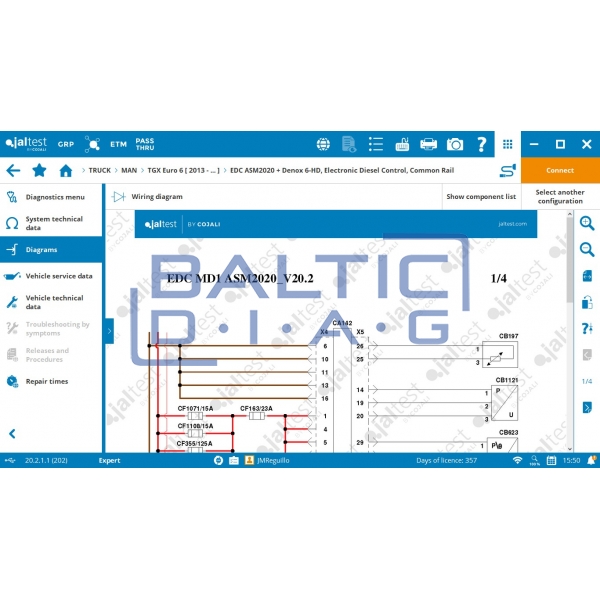

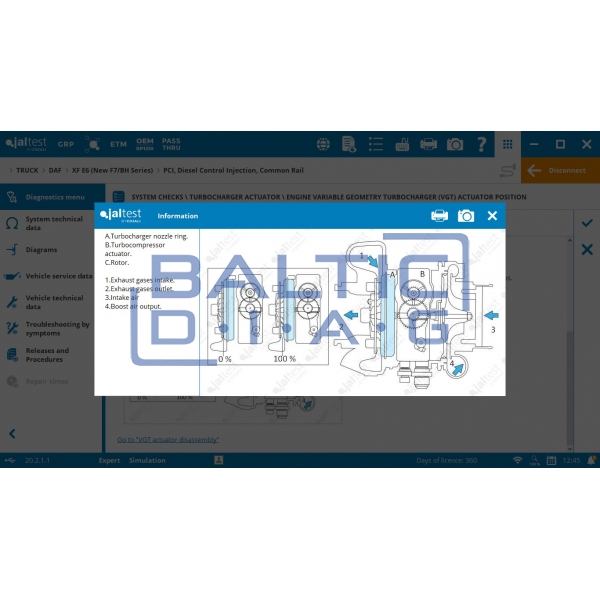

• Integrated technical information, wiring diagrams, technical documents
• ETM – electronic test module
• GRP – workshop resource planning
• Brand-specific licenses can be purchased separately
• Repair times

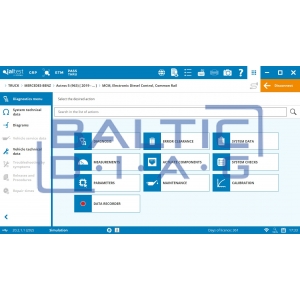

• ECU (Electronic Control Unit) diagnostics via OBD interface or specific adapter
• Ability to connect to any diagnostic port using a universal diagnostic cable with special adapters
• Integrated automatic multiplexer – automatic switching of K and L, CAN, and SAE lines to any OBD terminal
• Supported diagnostic protocols: ISO 9141-2, K/L lines; ISO 14230 (KWP2000), K/L lines; SAE-J1850 VPW and PWM; ISO 11519-2; SAE J1708; ISO 15765-4 (OBD); CAN ISO 11898; CAN (High Speed, Medium Speed, Low Speed, single-wire CAN systems supported); SCI Haldex; RP 1210; SAE J2534 (PASS-THRU)

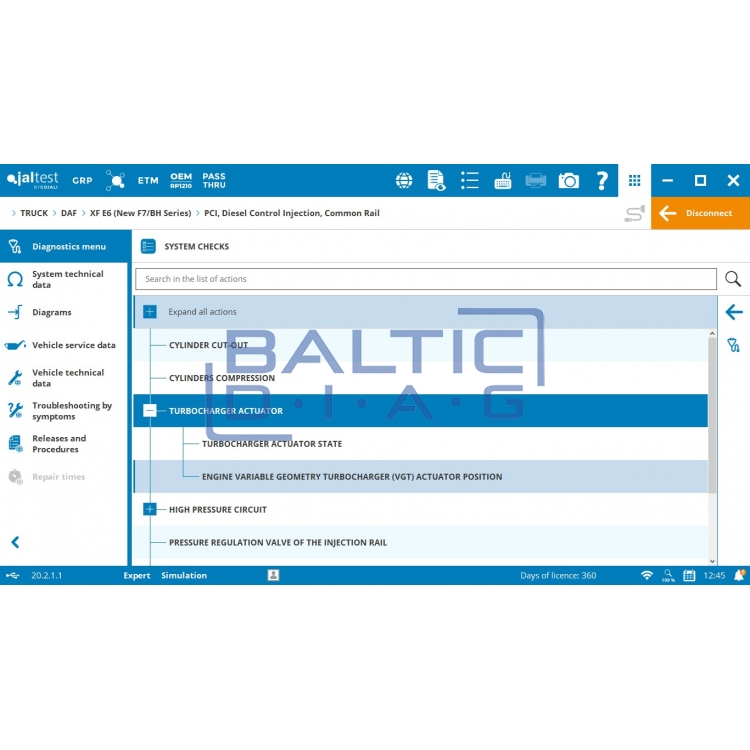

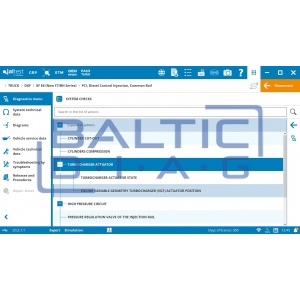

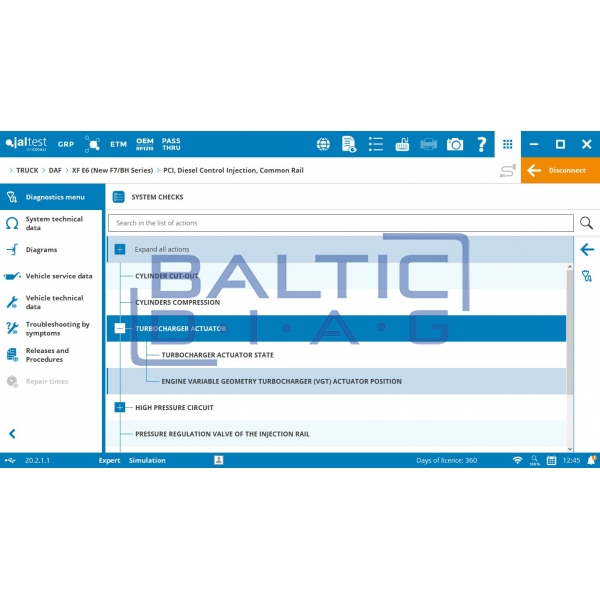

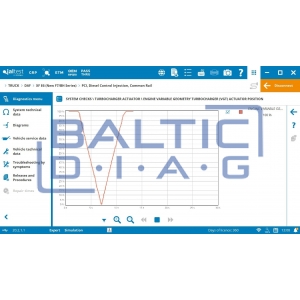

• Component activation: ability to send signals to various systems using Jaltest – for example, activating fans, deactivating cylinders, performing compression tests, and controlling different mechanical functions

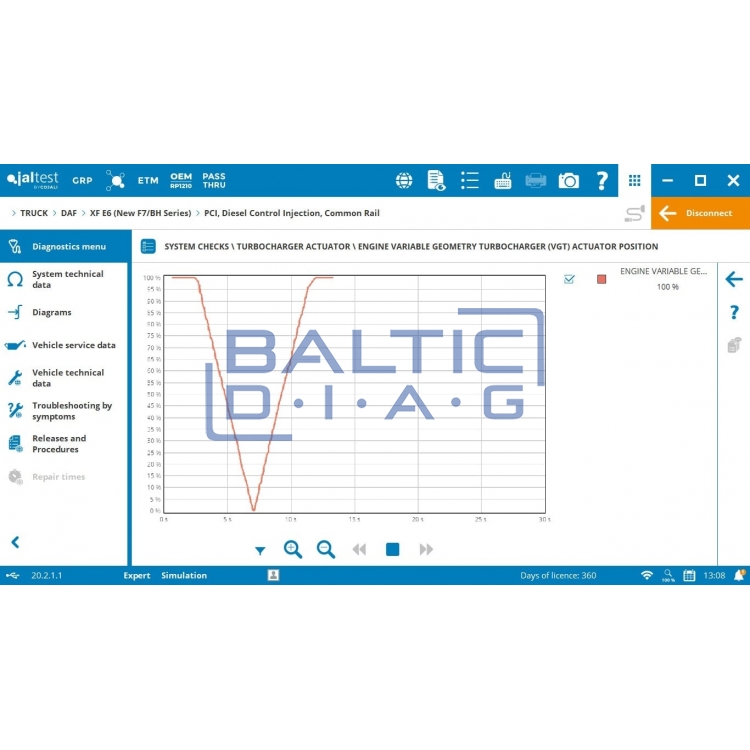

• Up to 8 values can be measured and displayed simultaneously / includes nominal value range information

Technical Specifications:

• Connects to desktop or laptop PC via Bluetooth or USB cable
• Bluetooth range: 20–50 m
• Minimum PC requirements: DVD drive, Windows XP, 7, 8, 10 64-bit OS, 2 GB RAM, 10 GB free hard disk space, USB port
• Powered via OBD connector or 12/24 V DC power supply
• Power consumption: 7W
• Shock-resistant housing
• Weight: 1.2 kg
• Dimensions: 183 x 131 x 56 mm
• Operating temperature: from 0°C to +45°C
• Multilingual menu
• Certifications: CE, FCC, RoHS

Standard Kit Includes:

• 70001017 – Jaltest Link Kit
• 293130 – Mercedes-Benz truck license
• 29380 – Carrying case
• JDC213M3 – OBD cable
• JDC107.4 – USB cable
• JTP96 – Universal diagnostic cable with a set of special adapters
• Power cables for battery and vehicle power outlet

Who Is This Device For?

• This solution is ideal for truck service centers, independent Mercedes-Benz vehicle technicians, maintenance professionals, and transport companies operating a fleet of Mercedes-Benz trucks. The equipment is intended for those who value speed, precision, and flexibility in their daily work.

Ready to take your workshop to the next level?

• Choose the official Jaltest PC solution for Mercedes-Benz truck diagnostics – gain maximum benefits, reliability, and professional support. Contact us for a free trial or consultation – let us help you work more efficiently!
