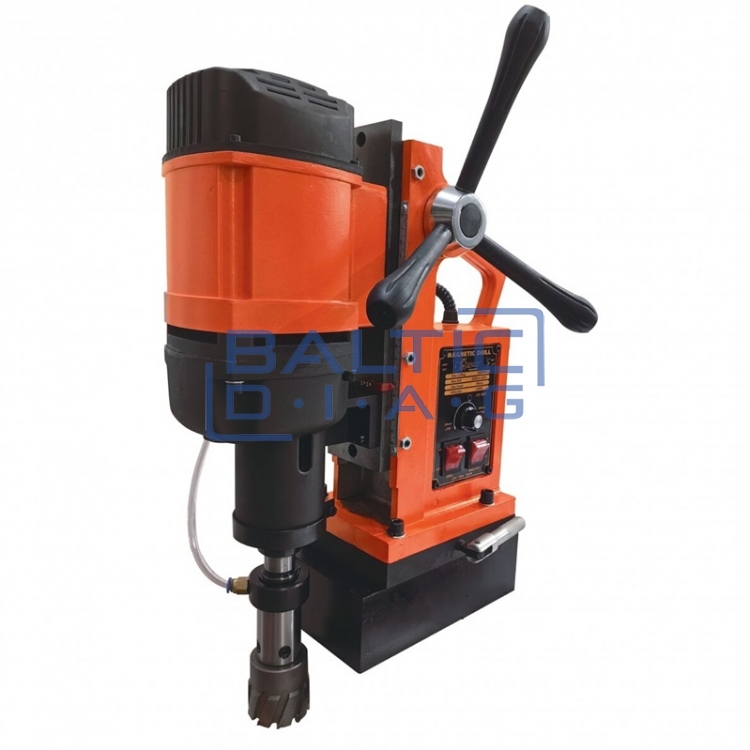

Magnetic drilling and cutting machine 1600 W for metal milling, drilling, and countersinking

Magnetic Drilling and Cutting Machine 1600 W for Metal Milling, Drilling, and Countersinking

Country of origin: China, warranty period – 24 months

This is a versatile and powerful magnetic drilling and cutting machine designed for precise drilling, milling, and countersinking on various metal surfaces. The 1600 W motor, dual chuck system (Weldon and Morse taper), and sturdy magnetic base ensure high performance and stability during operation. These machines are ideal for construction, manufacturing, repair, and assembly work. The set includes all essential accessories for operation and safe transport.

Features:

• Powerful 1600 W motor with adjustable rotation speed (200–600 rpm)
• Capable of milling, drilling, and countersinking
• Max milling diameter – 36 mm
• Max drilling diameter – 28 mm
• Max countersinking diameter – 40 mm
• Cutting depth up to 50 mm
• Dual chuck: 19 mm Weldon + Morse taper MT3/2
• Strong magnetic holding force – up to 1325 kg
• Supplied with safety strap, coolant holder, chuck wedge, and wooden case
• Suitable for workpieces 6 mm thick or more
• CE compliant, IP20 protection class, noise level ~85 dB

Technical Specifications:

• Voltage: 220–240 V, 50/60 Hz
• Power: 1600 W
• Rotational speed (under load): 200–600 rpm
• Chuck: 19 mm (3/4") Weldon and Morse taper MT3/2 / MK3/2
• Max milling diameter: 36 mm (1-7/16")
• Max drilling diameter: 28 mm (1-3/32")
• Max countersinking diameter: 40 mm (1-9/16")
• Max cutting depth: 50 mm (1-31/32")
• Minimum workpiece thickness: 6 mm (1/4")
• Stroke: 180 mm (7-3/32")
• Magnetic holding force: 1325 kg (13,000 N), /25 mm, Ra = 1.25/
• Magnetic base dimensions: 210 x 120 x 65 mm
• Overall dimensions: 405 x 215 x 490 mm
• Noise level: ~85 dB
• Protection class: IP 20
• Electrical insulation class: I
• Operating temperature: 0–40 °C (32–104 °F)
• Weight: 27 kg
• Set includes: magnetic drilling machine, 4 mm hex key, chuck wedge, safety strap, coolant holder, wooden case
