Key programming device for car and motorcycle keys KeyMaster G3 OBDSTAR

Key Programming Device for Car and Motorcycle Keys KeyMaster G3 OBDSTAR

Supported Vehicle Types:

• Passenger cars, trucks (HD), electric vehicles (E-Car), motorcycles (MOTO), marine vehicles (jet-skis)

Software Functions:

• IMMO (key) programming
• Remote testing
• Transponder read/write
• Dealer key generation
• Start key generation
• Key renewal
• EEPROM/MCU read/write
• ECU unlocking
• Advanced ECU functions
• OBD II and more

Hardware Advantages:

• Integrated: CAN-FD, Low-Speed (Fault-Tolerant) CAN, OBD16 pin switch, DOIP, remote test, and RFID
• Quad-core 64-bit Cortex-A55 2.0 GHz processor, 4 GB RAM + 64 GB storage, high-brightness display, HDMI high-definition port, dual-band 2.4G/5GHz Wi-Fi, Bluetooth 5.0

Advanced Functions:

• Supports car key programming for the following models:
• MQB all keys lost (supports both PROXIMITY AKL and BLADE AKL, unlimited synchronization code calculation)
• FORD/LINCOLN 2021 key programming
• NISSAN SENTRA B18, ROGUE T33 – all keys lost
• Supports motorcycle key programming (no PIN code required) for:
• HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET, and others
• Supports marine (jet-ski) key programming for:
• BRP, KAWASAKI, YAMAHA, and others
• Supports electric vehicle key programming for:
• LI, NETA, LEAPMOTOR, SERES, AITO, and others
• Supports ECU unlocking function for:
• ALFA ROMEO, FIAT, CHRYSLER, DODGE, JEEP, and others
• Supports full key loss programming solutions for:
• SMART 453 where all keys are lost and all functions are disabled
• RENAULT models CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3
• Supports PIN code reading when all keys are lost (no risk of bricking the vehicle) for post-2015 RENAULT models:
• ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN, and Samsung QM6/SM6
• Optional paid software activations available for:
• ODO METER, ECU Flasher, Crash Reset, Test Platform, and more

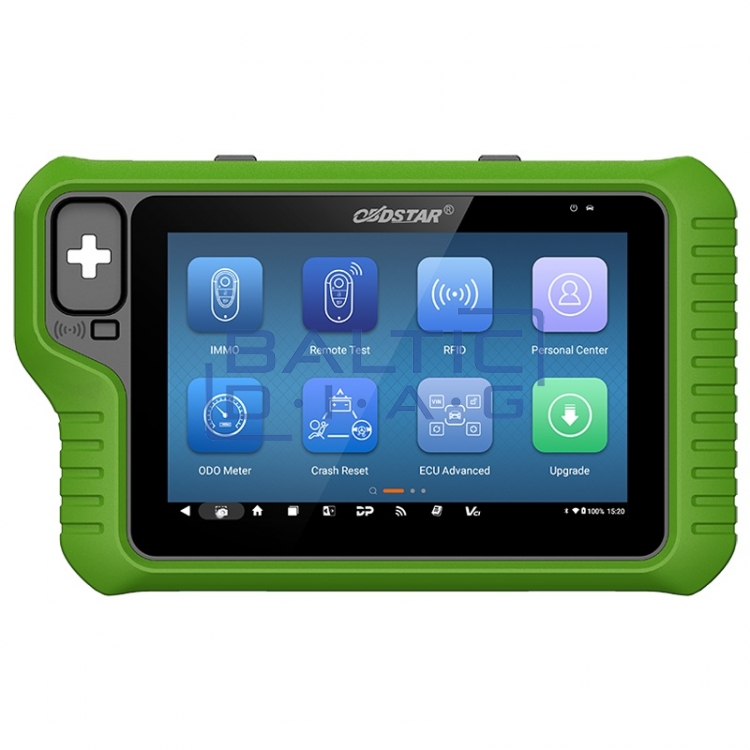

Function Module List:

• IMMO (Immobilizer Functions)
• Car IMMO
• Truck IMMO
• Electric Vehicle IMMO
• Motorcycle IMMO
• Marine IMMO
• Remote Test
• ECU Advanced
• Key Creation
• Transponder R/W
• Smart Key Unlock
• EEPROM/MCU R/W
• Key Renewal

ODO METER (Mileage and Maintenance)

• Car Odometer
• Motorcycle Odometer
• Oil/Service Reset

ECU Programming (ECU Flasher)

• Car ECM
• Car TCM
• Car Body Module
• Motorcycle ECM

Crash Reset (Safety System Reset)

• Battery Reset (MVBM)
• Airbag Reset
• SAS (Steering Angle Sensor) Reset

Test Platform

• Dashboard
• Electric Vehicle ABS
• Gear Lever
• A/C Control Panel
• E-Car BSG System
• E-Car MHEV System
• E-Car Audio System
• E-Car EBA System

Technical Specifications:

• Operating System: Android 11
• Processor: Quad-core 64-bit Cortex-A55 2.0 GHz
• Memory: 4 GB RAM + 64 GB ROM

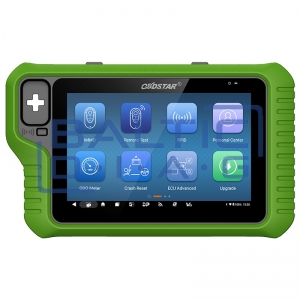

• Display: 8.0-inch laminated, sunlight-readable
• Resolution: 1280×800

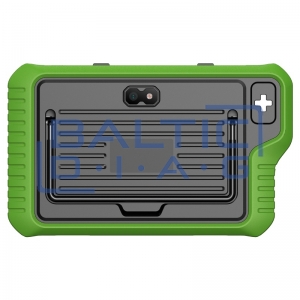

• Camera: Rear 800W, auto-focus
• Battery: 9000 mAh
• Bluetooth: Version 5.0
• Wi-Fi: Dual-band 2.4G/5GHz

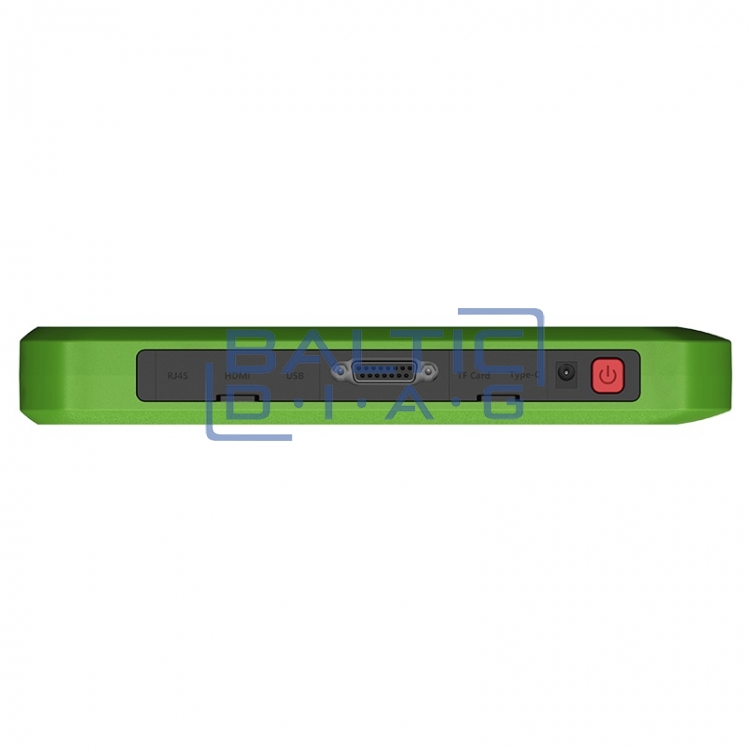

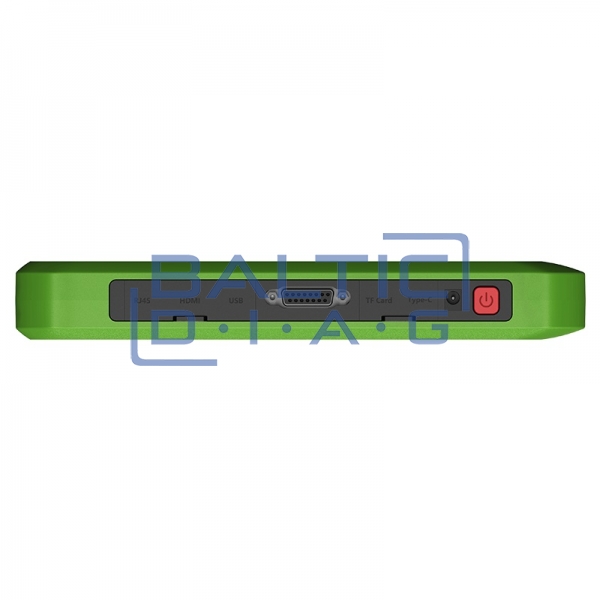

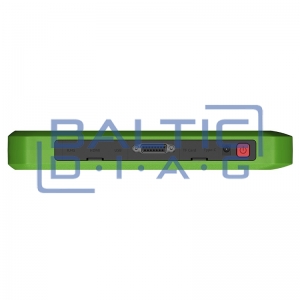

• External Ports: TYPE-A, TYPE-C, HDMI, RJ-45
• VCI: Built-in CANFD, DOIP, Low-Speed CAN (Fault Tolerant), all common protocol types
• Integrated Features: RFID, remote test, Renault converter
• Additional Features: OTA updates, screen recording, wireless screen sharing
