  • SKU: BD63892
2,499.00 €

Prices shown include tax

Send Message

Description


ISUZU truck diagnostic equipment Jaltest
Manufacturer Cojali (Spain), warranty 24 months.
Jaltest PC diagnostic equipment is for ISUZU trucks with the device and an activated license for ISUZU trucks. The diagnostic equipment is used with a desktop or laptop computer and connects to the computer with a USB cable or wireless connection. It is the leading commercial vehicle diagnostic equipment with the widest coverage on the market. With the help of Jaltest diagnostic equipment, you will not only perform the usual autoelectronic work, but you will also be able to perform calibrations, resets, see repair times and perform many other functions for the maintained vehicle fleet. With the help of Jaltest INFO, which contains a large amount of technical and troubleshooting information, where you will find troubleshooting wizards, you will see diagrams, diagrams, pictures, graphs, component parameters. With the help of this manual, you will be able to easily identify error codes, find the faulty component and its location in the truck.


Technical characteristics:
Connects to a desktop or laptop PC via Bluetooth or a USB cable
Bluetooth operation: 20-50 m
Minimum requirements for PC: DVD reader, Windows XP, 7, 8, 10 64-bit OS, 2 Gb RAM, 10 Gb free hard disk space, USB connection
Power supply via OBD connector or 12/24 V DC power supply
Power consumption: 7W
Shockproof housing
Weight: 1.2 kg
Dimensions: 183 x 131 x 56 mm
Operating temperature: from 0 ° C to + 45 ° C
Multilingual menu
Certificates: CE, FCC, RoHs
Diagnostic equipment features:
All commercial transport standards and protocols are supported, including RP1210 and Pass-Thru
Intuitive and fast software interface
Automatic detection of systems and errors
Troubleshooting by symptoms and errors

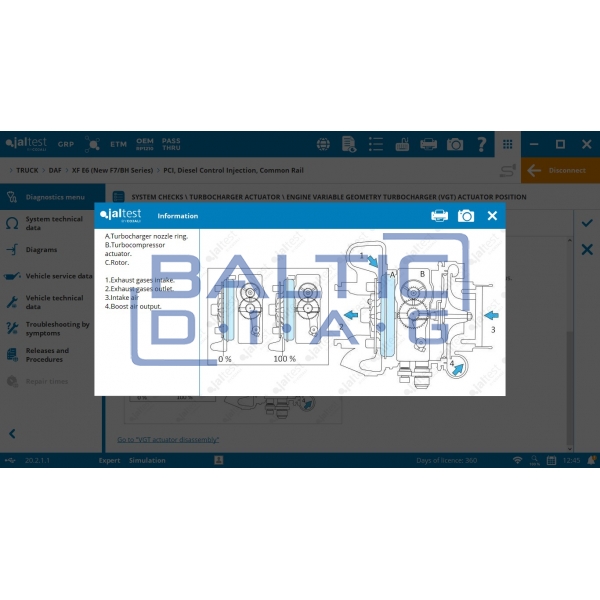

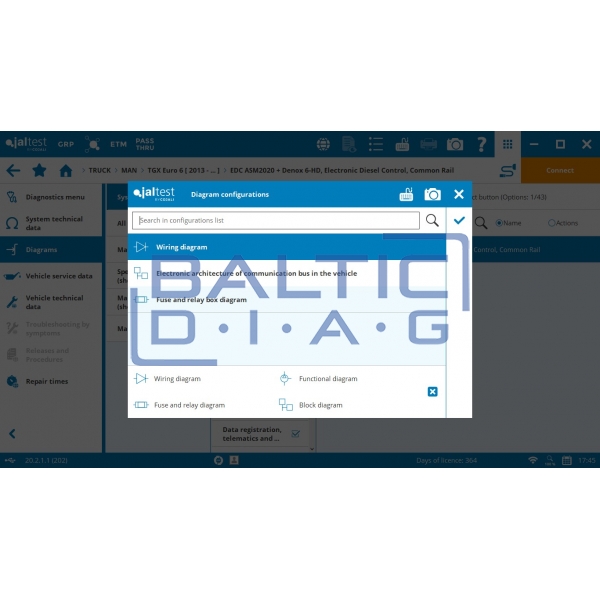

Integrated technical information, electronic circuits, technical documents
ETM - electronic test module
GRP - workshop resource planning
Licenses can be redeemed for each brand separately
Repair times
Equipment features and application possibilities:
Electronic control unit (EVB) diagnostics via OBD interface or specific adapter
Possibility to connect to any diagnostic connector using a universal diagnostic cable with special terminals
Integrated automatic multiplexer - automatic switching of K and L, CAN, SAE lines to any OBD connection terminal
Support for diagnostic protocols: ISO 9141-2, K / L lines; ISO 14230 (KWP2000), K / L lines; SAE-J1850 VPW and PWM; ISO 11519-2; SAE J1708; ISO 15765-4 (OBD); CAN ISO 11898; CAN (High Speed, Middle Speed, Low Speed, single-wire CAN system support); SCI Haldex; RP 1210; SAE J2534 (PASS-THRU).

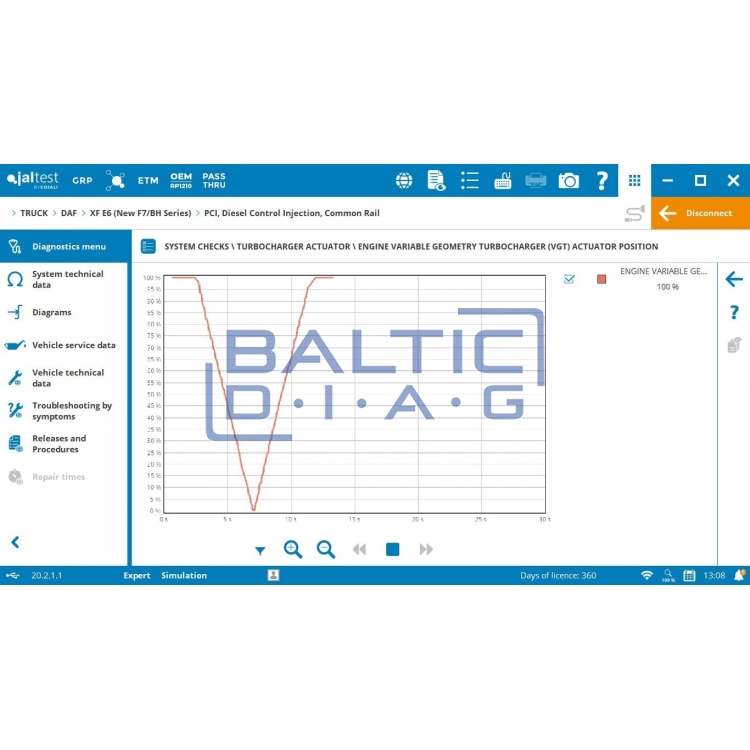

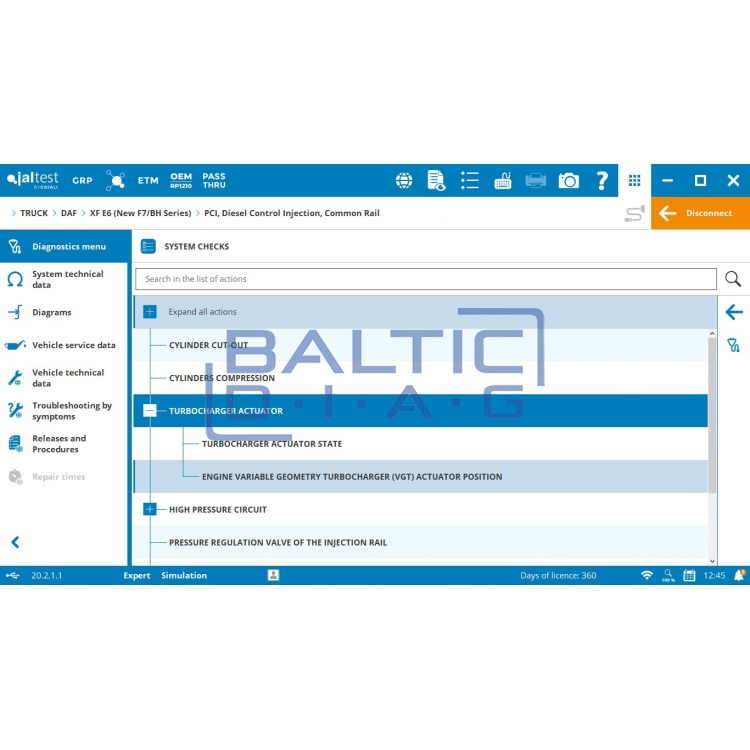

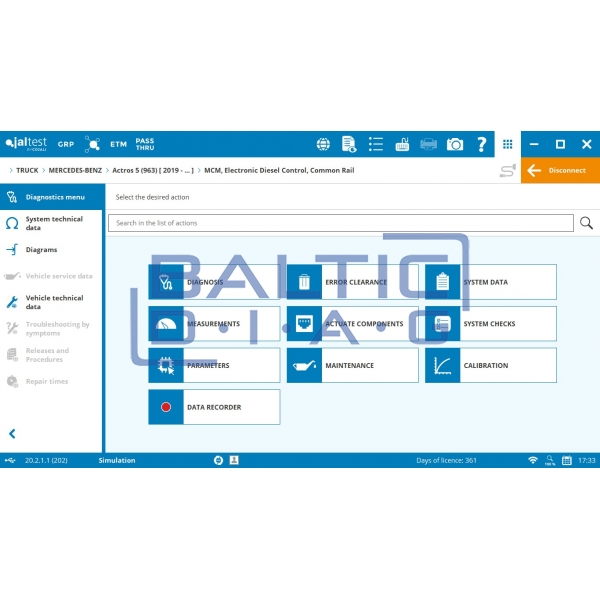

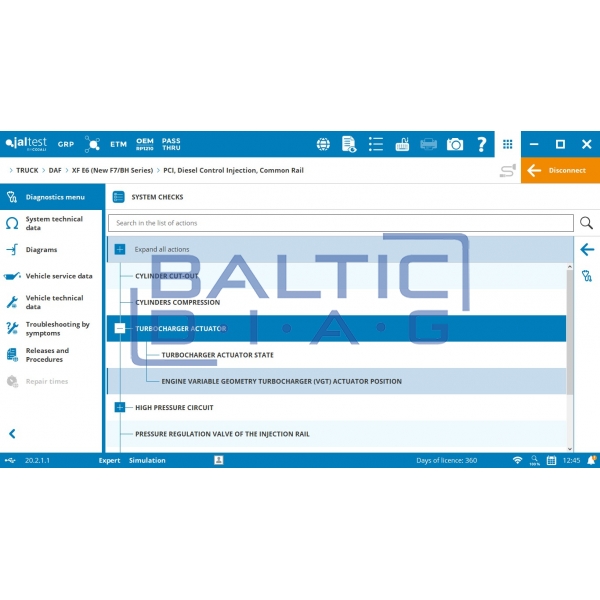

Component Activation: Ability to send signals to various systems using Jaltest, such as fan on, cylinder shutdown, compression measurement, and operation of different mechanisms
Up to 8 values ​​/ information on nominal value ranges are measured and displayed simultaneously

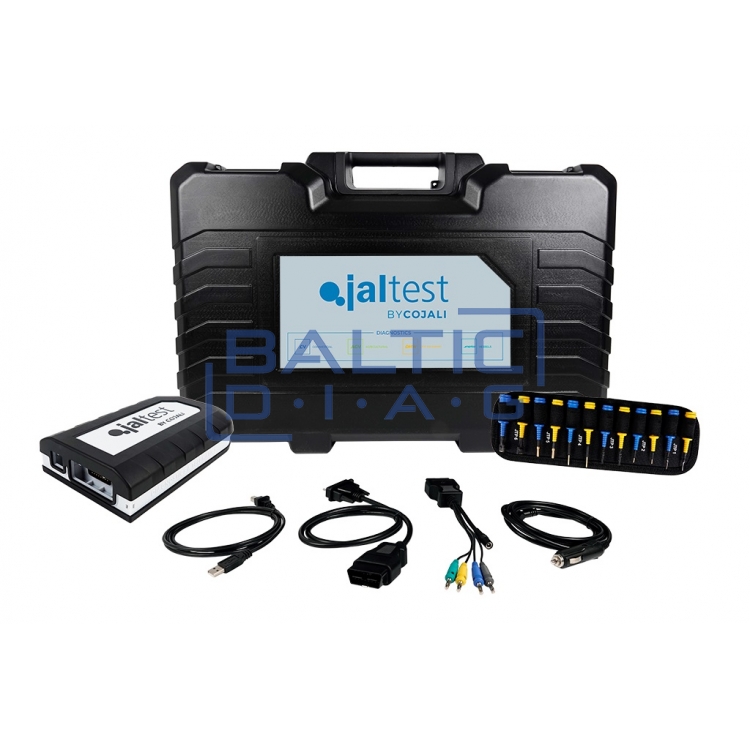

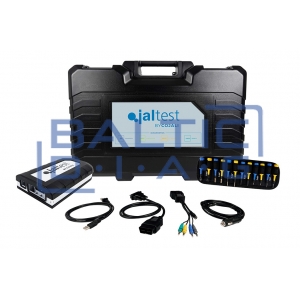

Standard equipment:
70001017 - Jaltest link kit
293148 - Volvo truck license
29380 - suitcase
JDC213M3 - OBD cable
JDC107.4 - USB cable
JTP96 - universal diagnostic cable with a set of special terminals
Power cables from the battery and from the vehicle power outlet
You can find support for truck models here: https://www.jaltest.com/en/coverage/
