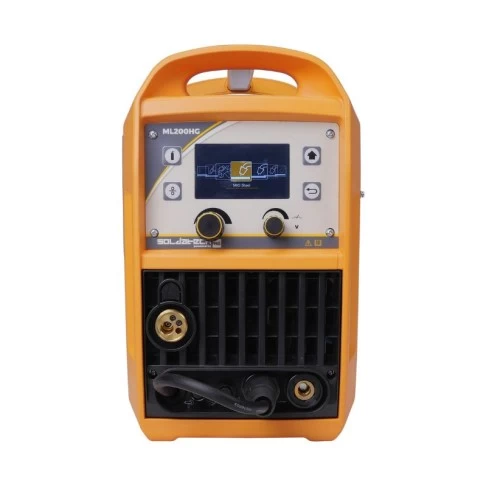

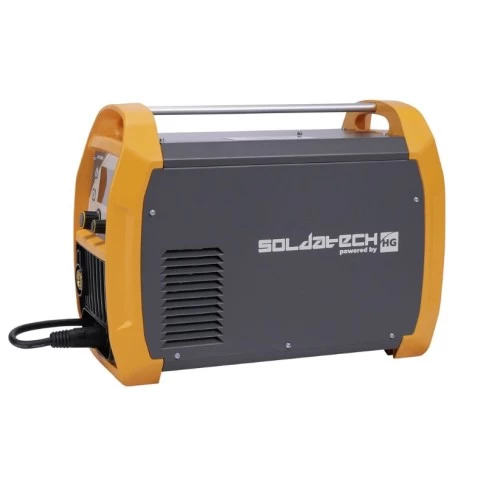

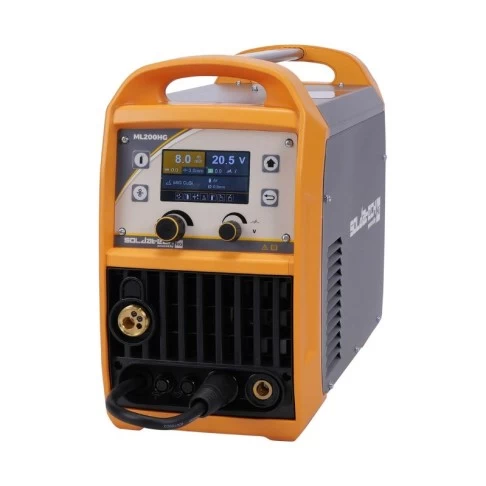

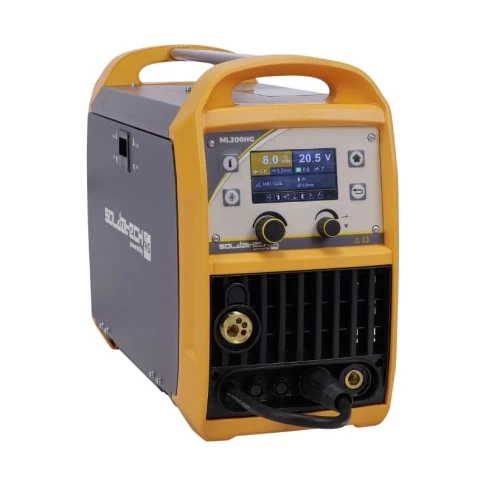

Inverter welding machine 200 A MIG/MAG ML200HG Valkenpower

Country of origin: Netherlands, warranty period – 24 months

The ML200HG inverter welding machine is designed for various MIG/MAG, MMA, and Lift-TIG welding tasks in workshops, auto repair shops, manufacturing facilities, agricultural settings, and during metal structure repair work. Synergic control automatically adjusts the wire feed speed according to the set welding current, helping you select the right parameters more quickly and ensuring a smoother welding process. The unit is suitable for MIG welding of stainless steel, carbon steel, low-alloy steel, copper, and aluminum, as well as brazing with CuSi3 filler metal.

Technical Specifications:

Input voltage: 230 V / 50–60 Hz
Number of phases: 1
Input power: 8.6 kVA
Recommended circuit breaker: 16 A, C-type
No-load voltage: 69 V
Welding current range in MIG/MAG mode: 40–200 A
Welding current range in MMA mode: 10–180 A
Welding current range in Lift-TIG mode: 10–180 A
Duty cycle at 20 °C: 35% at 200 A
Duty cycle at 40 °C: 20% at 200 A
Suitable welding wire diameters: 0.6 / 0.8 / 1.0 / 1.2 mm
Protection class: IP21S

The ML200HG inverter welder is a versatile machine for users who need MIG/MAG, MMA, and Lift-TIG welding modes in a single unit. Synergic control, setting memory, a remotely adjustable torch, and reliable IGBT technology allow you to work more efficiently on both everyday repair tasks and more complex metalworking projects.

Functions

MIG/MAG mode is designed for wire welding using shielding gas
MMA mode allows for welding with coated electrodes
Lift-TIG mode is designed for precision work using a tungsten electrode
Synergic control automatically adjusts the wire feed speed based on the set welding current
The LCD screen allows you to clearly view and easily set welding parameters
Up to 5 different welding setting programs can be saved
The remotely controlled MIG torch allows you to adjust settings during operation
The CuSi3 brazing function helps reduce heat impact on thin metal parts and the risk of deformation
Suitable for welding stainless steel, carbon steel, low-alloy steel, copper, and aluminum in MIG mode
The Hot Start function increases the initial welding current and facilitates electrode ignition
The Anti-Stick function helps reduce the likelihood of the electrode sticking to the workpiece
IGBT inverter technology ensures a stable welding arc and more efficient energy use
Integrated thermal protection and a cooling fan help protect the unit from overheating
The compact housing and 19 kg weight make it easier to transport the unit between work sites

Product dimensions

Length: 550 mm
Width: 245 mm
Height: 405 mm
Weight: 19 kg

Package dimensions

Length: 700 mm
Width: 335 mm
Height: 460 mm
Weight: 23.7 kg

Package contents

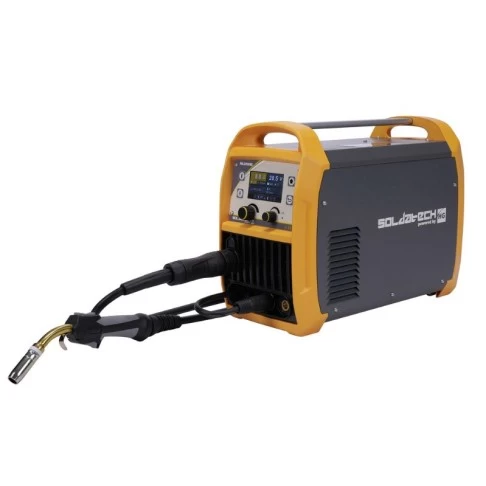

MIG torch with remote control and Euro connector: 3 m x 1
Electrode holder with Twistlock connector and 16 mm² cable: 3 m x 1
Ground terminal with 16 mm² cable: 2 m x 1
European standard DIN connectors: 13 mm x 1
Gas hose with clamps: 3 m x 1
Neoprene power cord: 2.5 m, 3 x 2.5 mm² x 1
Wire feed spools: 0.6–0.8 mm and 0.8–1.0 mm x 1
