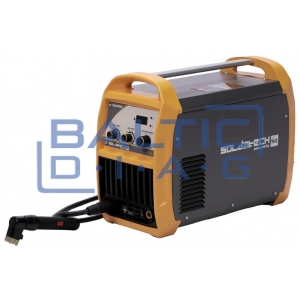

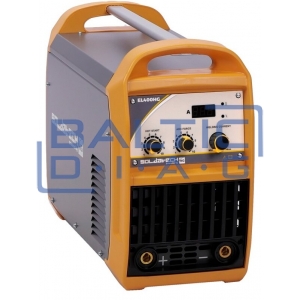

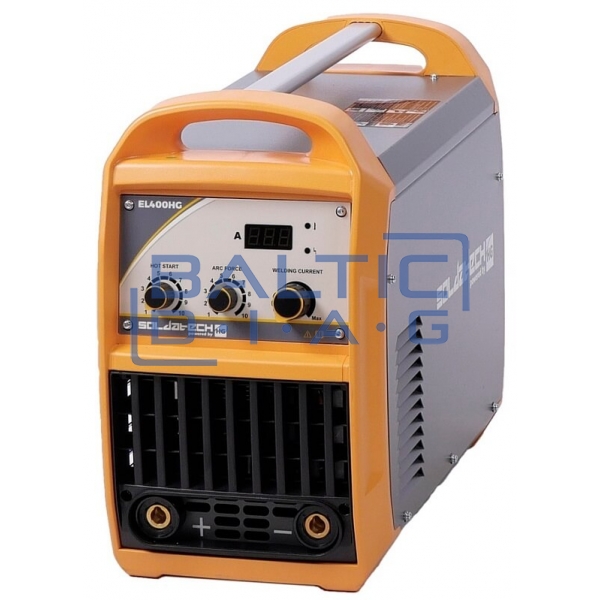

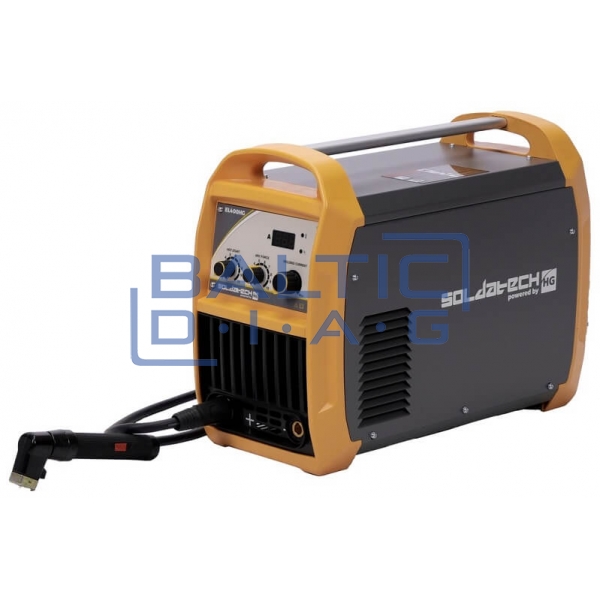

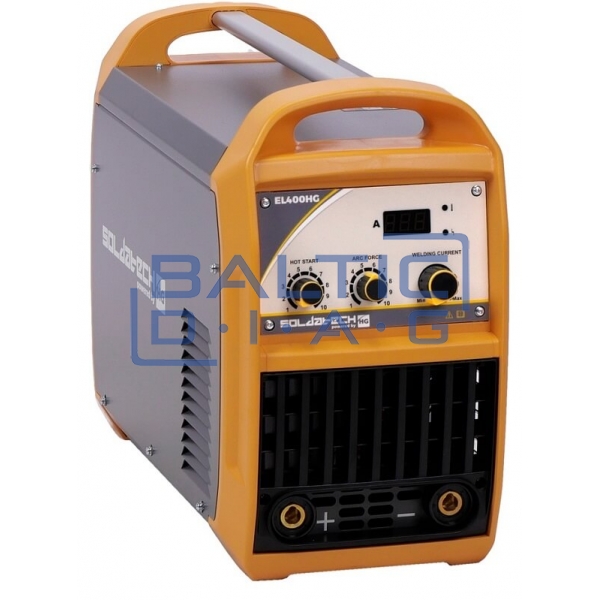

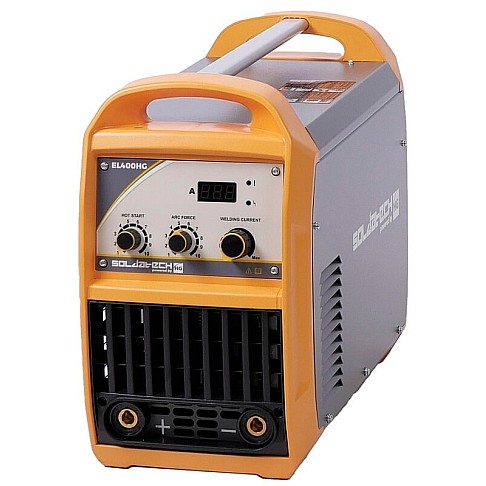

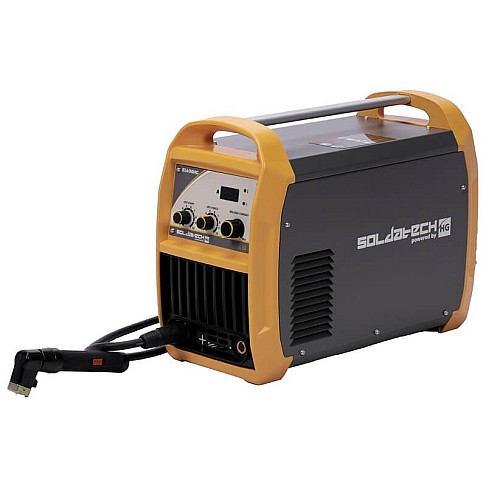

Inverter electrode welding machine 400A Valkenpower

Inverter electrode welding machine 400A Valkenpower

By registering the equipment on the website www.soldatech-welding.com, you can extend the warranty period up to 5 years.

Functions:

• ARC force function – adjusts weld penetration
• Hot-start function – facilitates arc ignition
• Anti-stick function – prevents electrode sticking
• Easily adjustable welding current
• Overheating protection with integrated cooling fan
• Modern IGBT inverter technology
• Lightweight, compact, powerful, and portable device
• Suitable for rutile and basic electrodes
• Designed for welding carbon, stainless, and low-alloy steel

Technical specifications:

• Voltage: 400 V, 3 phase
• Frequency: 50/60 Hz
• No-load voltage: 82 V
• Input power: 19 kVA
• Circuit breaker: 3x 16A C type
• Duty cycle at 40°C: 25% - 400 A
• Duty cycle at 20°C: 60% - 400 A
• Welding current range: 15 – 400 A
• Electrode diameter: 1.6 – 4.0 mm
• Protection class: IP21S

Product dimensions:

• Length: 550 mm
• Width: 245 mm
• Height: 430 mm
• Weight: 24.5 kg

Package dimensions:

• Length: 700 mm
• Width: 335 mm
• Height: 460 mm
• Weight: 31.00 kg

Scope of delivery:

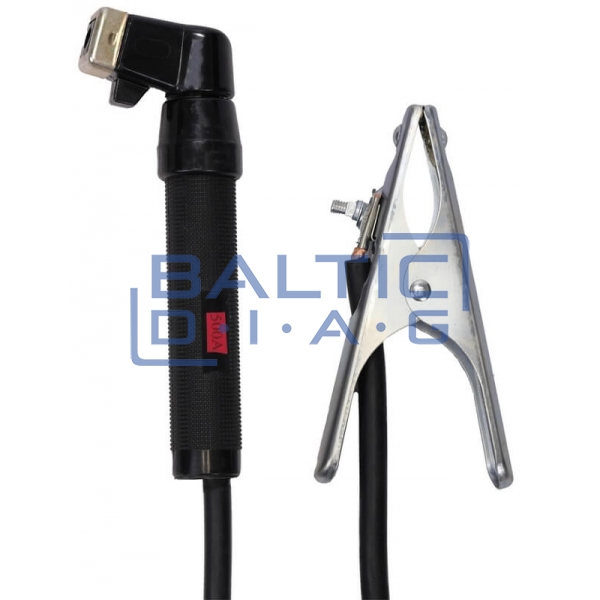

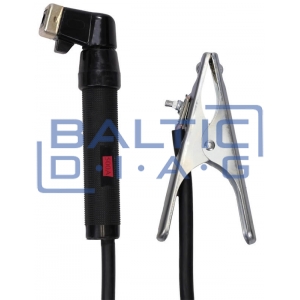

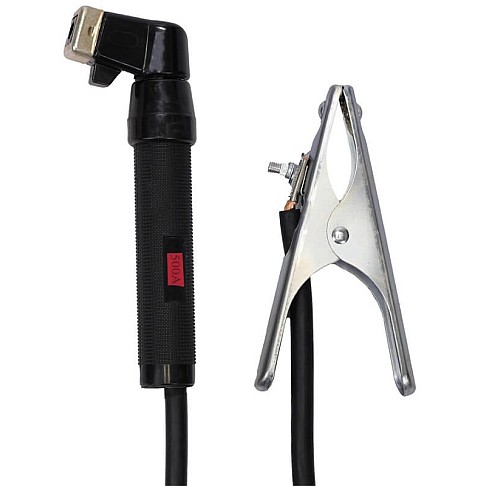

• Twistlock electrode holder with 5 m 35 mm² cable
• 500A ground clamp with 3 m 35 mm² cable
• 5-pin 32A plug with 2.5 m 4x4.0 mm² cable
• 13 mm European-style dinse connectors
