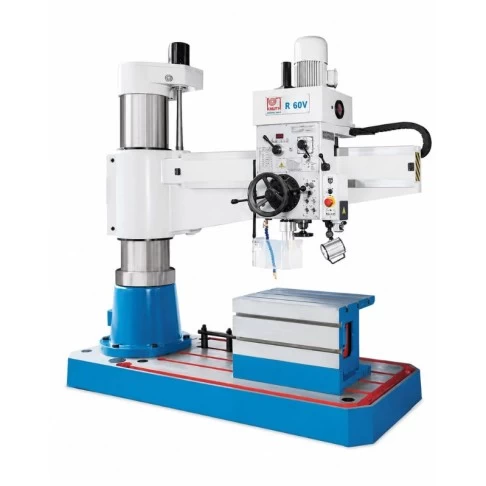

Industrial metal drilling machine R 60 V Knuth

Industrial metal drilling machine R 60 V Knuth

Country of origin: Germany, warranty period: 24 months

The Knuth industrial metal drilling machine R 60 V is designed for precision drilling, tapping, reaming and countersinking of steel, cast iron and other metal workpieces. The robust radial base, high drilling power and long stroke of the horizontal drilling head allow large and heavy workpieces to be conveniently handled without repositioning. Stepless spindle speed control with digital display gives you more control, while the powerful motorised cantilever height adjustment system, hydraulic clamping and precision machined mechanical assemblies ensure stable, reliable and productive operation in intensive production environments.

Technical specifications:

• Drilling capacity: 60 mm
• Thread capacity for cast iron: M52
• Thread capacity for steel: M40
• Maximum drilling depth: 315 mm
• Machine table dimensions: 2400 x 1000 x 200 mm
• Cubic table dimensions: 750 x 500 x 500 mm
• Extraction depth: 350-1600 mm
• Distance from spindle to table surface: 350-1250 mm
• Vertical beam travel: 585 mm
• Column diameter: 350 mm
• Horizontal stroke of drilling head: 1250 mm
• Spindle speed: 38-2000 rpm
• Spindle taper: 5 MT
• Feed: 0.06-1 mm/rev.
• Main motor power: 4 kW
• Power of stroke motor: 1,5 kW
• Overall dimensions (length x width x height): 2,49 x 1,05 x 2,78 m
• Weight: 3800 kg

The Knuth industrial metal drilling machine R 60 V is designed for companies that need a powerful, stable and versatile solution for drilling and tapping large metal workpieces. The robust construction, wide working range, convenient hydraulic locking and stepless spindle speed adjustment enable high performance, precision and reliable results in everyday industrial applications.
