In-ground telescopic piston lift for commercial vehicles DIAMONDLIFT 64/2-Piston Stertil-Koni

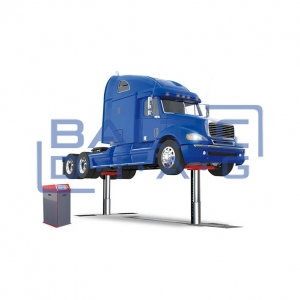

In-Ground Telescopic Piston Lift for Commercial Vehicles DIAMONDLIFT 64/2-Piston Stertil-Koni

Country of origin: Netherlands, warranty period – 24 months

Base version: DIAMONDLIFT ebright 64 – 2 × 15,000 kg = 30,000 kg (one fixed – one movable piston)

Other available versions:

• Control unit DIAMONDLIFT ebright 96 – 3 × 15,000 kg = 45,000 kg (one fixed – two movable pistons)
• Control unit DIAMONDLIFT ebright 128 – 4 × 15,000 kg = 60,000 kg (one fixed – three movable pistons)
• Control unit DIAMONDLIFT ebright 70 – 2 × 16,000 kg = 32,000 kg (one fixed – one movable piston)
• Control unit DIAMONDLIFT ebright 105 – 3 × 16,000 kg = 48,000 kg (one fixed – two movable pistons)
• Control unit DIAMONDLIFT ebright 140 – 4 × 16,000 kg = 64,000 kg (one fixed – three movable pistons)

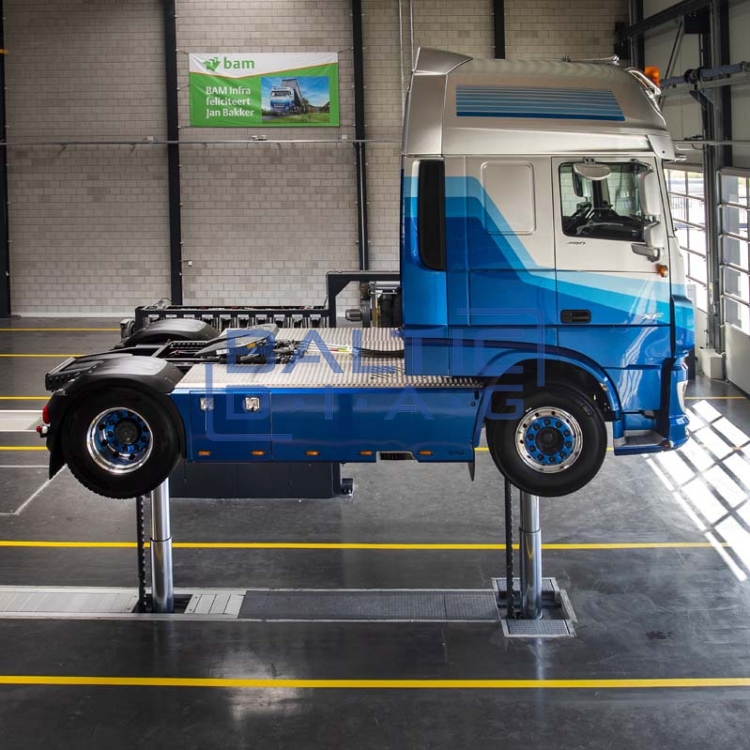

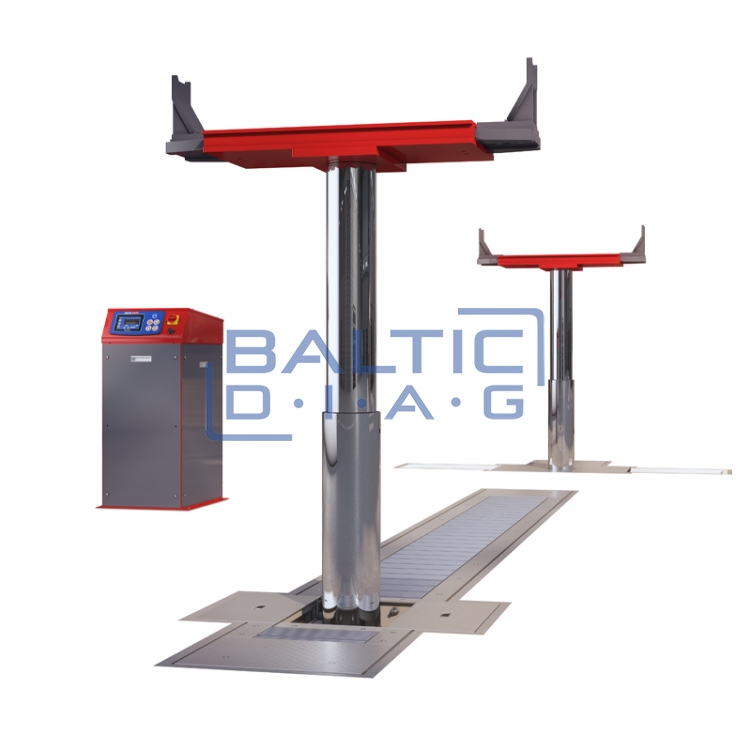

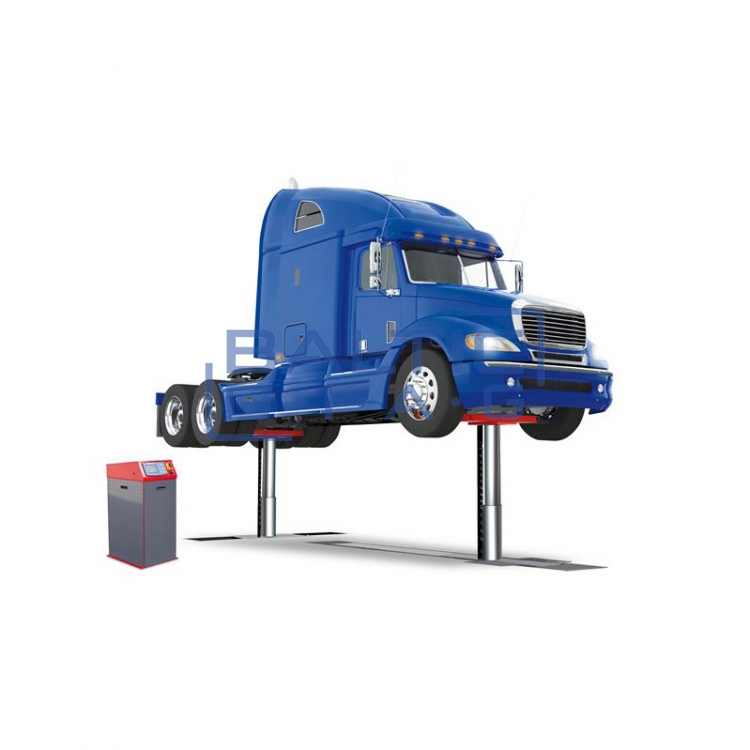

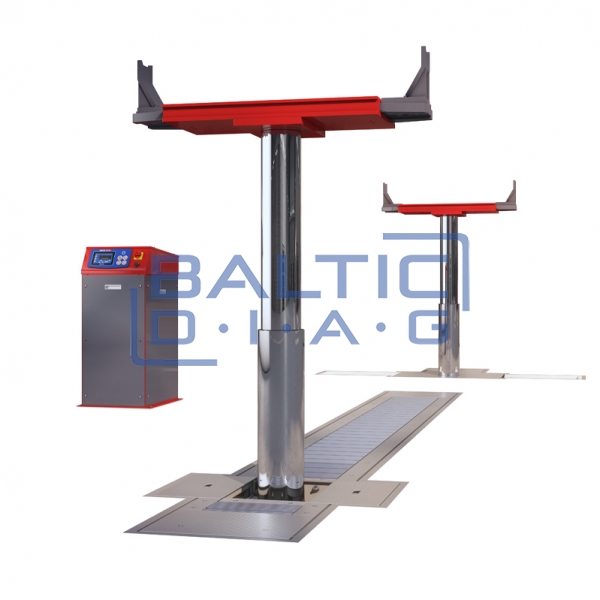

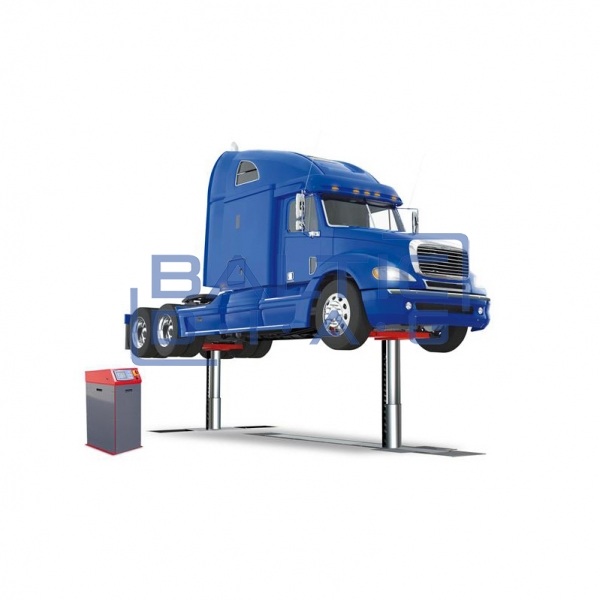

The DIAMONDLIFT 64/2-Piston is the most advanced in-ground piston lift on the market, designed for safe, efficient, and long-lasting lifting of commercial vehicles. The Stertil-Koni DIAMONDLIFT system is built with maximum safety, eco-friendliness, durability, and ergonomics in mind. With various configuration and installation options, the lift is suitable for both new workshops and renovation projects, even under challenging construction conditions.

Features:

• Top-level safety: ALI/ETL-Intertek certified, with 21 mechanical locking positions at 75 mm intervals starting from 220 mm height – ideal for tire service centers.
• Smart ebright control system: 7-inch color touchscreen with intuitive user interface, PIN code protection, and operability even with gloves.
• Environmentally friendly solution: Only 18 liters of biodegradable hydraulic oil used per piston; all hydraulic components are located above ground – no risk of soil contamination.
• Mechanical locking system: Gravity-type lock that can also serve as a parking lock – holds the vehicle without pressure in the pistons.
• Durable design: Hard-chrome plated pistons with protected internal seals; all fasteners are corrosion-protected.
• Installation options: Choose between Cassette-type or Frame-type mounting models.

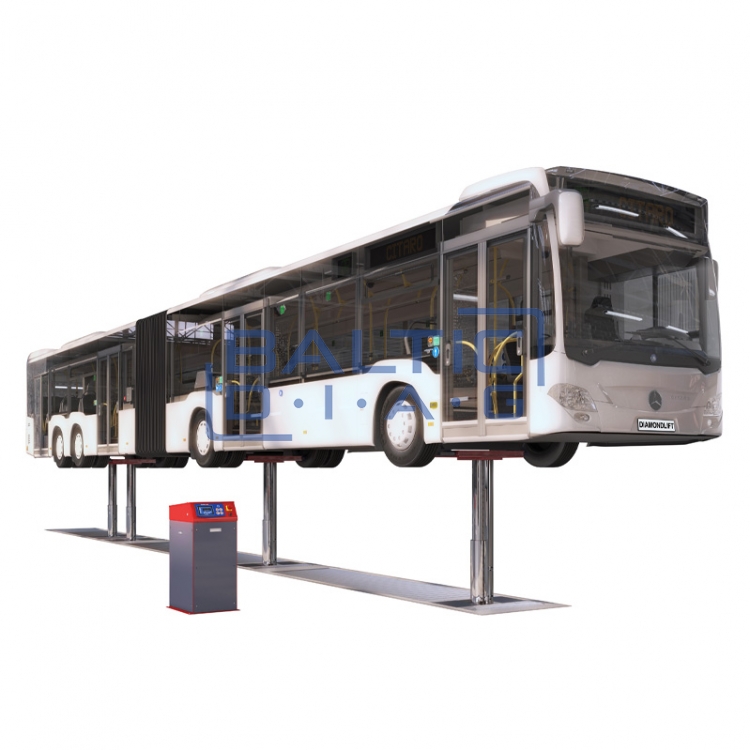

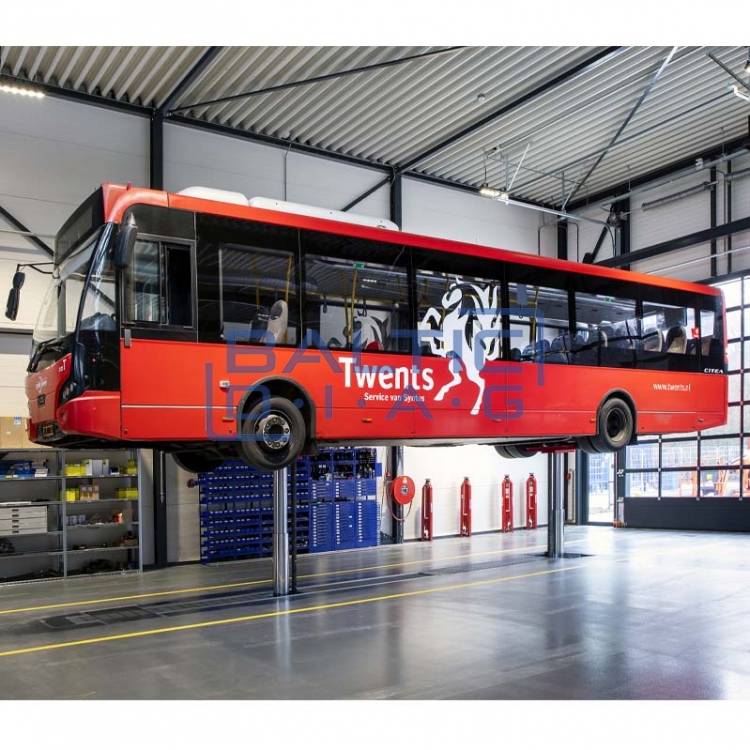

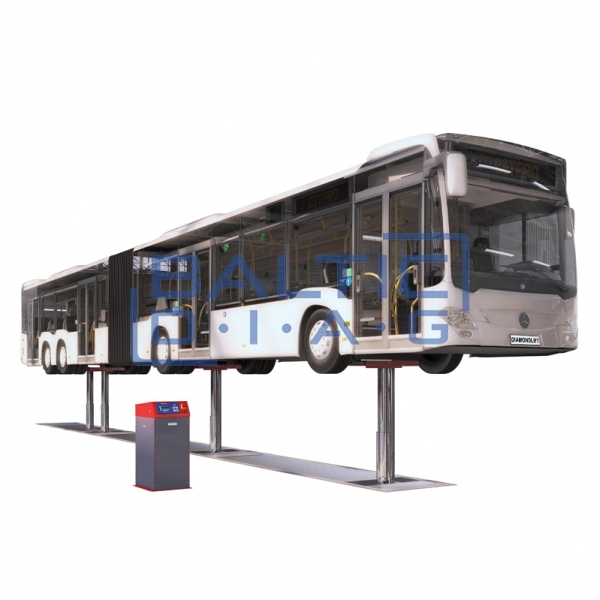

• Standard or Continuous Recess: The Continuous Recess® version is ideal for low-floor buses and public transit vehicles, preventing damage to the undercarriage.
• Smooth operation: The movable lifting unit slides on UHMW polyethylene tracks over stainless steel rails – no rollers, no maintenance required.
• Rolling cover system: Anodized aluminum covers with anti-slip surface, resistant to wheel loads up to 6,000 kg and point loads up to 3,400 kg (on a 5×5 cm contact area).
• Automatic Wheelbase Positioning (AWBP): Allows pre-programming of lifting positions for various vehicle types.
• Additional safety features: Ultrasonic sensors for synchronization, visual and audible safety alerts, optional wired remote control.

Technical Specifications:

• Model: DIAMOND 64/2-Piston
• Lifting capacity: 30,000 kg
• Lifting height: 1,850 mm
• Lifting time: 90 seconds
• Compressed air supply: 140 LPM at 6.2 bar
• Electrical supply: 208-230/460/575 V

CASSETTE VERSION

• The cassette version features a pre-fabricated frame with a DIAMOND GUARD protective coating. This coating protects the lift from electrolysis and workshop fluid corrosion. Travel ranges available: 3,000 mm, 4,000 mm, or 5,200 mm.

FRAME VERSION

• The frame version is installed directly into a concrete pit and features a modular structure that allows adjustable travel range. It can be equipped with either aluminum rolling covers or steel sliding plates.

Independent Mechanical Locking

• Each piston has its own mechanical safety lock that automatically engages during lifting. This system provides maximum safety even in case of hydraulic system failure – the vehicle remains securely held.

Large Horizontal Travel Ranges

• The pistons can travel across a wide horizontal range, allowing precise lift point positioning for various vehicle lengths – from buses to trucks. This enhances workshop flexibility and efficiency.

ebright Smart Control System

• Controlled via a 7-inch color touchscreen, the system offers an intuitive interface, enables control of multiple pistons, real-time monitoring, and PIN code protection. Usable even while wearing gloves.

Power Unit Above Ground

• All hydraulic pumps and electronics are housed in an above-ground control cabinet. This provides easy access for maintenance and reduces repair time. It also protects the system from environmental factors, as no components are installed below ground.
