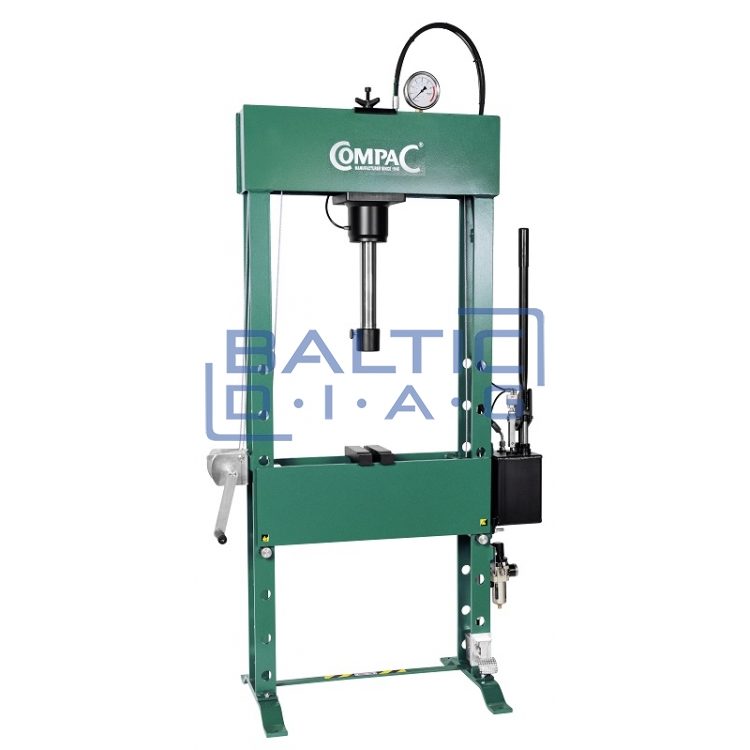

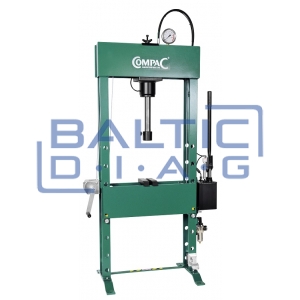

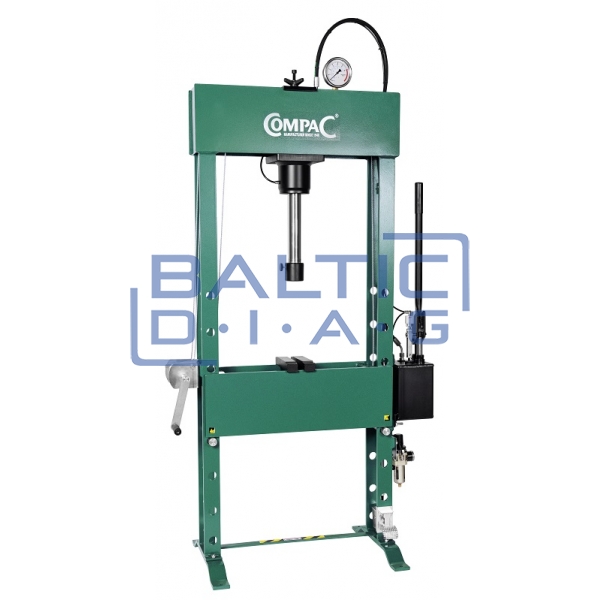

Hydraulic press with pressure gauge 30 tons, HP30

Hydraulic press with pressure gauge 30 tons, HP30

The HP30 hydraulic press is a great tool for heavy-duty and precise pressing jobs. With a pressing force of 30 tons and a built-in pressure gauge, this press provides reliable force control, allowing you to perform various jobs efficiently and accurately. Manual control gives the operator complete control and flexibility during work. The HP30 hydraulic press is a powerful and precise solution that will meet all your professional workshop needs!

Features:

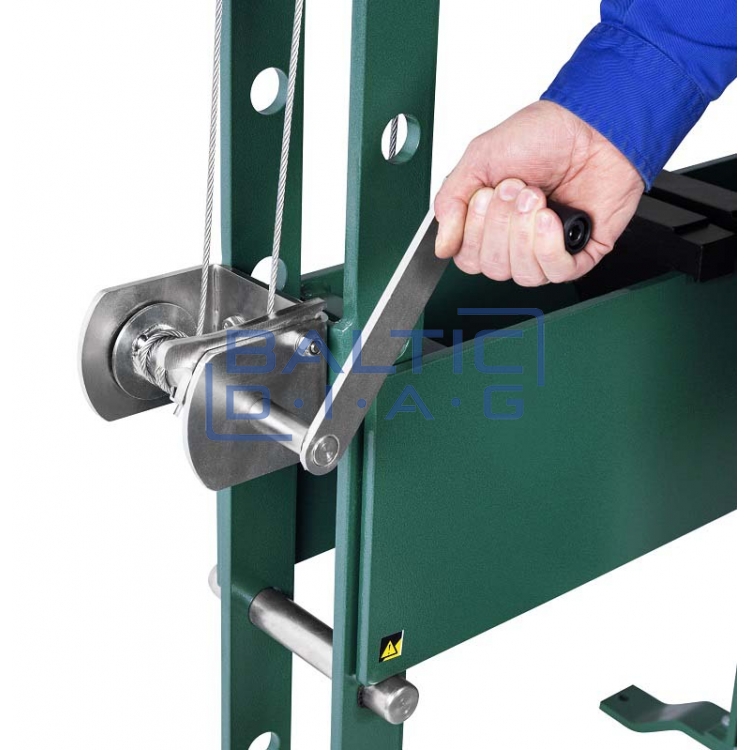

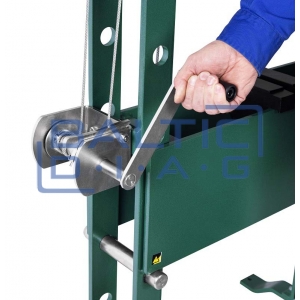

• Completed with workbench lifting mechanism
• Extra long cylinder stroke

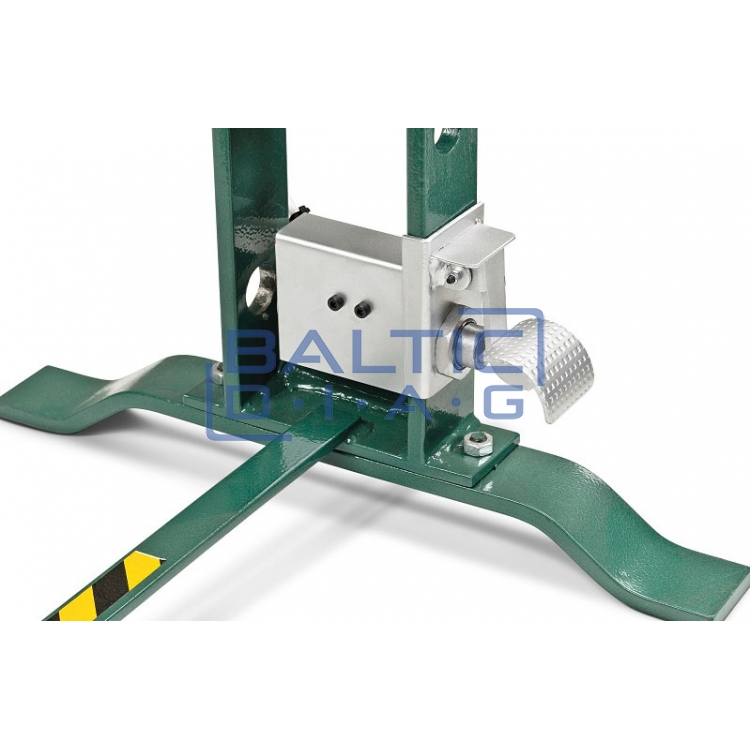

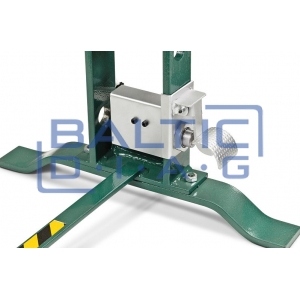

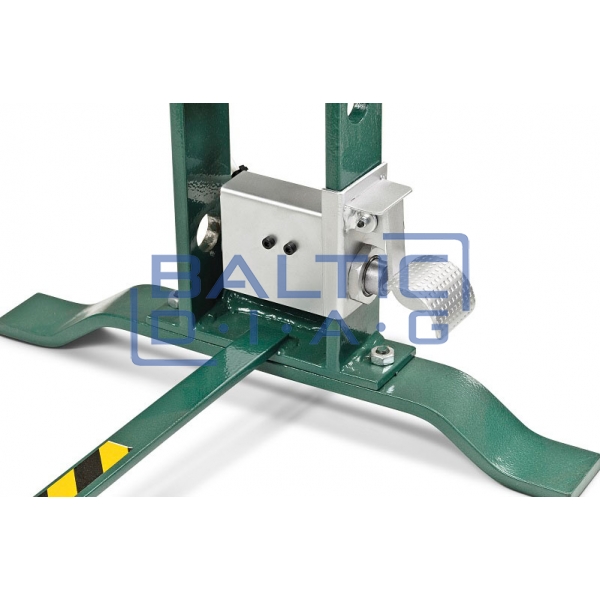

• Foot pedal-controlled lowering of the pressing cylinder to the workpiece
• Built-in pressure relief system using a handle

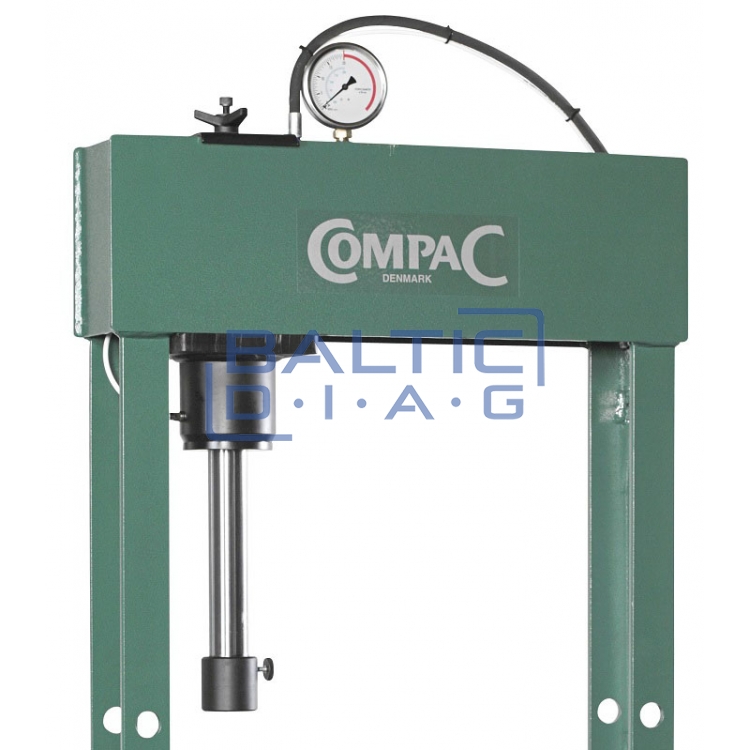

• Side-moving pressing cylinder
• Sturdy, chrome cylinder
• Air inlet connection has a water collection filter

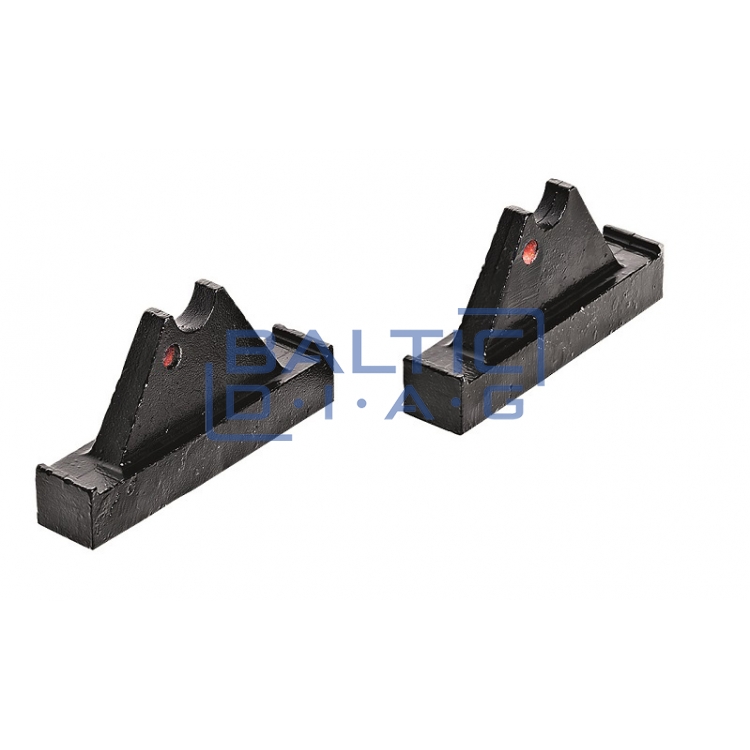

• Two working V-shaped workbenches

Technical parameters:

• Pressing power: 30 tons
• Speed ​​per stroke with load: 9.0 mm
• Speed ​​per stroke without load: 4.0 mm

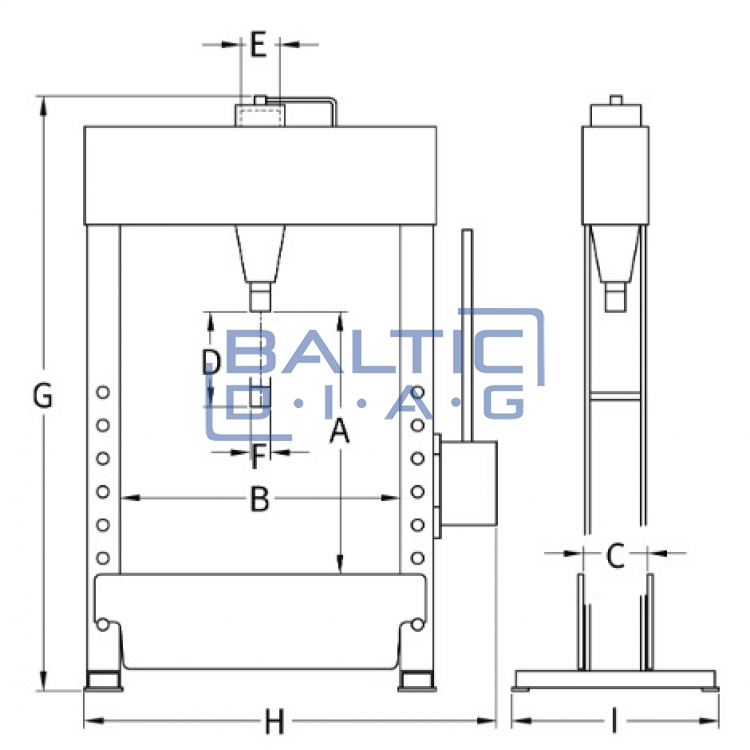

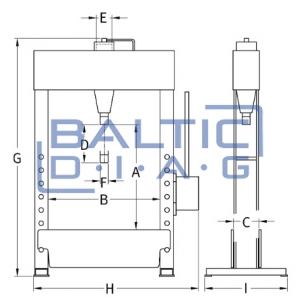

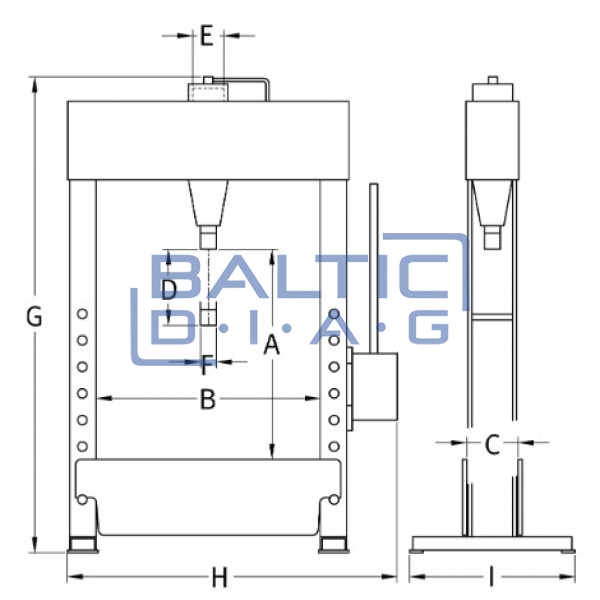

• Working height (A): 825 mm
• Width between columns (B): 600 mm
• Column thickness (C): 140 mm
• Cylinder stroke (D): 240 mm
• Cylinder diameter at the top (E): 90 mm
• Working cylinder diameter (F): 70 mm
• Height (G): 1800 mm
• Width (H): 980 mm
• Depth (I): 505 mm
• Weight: 160 kg
• Package dimensions: 600 x 900 x 2150 mm
