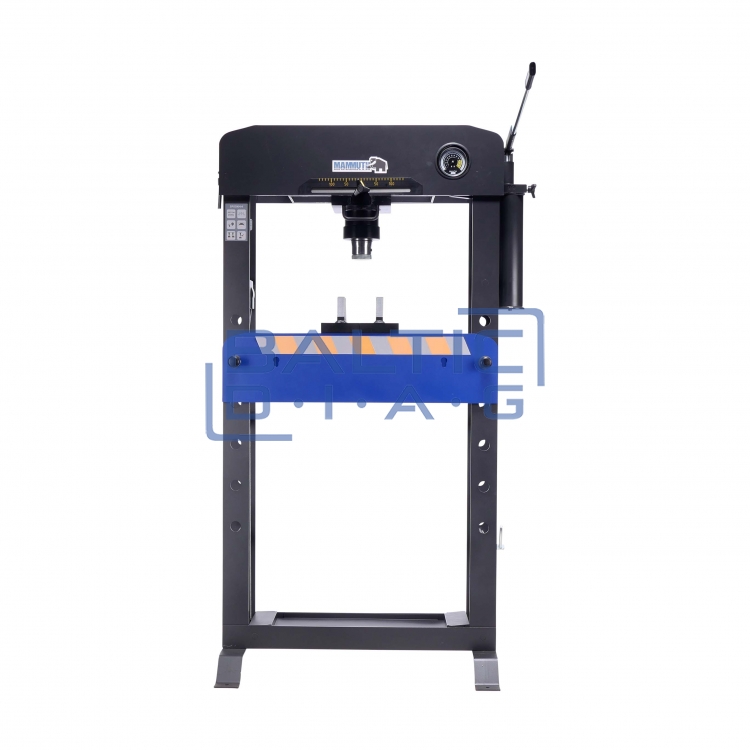

Hydraulic press 50t MAMMUTH SP50XHM

Hydraulic press 50t MAMMUTH SP50XHM

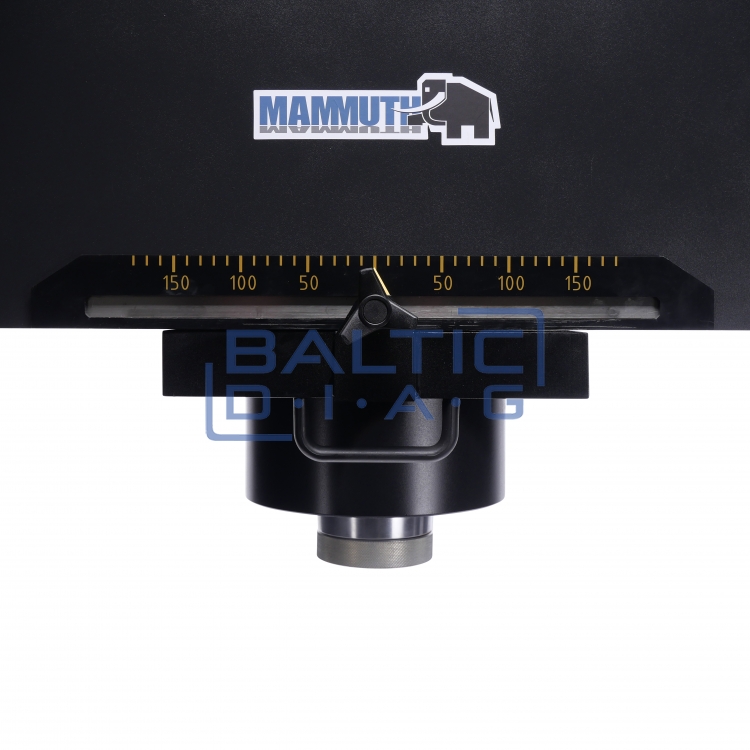

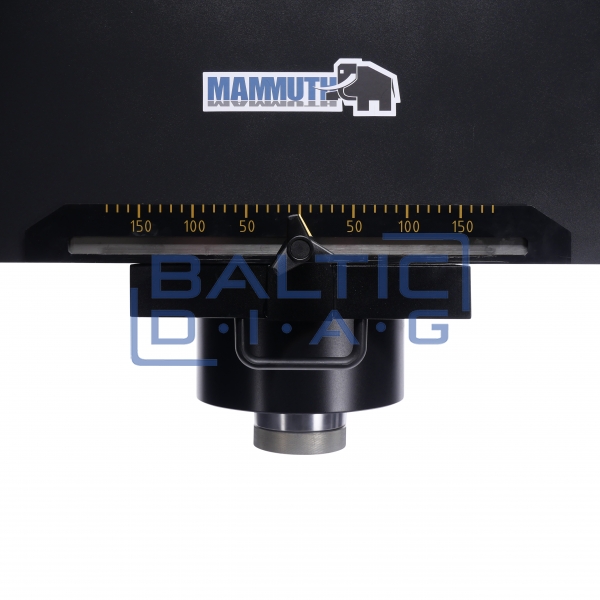

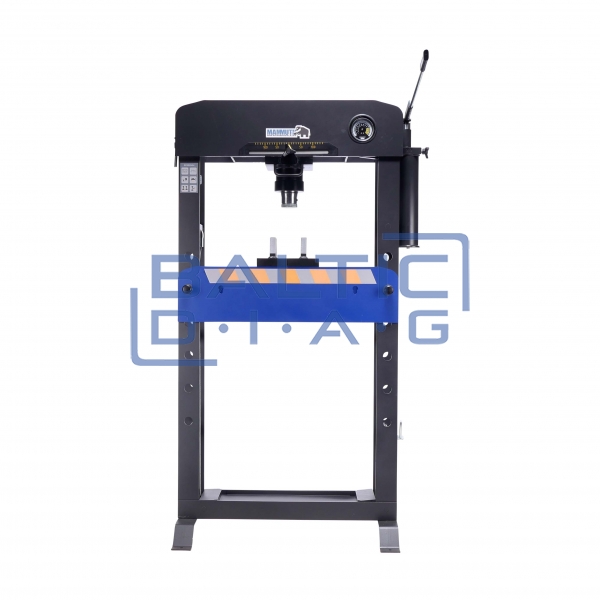

This Mammuth press is extremely suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other press work where great force is required. The press has a fully welded solid frame. The pressure in kilograms can be clearly read on the integrated pressure gauge. The hydraulic cylinder can be moved in width (with bearings). The cylinder is also equipped with an interchangeable recording press head and integrated hydraulic two-stage pump. This built-in two-stage system provides a large stroke at low back pressure and a small controllable stroke at higher back pressure, so pressing work can be performed accurately. The work bed is easy to adjust in height using the winch.

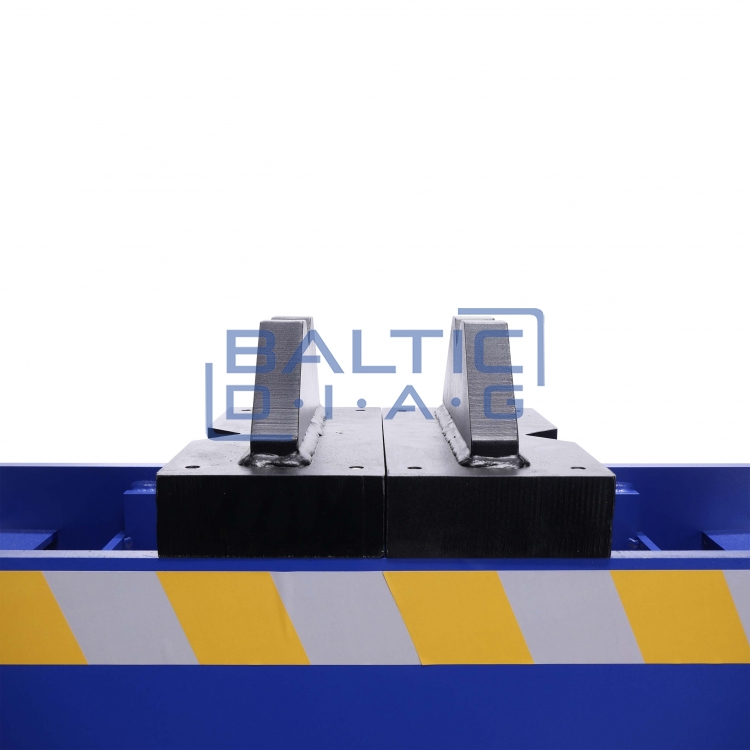

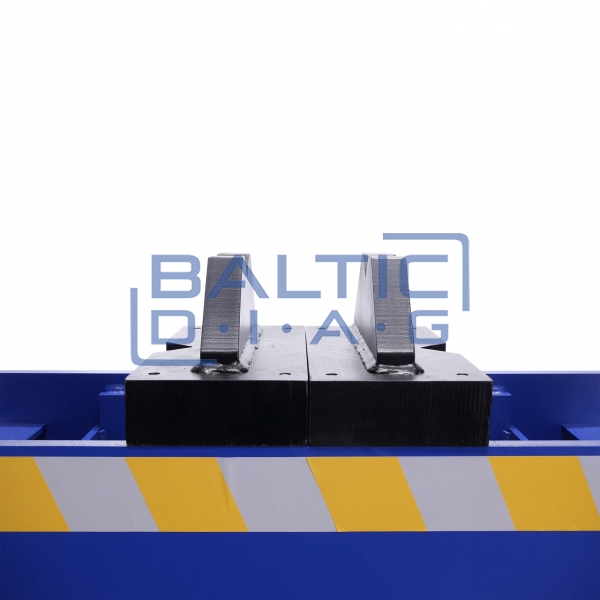

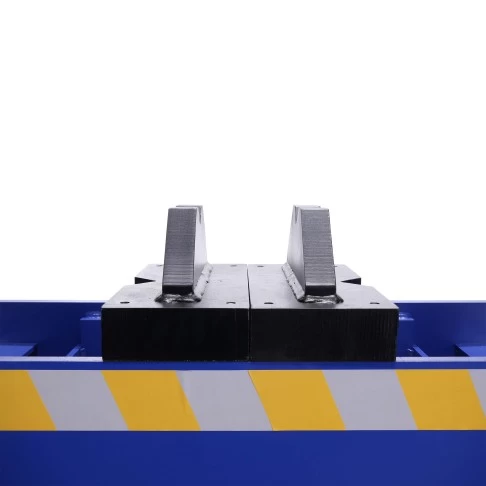

The press comes standard with two multifunctional press blocks and a parts tray.

Technical specifications:

• Capacity: 50 tons
• Bed width: 750 mm
• Bed depth: 200 mm
• Minimum distance bed/cylinder: 120 mm
• Cylinder stroke: 200 mm
