Name: Hydraulic press 100T for bearings, shafts, and pipes Mammuth
Brand: Valkenpower
SKU: SP100XHAM
Price: 4670.00 EUR
Availability: InStock

Hydraulic press 100T for bearings, shafts, and pipes Mammuth

Pre-order

4,670.00€

Ex Tax: 3,859.50€

Manufacturer:: Valkenpower
SKU: BD60100

Valkenpower

Prices include VAT

Qty

Add to Cart

Add to Wish List

Want to buy or learn more?

Fill out the inquiry form

Information

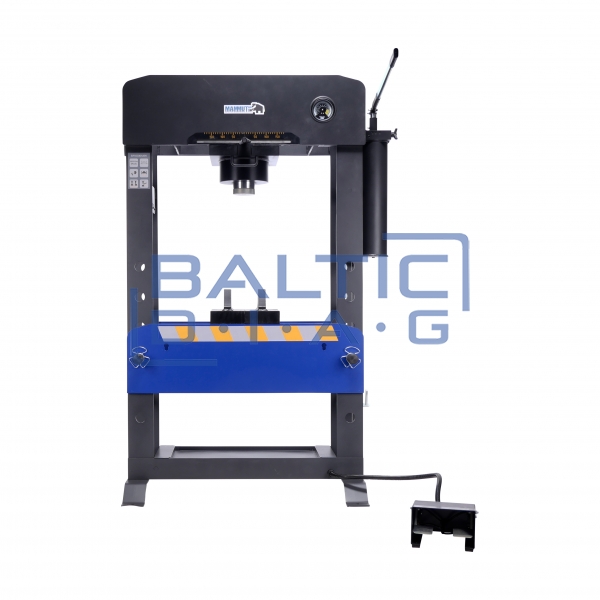

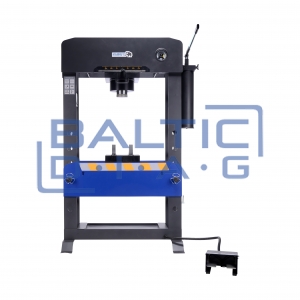

Hydraulic Press 100T for Bearings, Shafts, and Pipes Mammuth

Country of origin: Netherlands, warranty period - 24 months

This 100-ton hydraulic press Mammuth is a powerful and reliable tool designed for mounting bearings, pressing shafts and bolts, bending pipes, and other pressing tasks that require high force. Its sturdy, fully welded frame ensures durability, while the integrated manometer allows for easy pressure monitoring. The pneumatic pump control enables operation both with a foot pedal and manually.

Functions:

Sturdy, welded frame ensures stability and safety

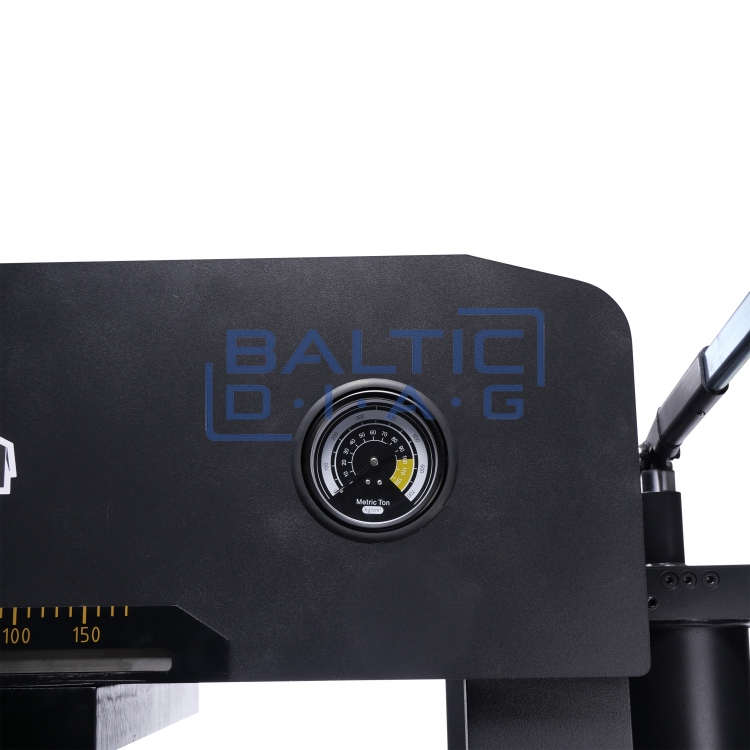

Integrated manometer for clear pressure monitoring

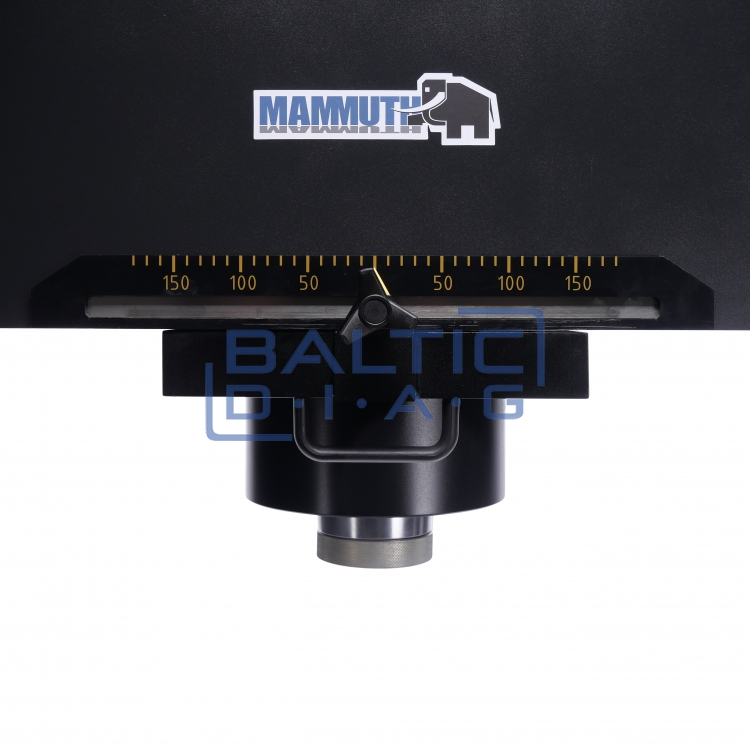

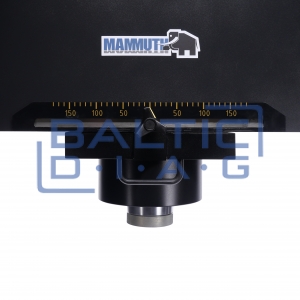

Hydraulic cylinder with interchangeable pressing heads
Two-stage hydraulic pump for precise operation
Adjustable working bed height with a winch
Pneumatic system – operation via compressed air using a foot pedal or manually

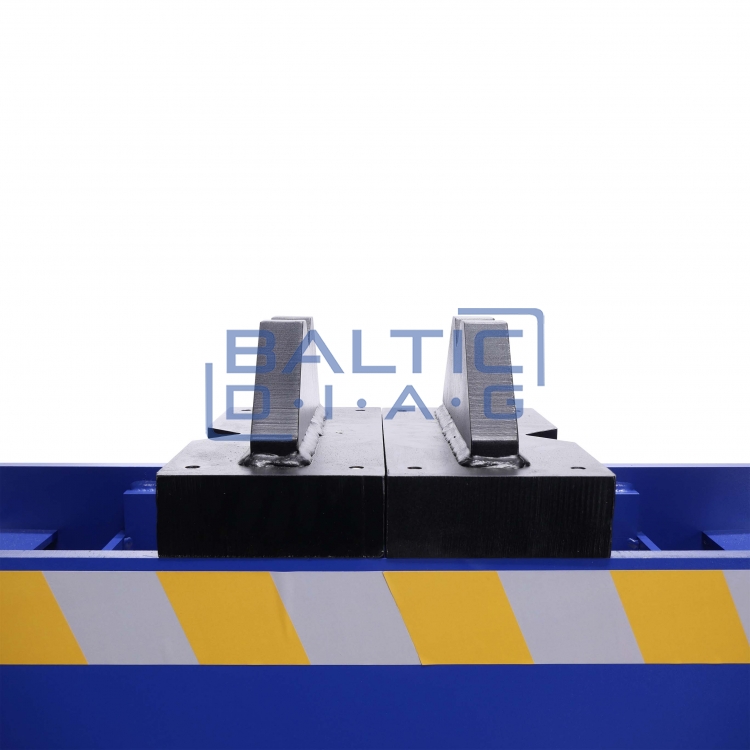

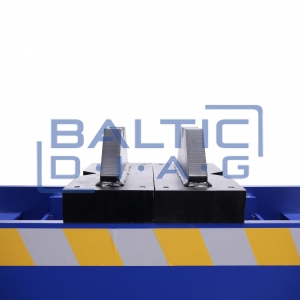

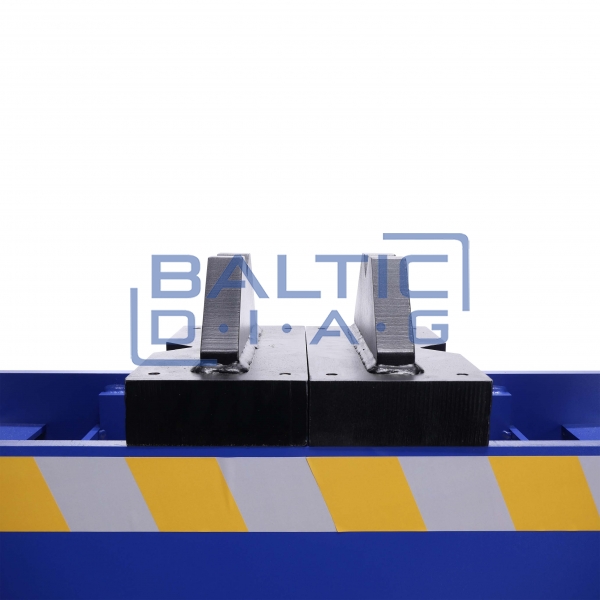

Includes two multifunctional pressing blocks and a parts tray

Technical Specifications:

Capacity: 100 tons
Working air pressure: 8-12 bar
Base width: 850 mm
Base depth: 280 mm
Minimum distance between the bed and cylinder: 185 mm
Cylinder stroke: 300 mm
