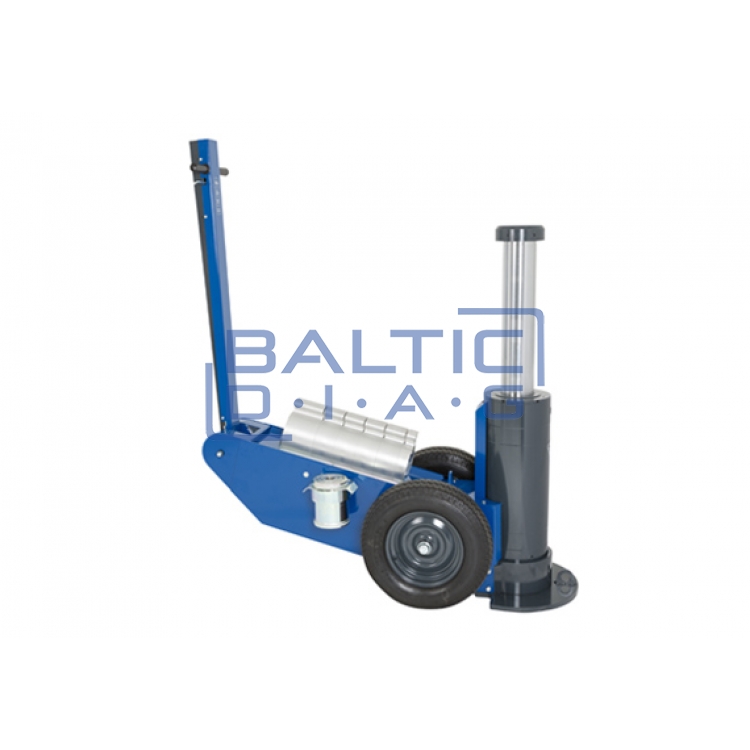

High capacity pneumatic-hydraulic jack AC Hydraulic 150-1H

AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

High tonnage pneumatic-hydraulic jack for mining and construction industry

Description:

- Designed for outdoor maintenance in heavy tonnage heavy industrial equipment

- The construction is made entirely of solid steel to adapt to tough working environments

- Large rubber tires allow easy positioning on difficult surfaces

- Innovative chassis design simplifies jack maintenance and even changing wheels at the workplace

- High ground clearance for easy use in difficult areas

- Multi-position handle for easy tilt and optimum safety during lifting and lowering

- Safety valve prevents overload, jamming or other malfunctions caused by hydraulic fluid leakage

- Manual emergency control for optimum safety during lifting and lowering

- Manufacturer: Denmark

- Warranty: 3 years

Technical parameters:

- Lifting capacity: 150 tonnes

- Minimum height: 950 mm

- Maximum height: 1600 mm

- Case length: 1675 mm

- Handle length: 1300 mm

- Width with wheels: 685 mm

- Required compressed air pressure: 10 bar

- Required compressed air flow: 1200 L / min

- Weight: 546 kg
