Headlamp adjustment stand 433-HA Hofmann
Headlamp adjustment stand 433-HA Hofmann
New

Headlamp adjustment stand 433-HA Hofmann

The price of the equipment may vary depending on the configuration!
  • SKU: BD70562
4,999.00 €

Prices shown include tax

Send Message

Description

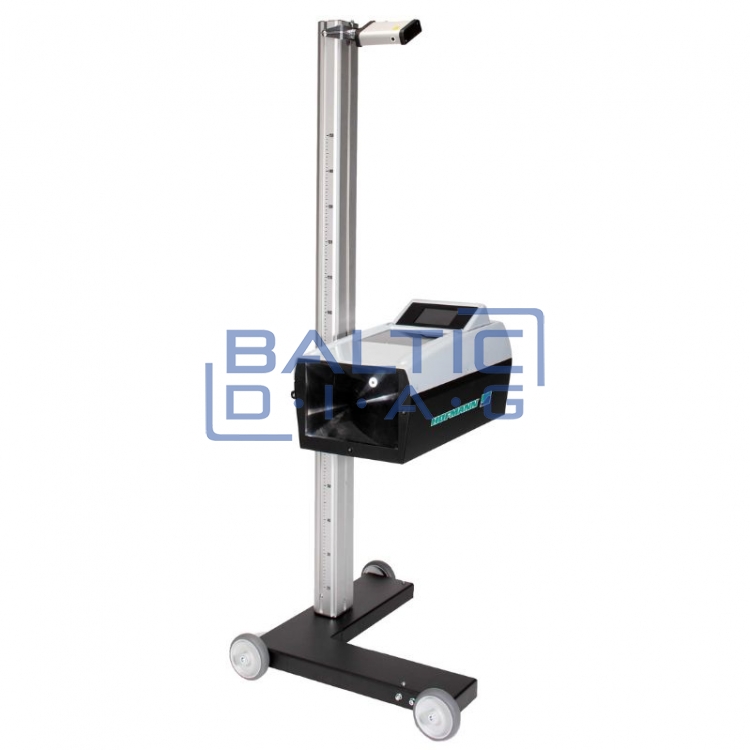

Headlamp Adjustment Stand 433-HA Hofmann

Country of origin: Italy, warranty period – 24 months

The price of the equipment may vary depending on the configuration!

The 433-HA is a universal headlamp adjustment stand designed for vehicles with both left-hand and right-hand drive, complying with European and American low-beam standards. This system is ideal for service centers and body repair workshops, ensuring precise headlight alignment diagnostics, ease of use, and the ability to store data for documentation and quality control purposes. With intuitive software, real-time data capture, and compatibility with various wheel sizes, this device offers excellent functionality and user convenience.

Features:
  • Optical chamber: durable powder-coated steel body, thermoformed plastic cover, 280x200 mm Fresnel lens protected with glass, reverse display screen, high-capacity lithium battery for extended operation
  • Base: shared base for wheels and rails, ±5° column rotation with technopolymer bearings for accuracy
  • Column: height adjustable from 250 to 1500 mm (from lens center), 4 ball-bearing wheels for easy movement, ergonomic handle
  • Laser unit: cross laser positioned above the column for precise centering of the beam source
  • Robust construction: meets ISO 10604 standard, long-lasting and mechanically precise design
Technical Specifications:
  • Height adjustment range: 250–1500 mm
  • Fresnel lens dimensions: 280 x 200 mm
  • Power supply: high-capacity lithium battery
  • Column rotation angle: ±5°
  • Movement system: 4 wheels with ball bearings
  • Compliance with standard: ISO 10604
Optional Modules:
  • V-shape floor rails (3 m, 2 sections)
  • L-shape high-precision floor rails (3 m, 2 sections)
  • Heavy-duty in-ground precision rails (3.5 m, 2 sections)
  • Extensions for all rail types (0.70–0.75 m, 2 sections)
Optional Accessories:
  • Integrated printer, dust cover, electronic spirit level, LAN interface, Bluetooth module, calibration device
