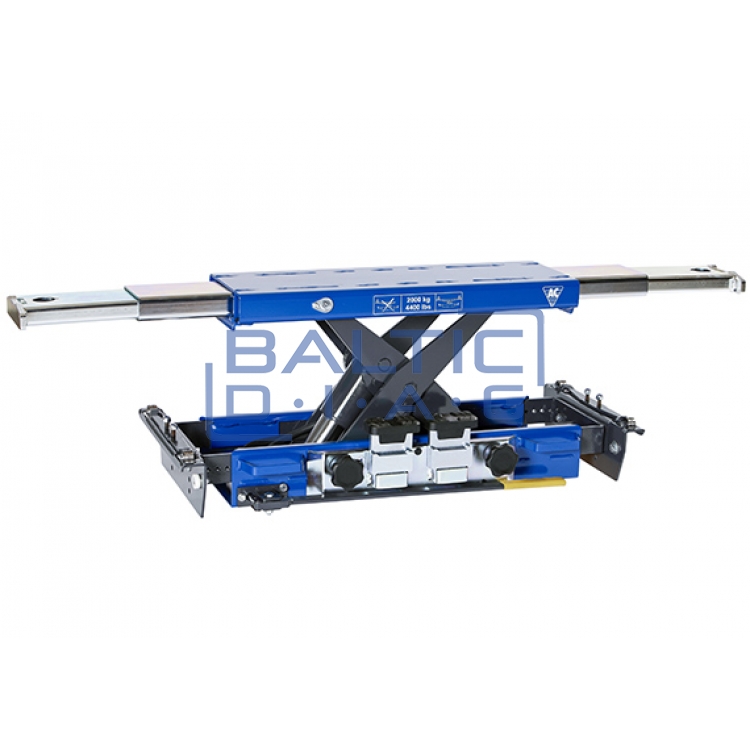

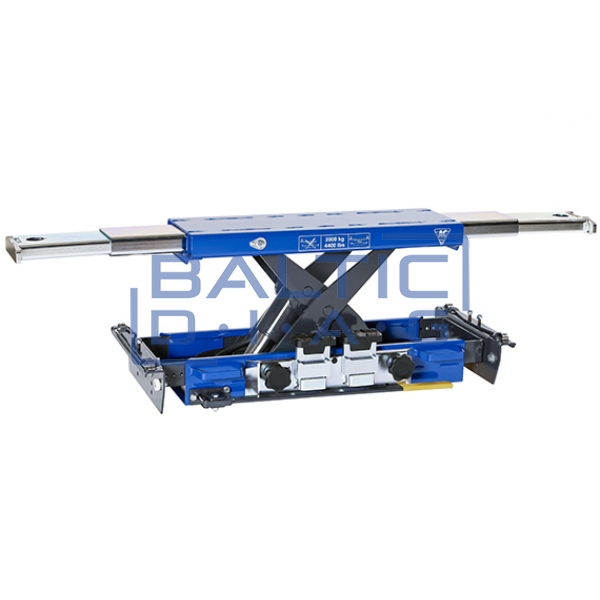

Hand hydraulic axle jack AC Hydraulic SD20L
Hand hydraulic axle jack AC Hydraulic SD20L

Hand hydraulic axle jack AC Hydraulic SD20L

  • SKU: BD13281
1,930.00 €

Prices shown include tax

Send Message

Description

AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for frame parts

Manual hydraulic axle jack for passenger cars and vans


Description

  • Fast and efficient lifting with a manual double-acting pump
  • Low 180 mm height makes it convenient for use with low-ground-clearance vehicles
  • Adjustable support beam can extend up to 1610 mm
  • Unique height-adjustable support arm system designed to fit all modern lifts and pits
  • Two-hand lowering operation with emergency release, automatic safety locking device, and overload valve for optimal safety
  • Supplied with 3 extension sets (10/40/85 mm) and a rubber pad for vehicle body protection


Specifications:
  • Lifting capacity 2.0 tons
  • Lifting stroke 250 mm
  • Minimum height 180 mm
  • Support beam length 780 - 1610 mm
  • Jack width 780 - 1180 mm
  • Structure height 120 mm
  • Structure depth 250 mm
  • Weight 105 kg


Additional equipment:
  • HSD Pneumatic connection kit
  • FSD1 Extensions for height increase 130 mm (2 units required)
  • FSD2 Rubber support 40 mm (2 units required)
  • FSD3 Rubber support 80 mm (2 units required)
  • FSD5 Saddle with thread (106 - 240 mm) (2 units required)
  • FSD6 Adjustable saddle for height increase (32 - 92 mm) (2 units required)
  • FSD7 Extension for height increase 60 mm (2 units required)
  • GS1 Rubber pad for FSD6 (2 units required)
  • GS2 Rubber pad for 10 mm height increase (2 units required)
