GYSPOT ALU 66 aluminum straightening machine

GYSPOT ALU 66 aluminum straightening machine

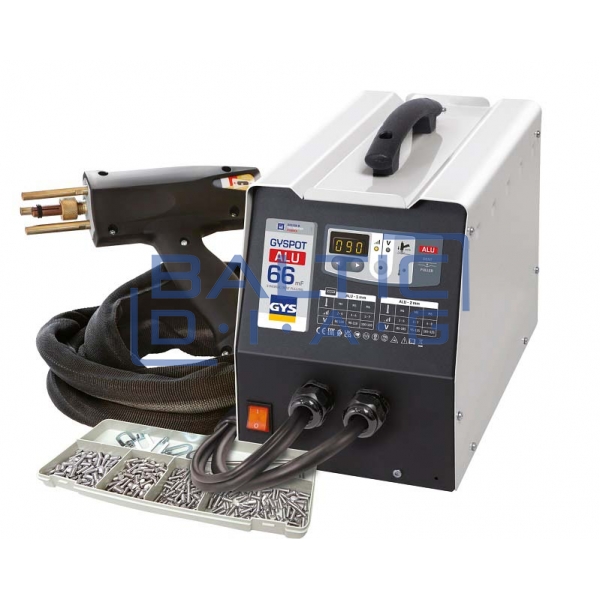

GYSPOT ALU 66 is a specialized device for smoothing and repairing aluminum body parts. This device allows you to weld the studs directly onto the surface to remove various dents or other impact effects without removing the paint layer. GYSPOT ALU 66 is a reliable and efficient solution that allows professionals to repair body components made of aluminum, which helps to save time and maintain a high quality of work.

Features:

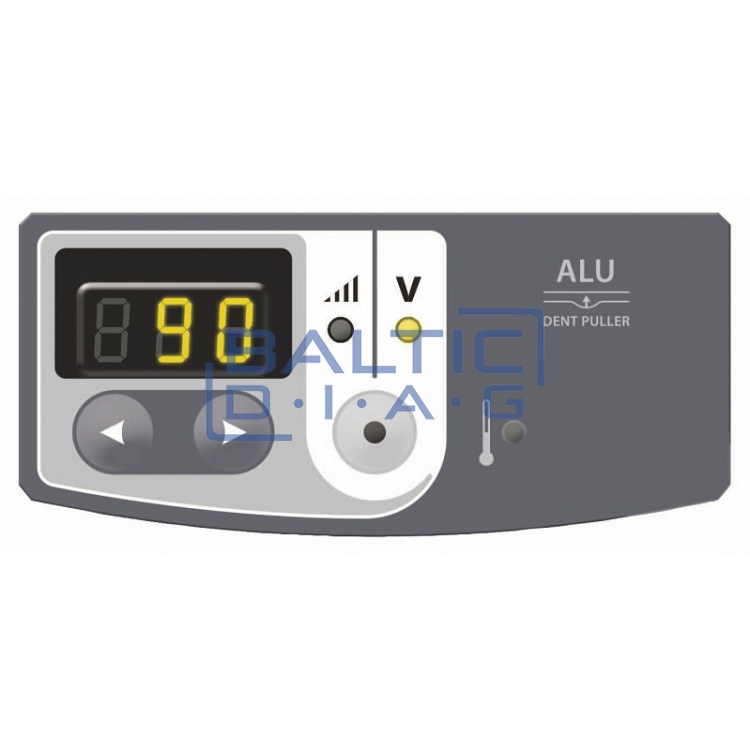

• Microprocessor control - two modes can be selected: voltage (from 50 V to 200 V) and power (from 0 to 10)
• Capacitor Discharge 66 mF - Fast welding capability (3 milliseconds)

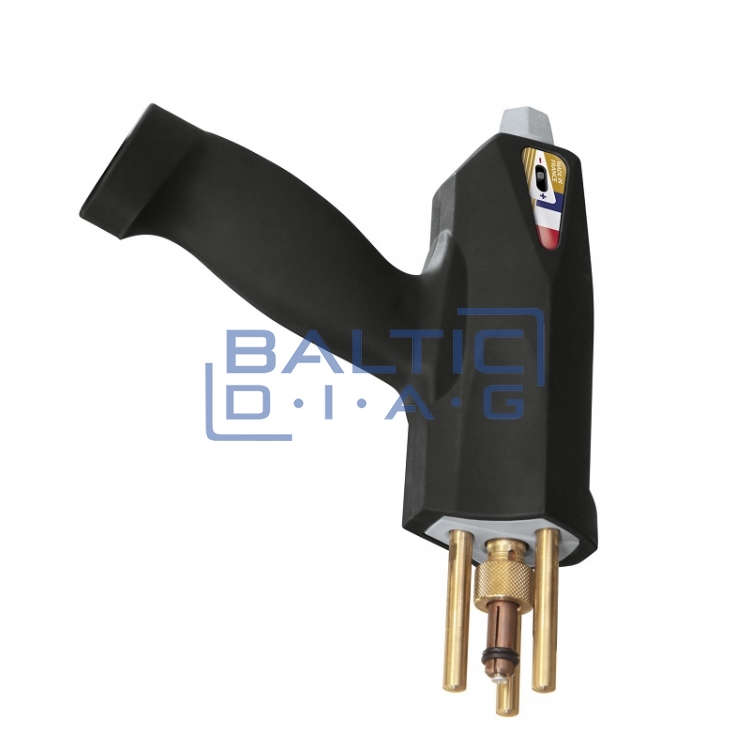

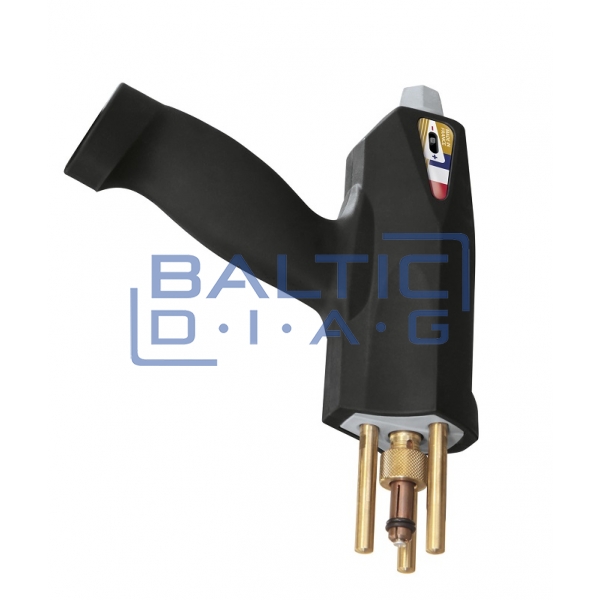

• Automatic welding gun - the gun does not have a trigger, the welding process starts automatically when the tip of the stud comes into contact with the gun. The ground contact is integrated into the gun and its spring force can be adjusted.
• High quality contacts - 3 brass pins ensure better contact and gun stability during welding. They can adapt to any surface.
• Ability to work with studs of different diameters - compatible with M4, M5 and M6 studs

Technical parameters:

• Power supply: 230 V / 1 fz / 50 Hz
• Maximum current: 13000 A
• Welding ALU mode: automatic
• Voltage: 50 - 200 V
• Fuse: 5 A
• Suitability: for vehicle body parts
• Dimensions: 205 x 270 x 370 mm
• Weight: 14 kg

Complete set:

• Deformation straightening device GYSPOT ALU 66
• Automatic welding gun with 3 ground contacts
• Accessories for welding aluminum parts
• Ø4 mm stud holder
