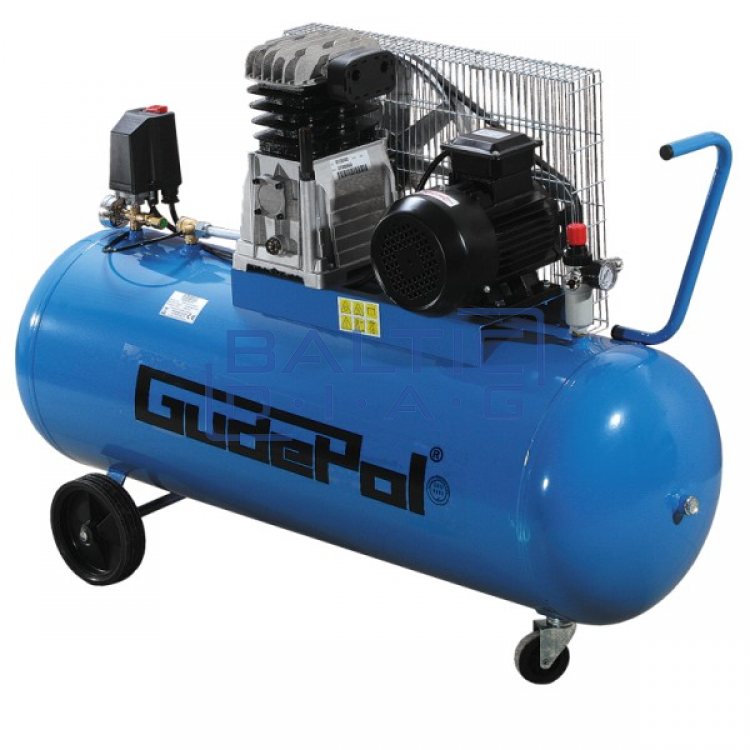

GudePol air compressor 200L 475L / min 10bar

GudePol air compressor 200L 475L / min 10bar

Manufacturer GudePol (Poland), warranty 24 months

Description:

Single-stage reciprocating compressor.

Oil compressor, 2 pistons.

Compressor with electrical connection cable, 400V / 50Hz power supply.

The filter with regulator, manometer and two quick couplings allows you to set the desired pressure at the outlet and connect the two tools.

Compressor pump with exhaust air cooler.

A reciprocating compressor in which the motor is connected to the compressor unit via a belt drive, which reduces the speed of the unit.

Two pistons placed side by side in one cylinder, alternately pumping air.

The cast iron air tank guarantees a long service life and efficient cooling.

Sealing the cylinder pistons with three rings ensures low lubricity of the compressed air.

Due to the continuous cooling through the suction air flow, the modular valve plate ensures a constant air flow.

Simple control of the oil level through the sight glass.

The tank has castors and a handle that makes it easy to transport.

The operation of the compressor is controlled by a pressure switch that ensures its operation in the machine.

Automatic operation at minimum pressure and shutdown when maximum pressure is reached.

Compressor with a safety valve that protects the motor from overload and facilitates restarting the compressor.

Compressed air tank protected by a safety valve and with a valve to facilitate the drainage of the tank.

Technical data:

Suction capacity: 475 l / min

Suction capacity: 29 m3 / h

Bako capacity: 200 l

Maximum pressure: 10 bar

Engine power: 3 kW

Number of cylinders: 2 n0

Degrees of pressure: 1 n0

Voltage: 400 V

Noise: 80 dB

Rpm: 1400 rpm

Dimensions: 150x45x110 cm

Weight: 125 kg
