GTL TRUCK PROFI wheel alignment stand for trucks and semi-trailers

Country of origin: Poland, warranty period - 24 months

Price includes an accessory for performing wheel geometry on semi-trailers.

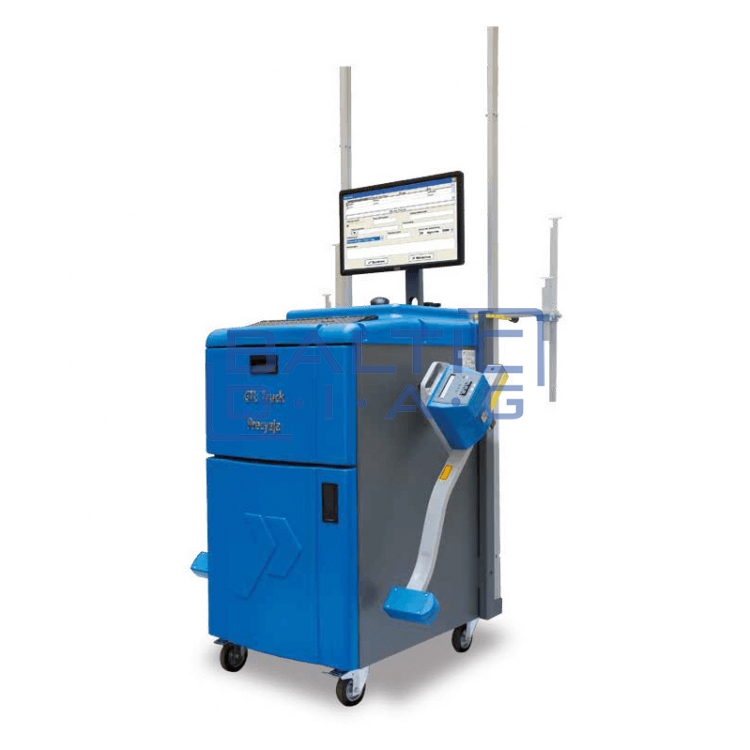

GTL TRUCK PROFI is an advanced computerized wheel alignment stand designed for trucks and semi-trailers. The device, equipped with CCD cameras, is integrated into a convenient central cabinet with a computer and measuring software that includes the "Autodata" wheel geometry database. Thanks to Bluetooth communication modules, the measurement protocol can be quickly generated, saved in the customer database, and printed.

Functions:
  • Precise wheel geometry measurement for trucks and semi-trailers
  • Automatic archiving and printing of measurement data
  • Wireless data transmission via Bluetooth
  • Computer diagnostic software “Truck PC”
  • ITS certificate covering all necessary measuring tools
Technical specifications:
  • Front wheel alignment measurement range: individual ±40, total ±80
  • Rear wheel alignment measurement range: ±1010'
  • Angle measurements: camber ±60, caster angle ±180, kingpin inclination angle ±180
  • Wheel track measurement: ±400 mm
  • Steering angle measurement: ±600
  • Suitable for wheels with a diameter of: 14" - 24"
  • Wheelbase: 1,200 - 2,800 mm
  • Wheel track: 1,500 - 2,300 mm
  • Power supply: 230V 50Hz/60Hz

GTL TRUCK channel diagram

Standard equipment:
  • 1 x cabinet with computer and software
  • 1 x 20” LCD monitor, A4 color inkjet printer, mouse
  • 2 x measuring units
  • 2 x rear wheel targets
  • 2 x truck turntables
  • 2 x clamps
  • 1 x brake pedal depressor
  • 1 x steering wheel holder
  • 1 x “Truck PC” software
  • 1 x service manual
Additional equipment:

Set with a computer package and front plates for alignment

  • 2 x self-centering mechanisms
  • 4 x vertical slats
  • 4 x short vertical slats
  • 4 x extension arms
  • 4 x main targets
  • 2 x toe targets
  • 4 x magnetic holders
  • 1 x mounting for semi-trailer
  • 1 x mounting for trailer
