Gas analyzer for petrol vehicle emission testing ATAL AT508
- SKU: BD70683
Send Message
Description

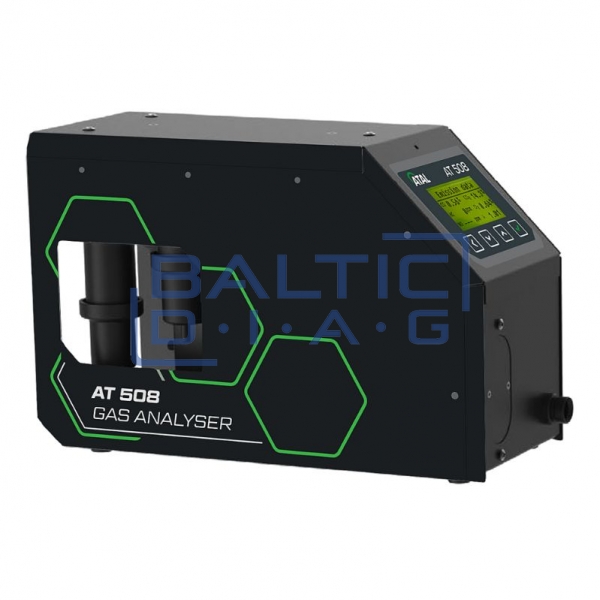

ATAL AT508 Gas Analyzer for Petrol Vehicle Emission Testing
The ATAL AT508 gas analyzer is sold together with a 7-meter long probe and sampling hose.
To ensure proper operation of the equipment, it is necessary to additionally purchase at least one of the following ATAL test stands:
- AT8575094 – 3299.00 € (incl. VAT)
- AT8575095 – 3110.00 € (incl. VAT)
- AT8575092 – 1135.00 € (incl. VAT)
*Without one of these stands, the analyzer will not operate.
Country of origin: Czech Republic, warranty period – 24 months
The ATAL AT508 is a next-generation 5-component exhaust gas analyzer designed for vehicle emission control. This device operates in conjunction with a PC, utilizing the ATAL NDIR optical sensor block and electrochemical cells to measure CO, CO₂, HC, O₂, and NOₓ concentrations with high precision. The analyzer features strong resistance to electromagnetic interference and environmental conditions and ensures long-term reliability. It is equipped with an automatic condensate separator, sealed internal components, and an advanced cleaning system to prevent contamination damage.
Features:
- Suitable for measuring CO, CO₂, HC, O₂, and NOₓ concentrations
- High-precision NDIR technology and electrochemical sensors
- Integrated automatic condensate separation
- 7-meter long sampling probe – convenient for remote access
- Resistant to electromagnetic interference and temperature fluctuations
- Complies with international safety and accuracy standards (OIML, MID)
Technical Specifications:
- Power supply: 230 V AC / 24 V DC
- Power consumption: 60 W
- Weight: 7 kg
- Probe length: 7 m
- Dimensions: 380 × 250 × 150 mm
- Start-up time: up to 10 min (at 25 °C)
- Communication interface: USB (optional Bluetooth)
- Operating temperature: 0 °C to 50 °C
- Storage temperature: -10 °C to 60 °C
- Humidity: up to 90% (non-condensing)
- Compatible OS: Windows 10, 11

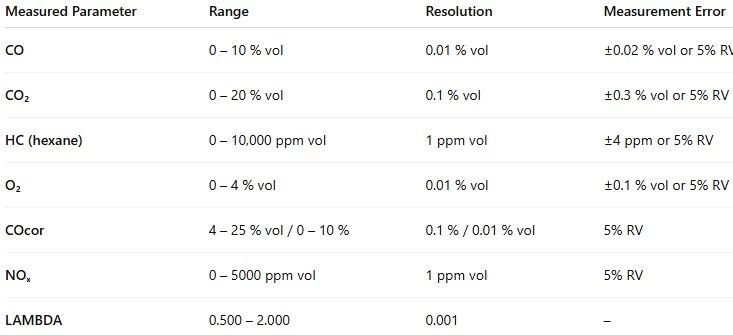

Measurement Parameters:
