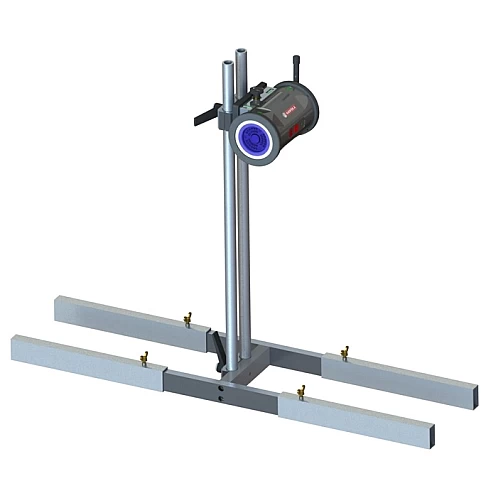

Frame geometry measurement system for commercial vehicles Haweka CMC4000

Frame Geometry Measurement System for Commercial Vehicles Haweka CMC4000

Country of origin: Germany, warranty period – 24 months

Haweka CMC4000 is a mobile and highly accurate frame geometry inspection system for heavy-duty vehicles, complementing the successful AXIS series. With the CMC4000, it is easy to determine the actual condition of a vehicle frame, including horizontal deviation, vertical misalignment, and frame torsion (twist). The system allows all measurements to be carried out without the need for complex additional equipment, and the results are clearly displayed in 2D or 3D graphical formats.

This system is an integral part of the Haweka AXIS4000 system and uses the same camera, ensuring fast and easy integration. Measurement data can be printed in report format, with the level of detail adjustable as needed.

Functions:

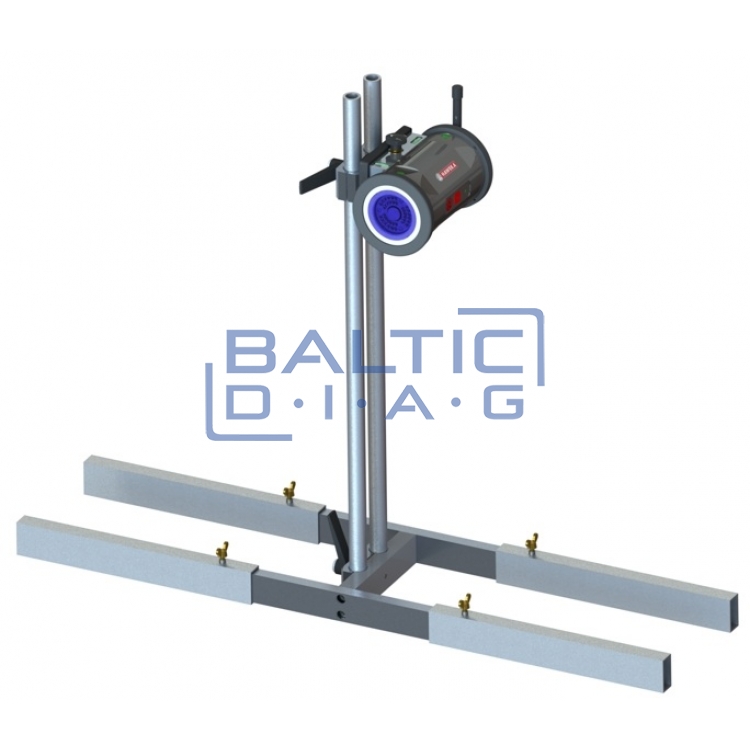

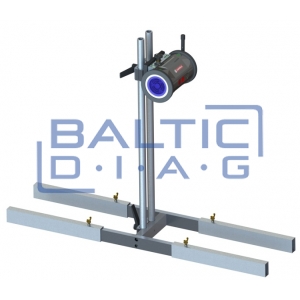

• Fast mounting of the frame scale inside the chassis – no need to remove the fuel tank, spare wheel, or equipment boxes.
• Self-centering scale ensures measurement accuracy.

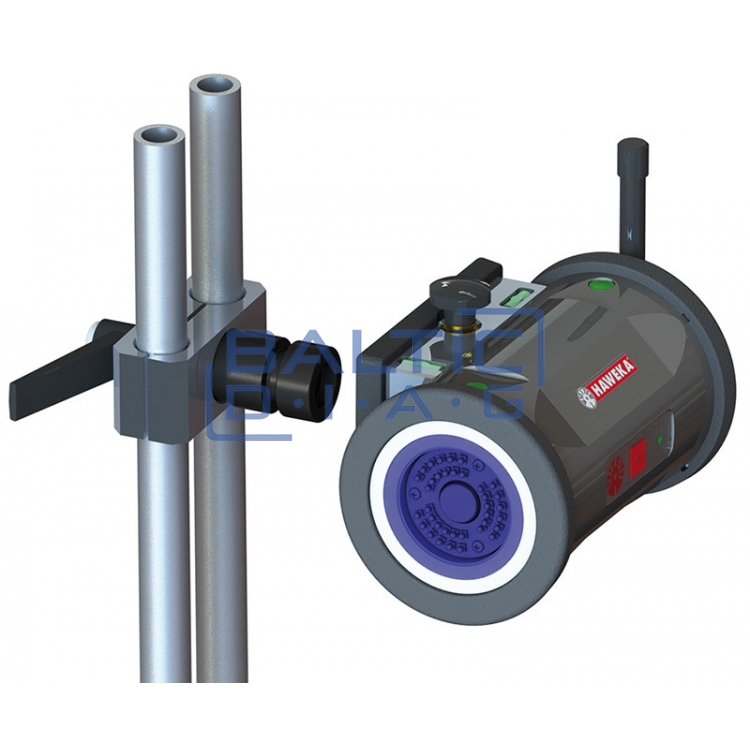

• Data acquisition using a single camera (used in the AXIS4000 system).
• Individually customized software designed for frame measurements.
• Flexible measuring points and matrix selection, particularly useful in deformation zones.
• Clear on-screen instructions assist the operator at every step.
• Measurement results are displayed graphically – in 2D and 3D formats.
• Ability to generate and print a detailed measurement report as required.
• User-friendly and intuitive menu structure, allowing quick switching between display modes.

Technical Specifications:

• Measuring Ranges:
• Horizontal frame offset: 0–750 mm | Accuracy: ±0.5 mm
• Vertical frame offset: 0–750 mm | Accuracy: ±0.5 mm
• Frame torsion: ±18° | Accuracy: ±0.2°
• Maximum measurable frame length: up to 18 m
• Measurable frame width: 750–1350 mm
