Four-Post Parking Lift Extra

Country of origin: China, warranty period – 24 months

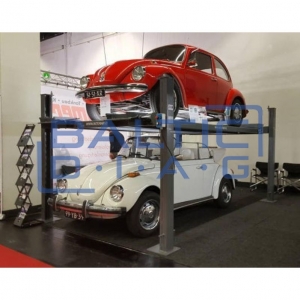

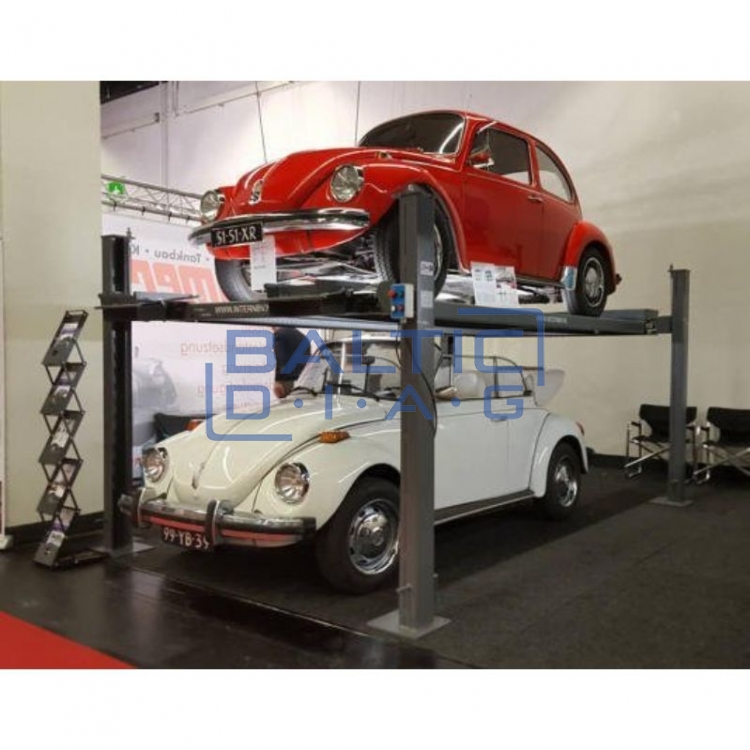

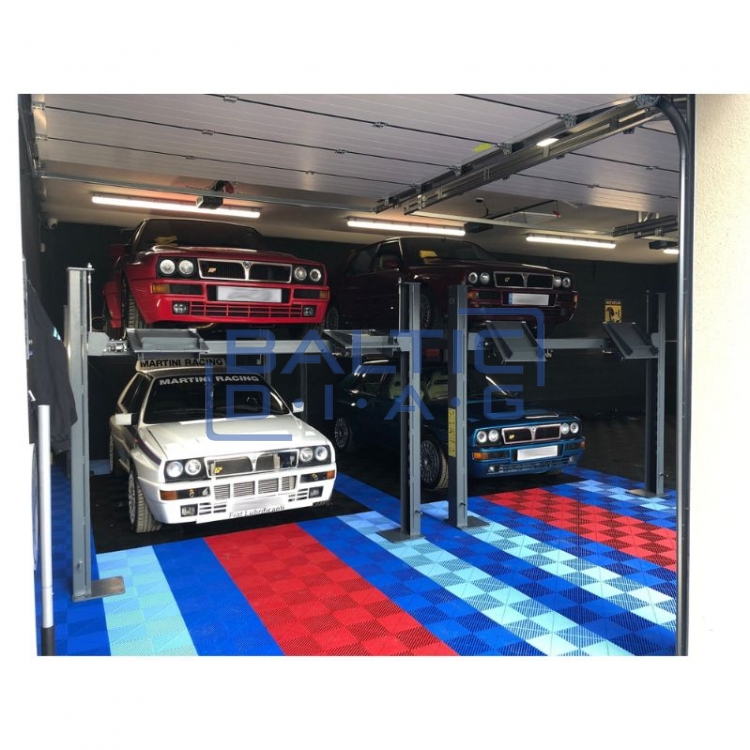

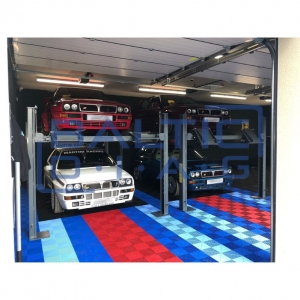

Extra is a powerful and extended four-post hydraulic parking lift designed for parking two vehicles one above the other. This model is 70 cm longer, 20 cm wider, and 37 cm higher than the standard version, making it ideal for taller and longer vehicles such as SUVs or American-type vehicles. This model is frequently chosen by classic car enthusiasts, rental companies, automotive service centers, fleet managers, and private users. Certified as a workshop lift and compliant with CE requirements, it offers a reliable, safe, and efficient parking solution. With an optional caster kit, the lift can also be easily relocated.

Features:

• Increased lifting height – 2270 mm, ideal for taller vehicles.
• Longer and wider platforms – suitable even for long vehicles.
• 2550 mm drive-through width – ensures greater maneuvering convenience.
• Low-profile ramps – for smooth and easy vehicle access.
• Powerful hydraulic cylinder – fast and quiet lifting.
• Button control via the control box – simple and intuitive operation.
• Automatic dynamic safety locks.
• 24 V control voltage – for safe operation.
• Folding ramps.
• High-quality powder coating – long-lasting corrosion protection.
• Can be relocated using the optional caster kit.
• CE certified – approved for use throughout the European Union.

Technical Specifications:

• Lifting capacity: 3500 kg
• Lifting height: 2270 mm
• Clearance height under the platform: 2160 mm
• Width between outer runways: 2090 mm
• Drive-through width: 2550 mm
• Maximum external width: 2750 mm
• Power: 2.2 kW
• Voltage: 230 V, 50 Hz, single-phase
• Control: control box with buttons
• Control voltage: 24 V
• Lock type: dynamic, automatic
• Lifting speed: < 55 seconds
• Fuse: 16 C (slow-blow)
• Coating: powder coating
• Suitable for: sedans and SUVs

Is your garage ceiling high enough to park two cars one above the other?

• The required ceiling height depends on the height of the vehicle parked below. Based on the table below, a fixed added height is applied to which you must add the height of the upper car to determine the minimum required ceiling height:

Height of the bottom car   Minimum required ceiling height = fixed value + height of the upper car

87 – 97 cm                           112 cm + height of the upper car

97 – 107 cm                           122 cm + height of the upper car

107 – 117 cm                   132 cm + height of the upper car

117 – 127 cm                   142 cm + height of the upper car

127 – 137 cm                   152 cm + height of the upper car

137 – 147 cm                   162 cm + height of the upper car

147 – 157 cm                   172 cm + height of the upper car

157 – 167 cm                   182 cm + height of the upper car

167 – 177 cm                   192 cm + height of the upper car

177 – 187 cm                   202 cm + height of the upper car

187 – 197 cm                   212 cm + height of the upper car

197 – 207 cm                   222 cm + height of the upper car

207 – 217 cm                   232 cm + height of the upper car
