Four-Post Alignment Lift quattrolift® 4000 WA Hofmann

Country of origin: Italy, warranty period - 24 months

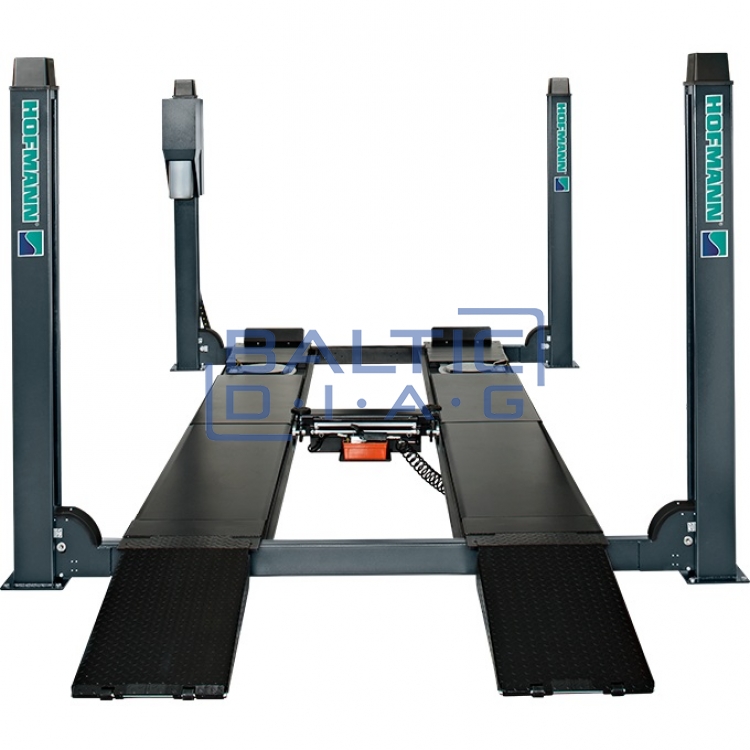

The quattrolift® 4000 WA is a professional four-post alignment lift designed to ensure maximum stability and precise vehicle lifting. It is an ideal solution for automotive workshops, specialized wheel alignment centers, and vehicle maintenance facilities, allowing effortless and reliable execution of various repair and servicing tasks.

Compatible with Hofmann® 3D wheel alignment systems, the quattrolift® 4000 WA enables highly accurate wheel geometry measurements and adjustments, helping to prevent uneven tire wear and improve driving performance.

Features:

• Four-post construction – ensures exceptional stability and safety
• Integrated wheel-free scissor lift – facilitates tire service and vehicle maintenance
• Long runways – suitable for vehicles of various sizes
• Fast lifting and lowering times – enhances workflow efficiency
• High lifting capacity – designed for passenger cars, SUVs, and mid-sized vans
• Fully compatible with Hofmann® 3D wheel alignment systems – guarantees precise wheel geometry adjustments

Technical Specifications:

• Overall length (incl. ramps): 6,348 mm
• Overall width: 3,310 mm
• Width of runways: 630 mm
• Length of runways: 5,280 mm
• Max. lifting height: 1,830 mm
• Initial lifting position: 180 mm
• Inside width between posts: 2,850 mm
• Inside length between posts: 4,838 mm
• Outside length of posts: 5,288 mm
• Length of rear slip plates: 1,980 mm
• Full lifting time: 60 seconds
• Full lowering time: 40 seconds
• Rated capacity of wheel-free lift: 4,000 kg
• Rising height of wheel-free lift: 450 mm
• Wheel-free lift platform length: 1,500 mm (with optional 200 mm and 300 mm extensions)
• Motor power: 3.0 kW
• Power supply: 400V-3PH-50HZ

Cable System

• Durable brass drive system pulleys play a crucial role in extending the lift's lifespan and ensuring smooth operation.

Control Unit

• The compact control unit protects essential electrical components, the hydraulic power pack, and the hydraulic synchronization system. Designed for seamless and user-friendly operation, it includes an emergency stop switch and a convenient lowering mechanism that automatically releases the carriage from its safety lock as the lift descends.

Optional Rolling Jack

• The rolling jack increases versatility by offering a 3,000 kg lifting capacity, allowing additional tasks such as brake service to be performed effortlessly.

Optional Turntables

• Easily integrated into the runways, these optional turntables can be positioned in three different locations to accommodate various wheelbase configurations.

Ramps

• The ramps extend to 106 cm, providing a 10-degree drive-on angle while ensuring that the overall lift system length remains under 640 cm.

Rear Slip Plates

• The integrated rear slip plates allow for full four-wheel alignment on vehicles with wheelbases ranging from 193 cm to 415 cm. To optimize sliding performance, each slip plate is divided into three sections, offering an impressive 120 rollers for smoother movement and precise adjustments.

Safety Lock System

• The lift is equipped with safety locks at every 10 cm, securely immobilizing the runways in place for accurate wheel alignment procedures.
