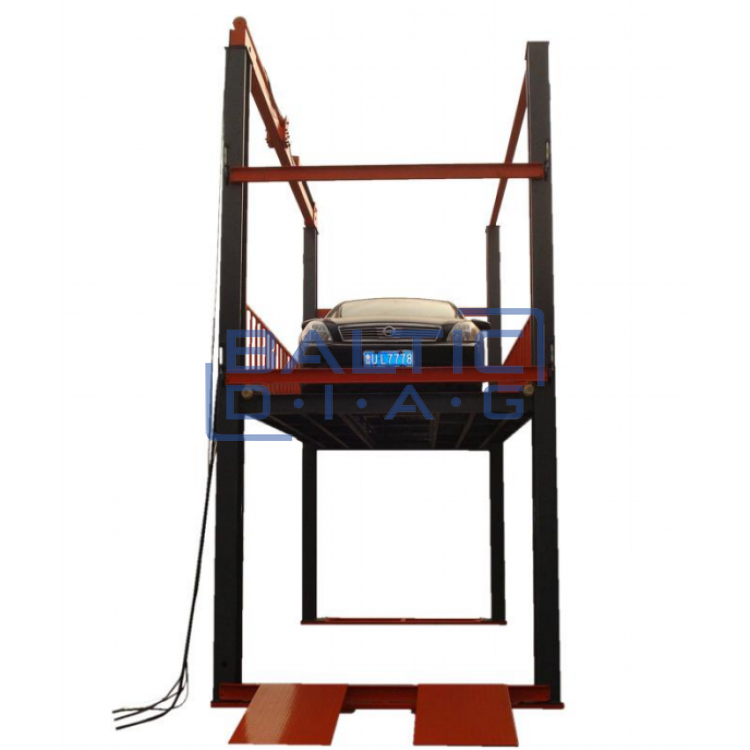

Four-column car parking lift
Four-column car parking lift

Four-column car parking lift

  • SKU: BD876190
0.00 €

Prices shown include tax

Send Message

Description

Four-column car parking lift
  • Maximum height: 4300 mm
  • Max. lifting capacity: 3000 kg
  • Platform size: 5000 * 2700 mm
  • Speed: 4 m / min
  • Engine power: 4KW
  • Security devices: Mechanical anti-fall lock
  • Finishing paint spraying
  • Minimum height: 200 mm
  • Voltage: 380V
  • Control voltage: 24 V
  • Pump station pressure: 18 MPa
  • Product code: 8425429000
  • The design of the lift is adapted for convenient entry and exit.
  • The loading platform is made of a rectangular steel profile. The platform is lined with a tread plate.
  • The lift has a 700 mm high protective fence.
  • Lifting takes place with high quality grenades, stopping and descending as well.
  • The protection factor of the chain model LH1266 is 7 times higher, safe and reliable, meets the requirements of GB / T8918-188.
  • The hydraulic system uses high-quality household oil pumps and control components to ensure service
  • hydraulic station service life and stability.
  • The electrical parts are made of Zhengtai household electrical components and electrical control boxes. which are on each floor.
  • The lift is equipped with a special pneumatic safety device that can safely lock the lift at any lifting point.
  • The lift has an upper limiter that automatically stops the car when it reaches the maximum parking position.
  • As the ascent and descent speeds are synchronized, the elevator does not emit extraneous sound.
  • The lift controller has an electrical overload control component with an insulation resistance of less than 5 megohms.
  • Each floor has control buttons on the column to control multiple points.
  • Before using the car lift, turn on the alarm to warn people about the lift.
