Flue Gas Analyser KANE458s

Flue Gas Analyser KANE458s

Country of origin: United Kingdom, warranty period - 24 months

The Flue Gas Analyser KANE458s is a versatile gas analyser suitable for domestic, commercial, and indoor air quality analysis. It features integrated KANE LINK technology, allowing wireless data transfer to the KANE LIVE app or third-party applications. The device can test appliances up to 120 kW with an optional NOx measurement function, perform tightness tests, assess indoor air quality, and complies with BS7967 and CMDDA15/30 standards.

Functions:

• Ability to test appliances up to 120 kW with an optional NOx sensor
• Hydrophobic filter prevents water damage
• Testing of indoor air quality and flueless gas appliances with an optional CO₂ sensor
• Automatic 2-minute test according to BS7967
• 15- and 30-minute CO room tests according to CMDDA15/30, with the ability to connect up to 4 KANE79 sensors simultaneously
• CP42 certification for commercial kitchen appliances, compliant with CIS23 and BS8494 standards
• Wireless flow and return temperature measurement with optional WPCP2 clamp probes
• Tightness and pressure drop tests according to a structured methodology
• Suitable for investigations under CMDDA1, IGEM/GL/8, CCCN1, COMCAT, COCN1, CIGA1, CGDA1, CORT1, CGFE1, CCP1, or I-GAS standards with additional CO₂ and NOx sensors

Technical Specifications:

• Measurements:
• CO₂: 0–20%
• CO₂: 0–9,999 ppm (optional)
• CO: 0–2,000 ppm or 10,000 ppm with H₂ compensation (optional)
• NO: 0–600 ppm (optional)
• O₂: 0–21% (if fitted)
• Differential temperature: -20 – +1350°C (with suitable probes)
• Differential pressure: -80 – +80 mbar
• Airflow: 1.1 – 20 m/s (with optional KANE-DTHA2)
• Temperature: -20 – +50°C (with optional KANE-DTHA2)
• Relative humidity: 0.1 – 99% (with optional LINK KANE-DTHA2)
• Room CO concentration: 0–999 ppm (with optional KANE79 CO monitor, up to 4 units can be connected)
• Calculated Values:
• O₂ / CO₂ ratio
• CO / CO₂ ratio
• Excess air
• Combustion efficiency
• NOx concentration (optional)
• Compatible Fuel Types:
• Natural gas
• LPG (propane, butane)
• Wood pellets
• Light oil

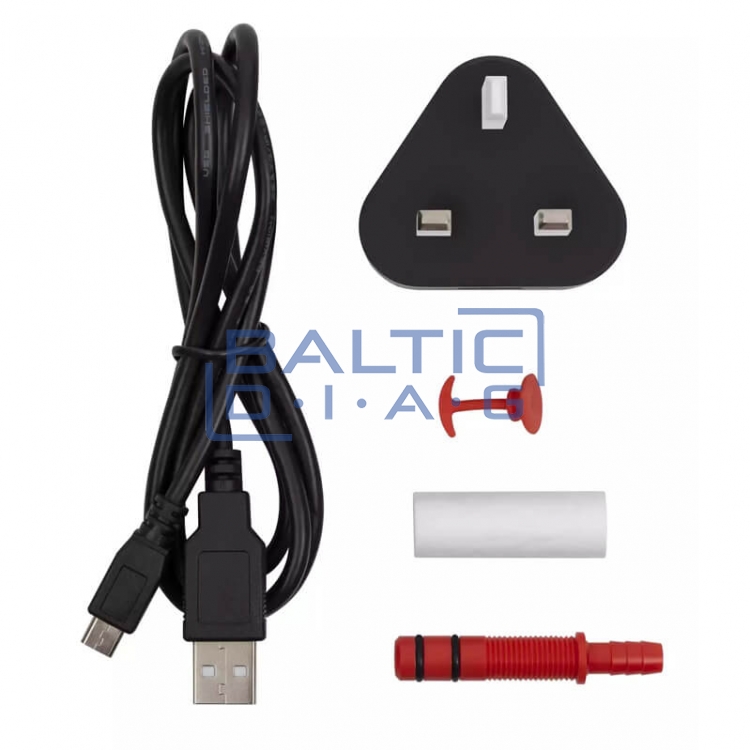

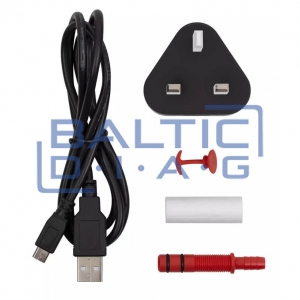

Box Contents:

• Analyser
• Probe
• Pressure connectors
• USB charger
• Quick reference guide and analyser calibration certificate
