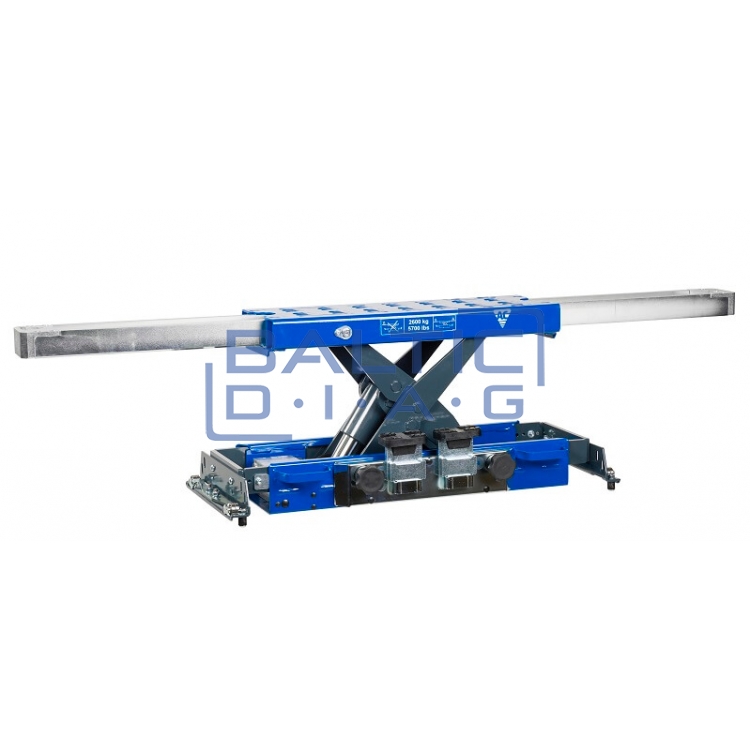

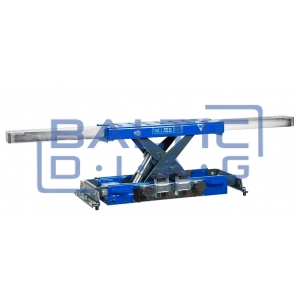

Extra wide pneumo-hydraulic jacking beam AC-Hydraulic 2.6 tons

Extra wide pneumo-hydraulic jacking beam AC-Hydraulic 2.6 tons

Manufacturer: AC-Hydraulic, Denmark

One of the widest pneumo-hydraulic jacking beam in the world. Thanks to the adjustable lifting supports, the width of the lift can reach as much as 1865 mm. The minimum height of the lift is only 190 mm, which makes it a good choice even for cars with low ground clearance. Fast and very reliable lifting of cars, thanks to a faster and much more efficient pump. It features a unique height-adjustable mounting bracket system, allowing you to adapt this jacking beam to any lift. Lowering the jacking beam using two hands, because of dead man's release. This jacking beam supplied with 3 extension sets (10 / 40 / 85 mm) and rubber pads to protect the car body.

Unique advantages:

• New pump. The wide edition features in our new and improved pump, which ensures even more reliability, as well as over 50% faster lifting and lowering.
• Flexible mounting bracket system. Unique height adjustable mounting bracket system, which ensures ideal fit to any car lift, regardless of manufacturer.
• Excellent adaptability to work with electric vehicles. The lifting points will always be wider than any battery pack frame. It ensures the lifting of the electric car without damaging the batteries.

Technical parameters:

• Lifting capacity: 2600 kg
• Stroke: 250 mm
• Minimum height: 190 mm

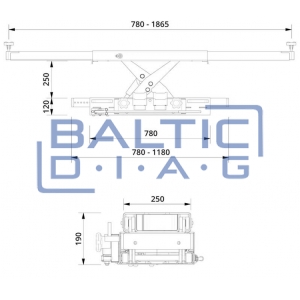

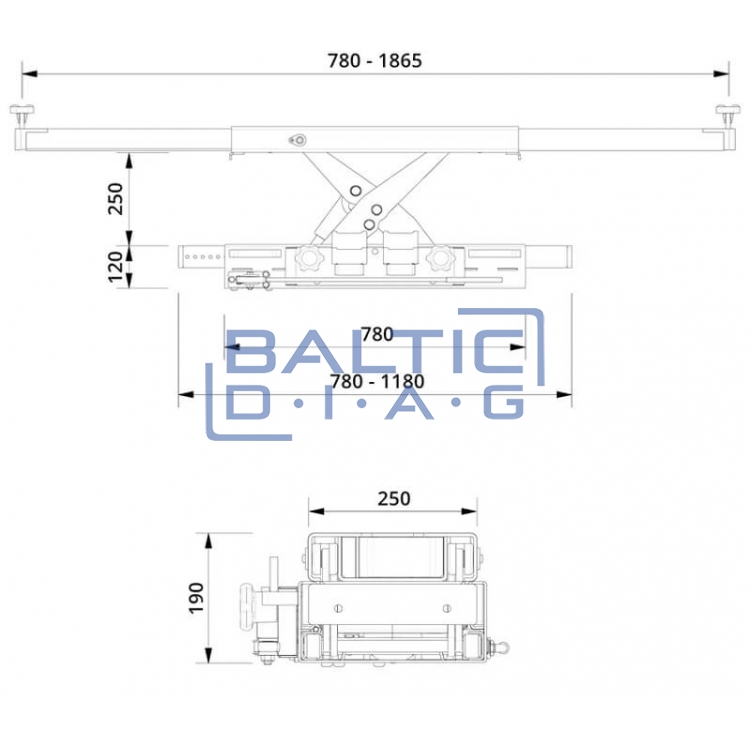

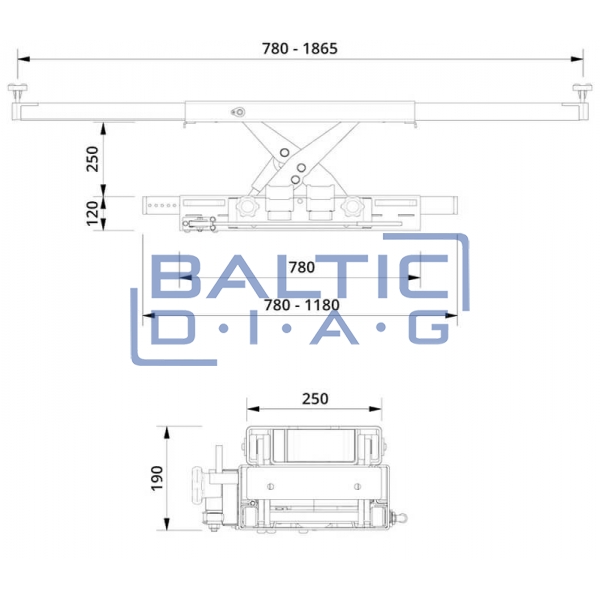

• Width of telescopic lifting arms: 780 - 1865 mm
• Width without mounting brackets: 780 - 1180 mm
• Height of lifting frame: 120 mm
• Depth of the lifting frame: 250 mm
• Required air supply: 8 - 10 bar
• Air consumption: 400 - 700 l/min
• Weight: 120 kg
