Endoscope with 4.5 mm analog 2-way articulation probe for common rail

Endoscope with 4.5 mm Analog 2-Way Articulation Probe for Common Rail

Country of origin: Belgium, warranty period – 24 months

This professional endoscope with a 4.5 mm diameter 2-way articulation probe is designed for precise inspection of internal components in narrow and hard-to-reach areas. With its high 640×480 resolution, 170° articulation angle, and a shorter-than-standard camera head, the tool enables effective system inspections without the need for additional mirror adapters. It is especially suitable for automotive repair tasks, particularly for Common Rail engines and other systems that require precision and clear visuals.

Features:

• High 640×480 image resolution with 4 integrated LED light
• Ultra-slim 4.5 mm probe diameter – reaches even the narrowest openings

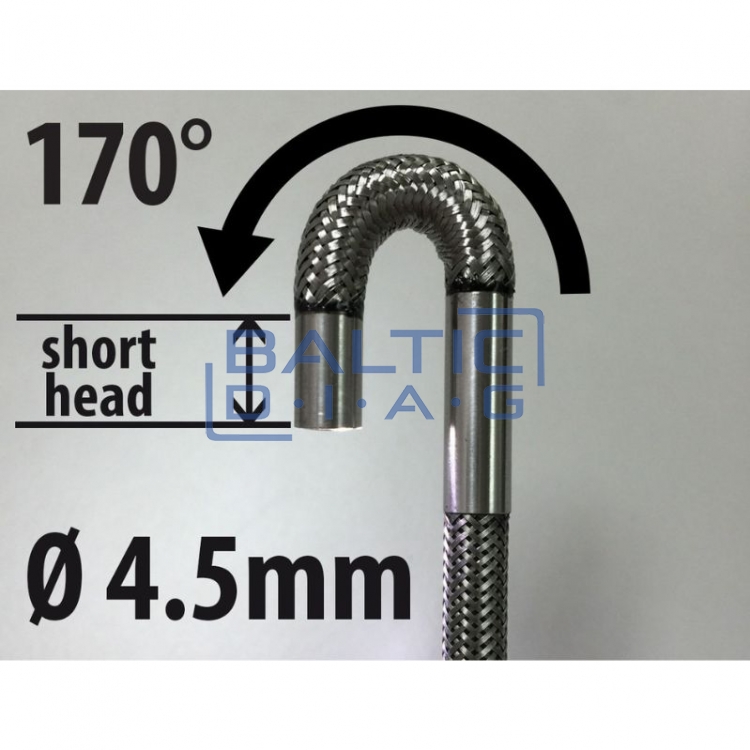

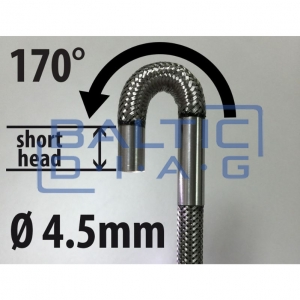

• Over 170° articulation angle – no need for mirror adapters for side viewing
• Camera head is 13 mm shorter – allows better maneuverability in confined spaces
• 90° image rotation – improved visibility from different angles
• "Light Boost" function – enhanced illumination in dark areas
• Ideal for automotive diagnostics

Technical Specifications:

• Probe diameter: 4.5 mm
• Probe length: 1 meter
• Articulation: 2-way, over 170° angle
• Resolution: 640 × 480 px
• Illumination: 4 LED lights with "Light Boost"
• Image rotation: 90° steps
• Camera head: 13 mm shorter than standard for increased flexibility

Applications:

• Common Rail engines, air conditioning systems, exhaust systems, diesel injector ports, glow plug ports, power window mechanisms, trunk locks
