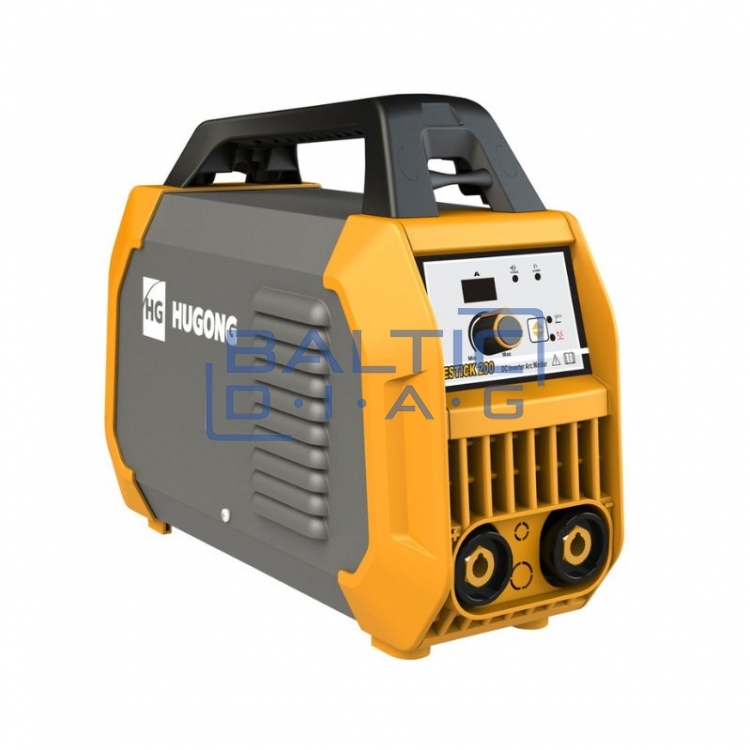

Electrode welding machine Hugong 200A
Electrode welding machine Hugong 200A

Electrode welding machine Hugong 200A

  • SKU: BD70573
363.00 €

Prices shown include tax

Send Message

Description

Electrode Welding Machine Hugong 200A

Country of origin: Netherlands, warranty period – 24 months

The Hugong EStick200 is a compact and powerful 200A electrode welding machine designed for professional use both in workshops and on-site. With modern IGBT inverter technology, it ensures a stable welding current and energy efficiency. This machine is ideal for welding carbon steel, low-alloy steel, and stainless steel, and supports both rutile (E6013) and basic (E7018) electrodes ranging from 1.6 to 4.0 mm. Additionally, TIG welding is possible using the “Lift-TIG” start function (torch sold separately).

Features:
  • IGBT inverter technology for stable arc and energy-efficient performance
  • Hot-start, Anti-stick, and ARC force functions for easier ignition, preventing electrode sticking, and better arc control
  • Lift-TIG function for precise TIG welding (requires a separate torch)
  • Durable plastic case for safe transport and storage
  • Ergonomic operation – welding current is adjusted with a single rotary knob
Technical Specifications:
  • Voltage: 230V – Single-phase
  • Frequency: 50/60 Hz
  • Nominal input current: 41 A
  • Power: 9.0 kVA
  • Open circuit voltage: 78 V
  • Duty cycle @20°C: 40% – 200 A
  • Duty cycle @40°C: 15% – 200 A
  • Electrode range: 1.6–4.0 mm
  • Welding current range: MMA 41–200 A / TIG 15–200 A
  • Protection class: IP21S
Product Dimensions:
  • Length: 400 mm
  • Width: 154 mm
  • Height: 300 mm
  • Weight: 5.5 kg
Packaging Dimensions:
  • Length: 450 mm
  • Width: 245 mm
  • Height: 345 mm
  • Weight: 8.0 kg
Included in the package:
  • Twistlock electrode holder with 3 m 25 mm² cable
  • Ground clamp with 3 m 25 mm² cable
  • Neoprene power cable (2 m, 3×2.5 mm²)
  • Durable plastic carrying case
