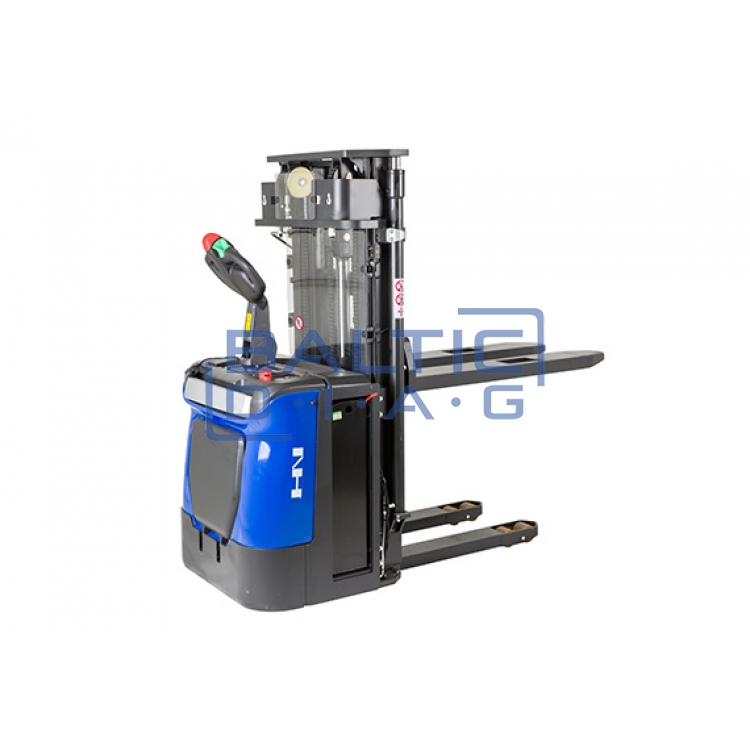

Electric Self-Propelled Electro-Hydraulic Stacker 1600 kg NH Handling SKS1653FL-P
Country of origin: Denmark, warranty period - 36 months

The NH Handling SKS1653FL-P is an electric self-propelled electro-hydraulic stacker designed for convenient and safe material handling in warehouses or production facilities. This model offers a lifting capacity of 1600 kg and an impressive lifting height of 5300 mm, making it suitable for working with goods stored at high levels. Thanks to the free lift function, the forks can be raised up to 1756 mm without increasing the overall height of the unit – a key feature when operating in low-ceiling areas. Ergonomic controls, a foldable operator platform with safety bars, and automatic braking ensure a high level of operator safety.

Functions:
  • Free lift function allows raising forks without increasing overall height
  • Foldable standing platform with safety bars
  • Ergonomically positioned control elements on the tiller handle
  • Pulse control – from rapid to highly sensitive response
  • Automatic braking when the handle is released
  • Anti-roll-back protection during lifting
  • Integrated 230 V / 35 A charger
Technical specifications:
  • Lifting capacity: 1600 kg
  • Lifting function: electric hydraulic
  • Drive motor: Schaubmuller
  • Battery: 24 V / 240 Ah
  • Lifting height: 5300 mm
  • Overall height: 5780 mm
  • Fork lifting height: 2343 mm
  • Free lift: 1756 mm
  • Fork width: 570 mm
  • Travel speed without load: 7 / 6 km/h
  • Lifting speed with / without load: 13 / 20 mm/s
  • Gradeability with / without load: 6 / 12˚
  • Fork wheels diameter: Ø 85 x 75 mm
  • Steering / drive wheels diameter: Ø 230 x 54 mm
  • Support wheels diameter: Ø 150 x 54 mm
  • Weight: 1343 kg
