Electro-hydraulic self-propelled loader 1600 kg NH Handling SKS1634FL
Electro-hydraulic self-propelled loader 1600 kg NH Handling SKS1634FL

Electro-hydraulic self-propelled loader 1600 kg NH Handling SKS1634FL

  • SKU: BD99847
15,685.00 €

NH Handling NH Handling
Prices shown include tax
Add to Cart

Send Message

Description

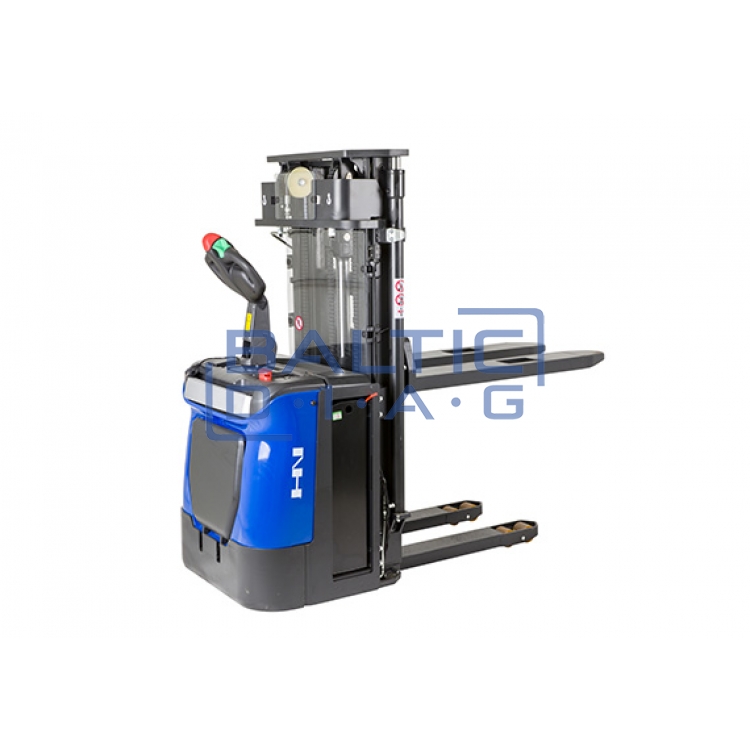

Electric Self-Propelled Electro-Hydraulic Stacker 1600 kg NH Handling SKS1634FL
Country of origin: Denmark, warranty period - 36 months

The NH Handling SKS1634FL is a compact electric self-propelled electro-hydraulic stacker designed for reliable and efficient operation in warehouses and production facilities. With a lifting capacity of 1600 kg and a lifting height of 3400 mm, this unit is suitable for lifting goods to low and medium-height racking systems. The free lift function allows the forks to be raised up to 1120 mm without increasing the overall height of the stacker – especially useful in low-clearance areas. All control elements are ergonomically positioned, and the integrated charger allows for easy charging without additional equipment.

Functions:
  • Free lift function – forks can be raised without increasing the overall height
  • Foldable standing platform with safety bars
  • Ergonomically positioned control elements on the tiller handle
  • Pulse control – sensitive speed regulation
  • Automatic braking when the tiller handle is released
  • Anti-roll-back protection during lifting
  • Integrated 230 V / 35 A charger
Technical specifications:
  • Lifting capacity: 1600 kg
  • Lifting function: electric hydraulic
  • Drive motor: Schaubmuller
  • Battery: 24 V / 240 Ah
  • Lifting height: 3400 mm
  • Overall height: 3880 mm
  • Fork lifting height: 1708 mm
  • Free lift: 1120 mm
  • Fork width: 570 mm
  • Travel speed without load: 7 / 6 km/h
  • Lifting speed with / without load: 13 / 20 mm/s
  • Gradeability with / without load: 6 / 12˚
  • Fork wheel diameter: Ø 85 x 75 mm
  • Steering / drive wheel diameter: Ø 230 x 54 mm
  • Support wheel diameter: Ø 150 x 54 mm
  • Weight: 1253 kg
