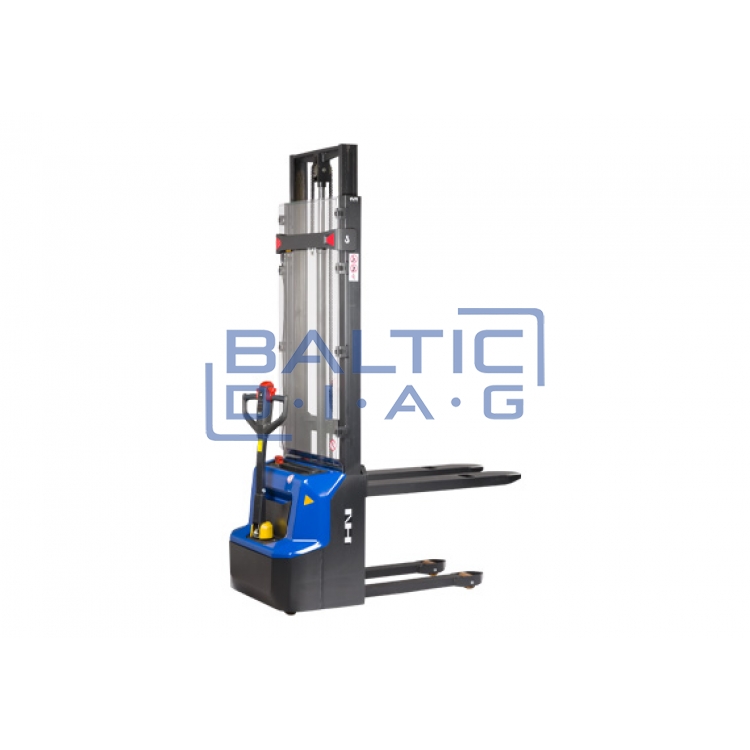

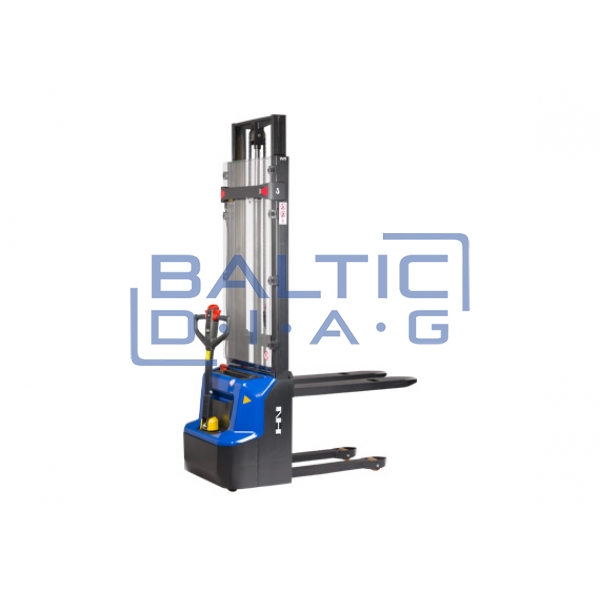

Electro-hydraulic self-propelled loader 1000 kg NH Handling SKS1229

Electro-hydraulic Self-propelled Stacker 1000 kg NH Handling SKS1229

Functions:

• Can be operated via handles
• Ergonomic arrangement of all control elements on the handle
• PIN code panel for secure startup
• Impulse speed control from slow to fast
• Automatic braking when the handle is released
• Reverse movement is disabled during lifting
• Built-in charger (1 x 230 V / 24 V - 12 A)
• Option to equip with an hour limiter

Technical specifications:

• Lifting capacity: 1000 kg
• Lifting function: electric hydraulic
• Drive motor: Hangzhou
• Battery: 2 x 12 V / 85 Ah
• Lifting height: 2900 mm
• Overall height: 3337 mm
• Fork lifting height: 1930 mm
• Travel speed without load: 4.6 / 4.2 km/h
• Lifting speed without / with load: 19 / 12 mm/s
• Maximum incline without / with load: 10 / 5˚
• Fork width: 570 mm
• Fork wheels: Ø 84 x 93 mm
• Steering / drive wheels: Ø 210 x 70 mm
• Support wheels (adjustable): Ø 100 x 60 mm
• Weight: 594 kg
