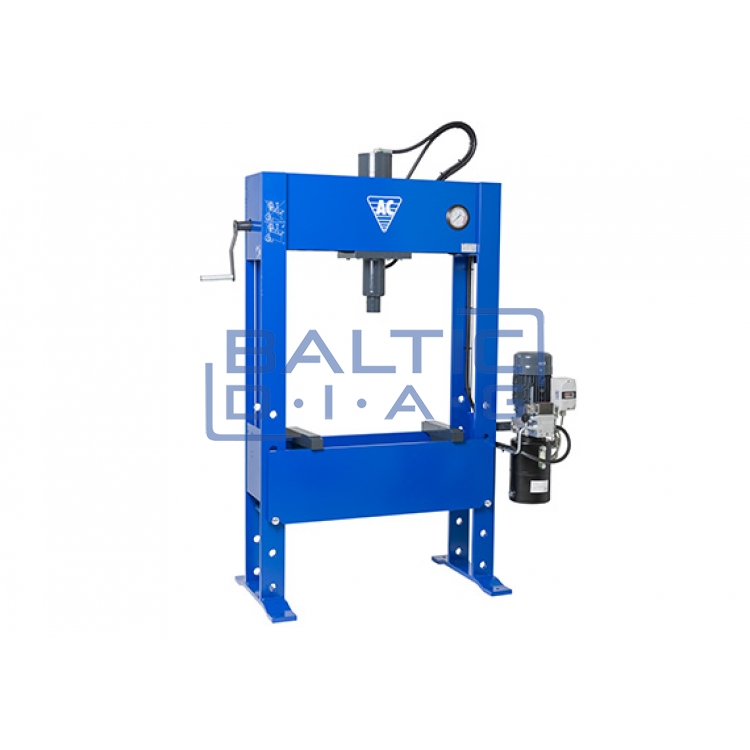

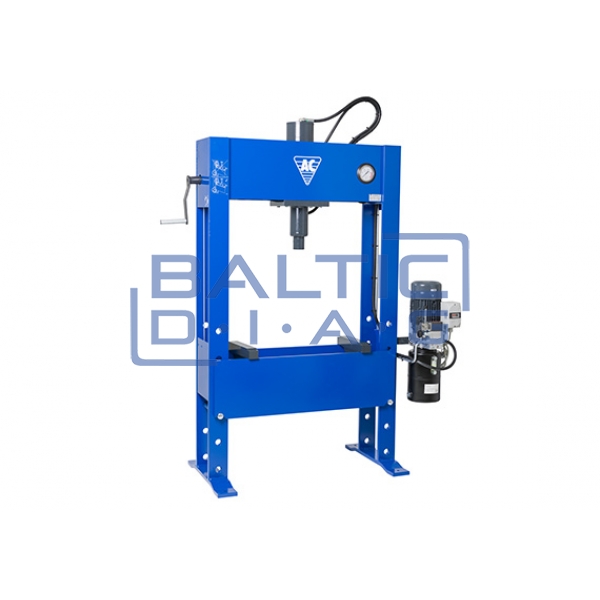

Electro-hydraulic press AC Hydraulic P60EH2
Electro-hydraulic press AC Hydraulic P60EH2

Electro-hydraulic press AC Hydraulic P60EH2

  • SKU: BD13480
Price

6,007.65 €

Price in store with tax

6,007.65 €

Prices shown include tax

Send Message

Description

Electro-hydraulic press AC Hydraulic P60EH2


AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Electro-hydraulic press for truck repair facilities and heavy industry

Description:

- P60EH1: One step pump
- P60EH2: Two-step pump
- The pressure can be set to any value up to 60 tonnes
- Sliding double action 300 mm stroke cylinder
- Integrated pressure gauge at comfortable eye level
- Gerva controlled press desk
- Integrated safety relief valve
- Removable cylinder head for adapting different heads
- Motor 3x400V 50 / 60Hz (Can be changed to 3x230V on request)
- Supplied with 2 prisms
- Manufacturer: Denmark
- Warranty: 3 years

Technical parameters:

- Capacity: 60 tonnes
- Stroke of piston: 300 mm
- Press height: 1980 mm
- Press width with motor: 1555 mm
- Inner width: 1010 mm
- Inside Depth: 259 mm
- Working area: 180 - 780 mm
- Press speed: 10,0 mm / s
- Return speed: 14,5 mm / s
- Weight: 635 kg
