Electro-hydraulic press AC Hydraulic P40EH1
Electro-hydraulic press AC Hydraulic P40EH1

Electro-hydraulic press AC Hydraulic P40EH1

  • SKU: BD13460
Price

5,203.00 €

Price in store with tax

5,203.00 €

Prices shown include tax

Send Message

Description

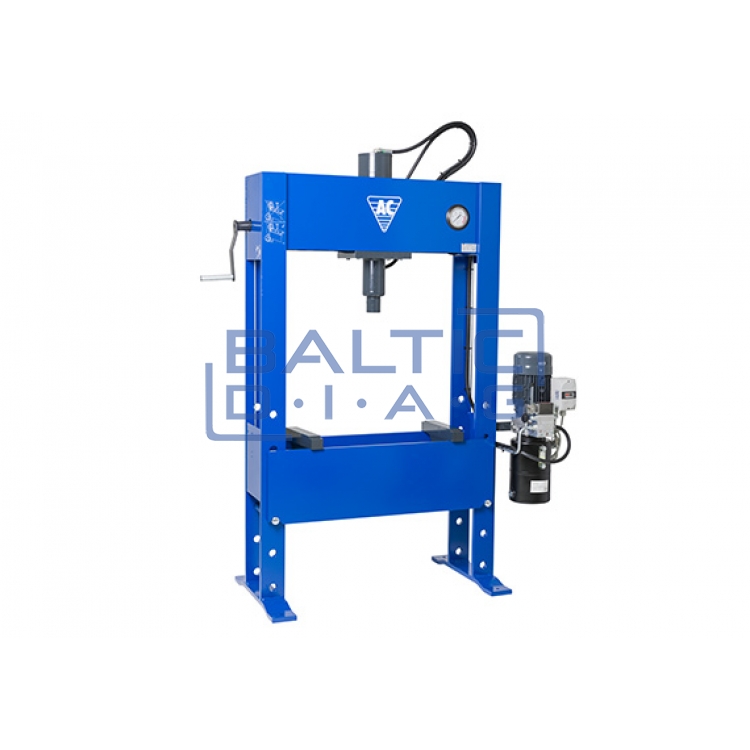

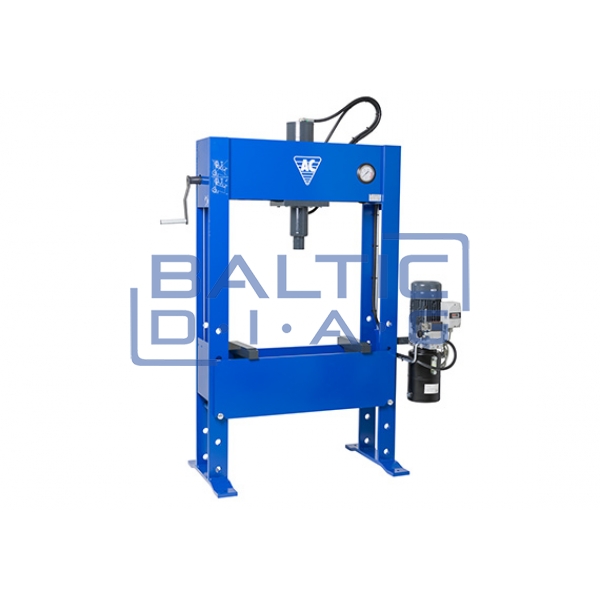

Electro-hydraulic press AC Hydraulic P40EH1


AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Electro-hydraulic press for truck repair facilities and industry

Description:

- Electro-hydraulic one-step pump (press speed: 6.1 mm / sec)
- The pressure can be set to any value up to 40 tonnes
- Sliding double acting cylinder
- 300 mm piston stroke for heavier work
- Integrated pressure gauge at comfortable eye level
- Gerva controlled press desk
- Integrated safety relief valve
- Wide welded casing and press table made of high-strength steel
- Removable cylinder head for adapting different heads
- Motor 3x400V 50 / 60Hz (Can be changed to 3x230V on request)
- Supplied with 2 prisms
- Manufacturer: Denmark
- Warranty: 3 years

Technical parameters:

- Capacity: 40 tonnes
- Stroke of piston: 300 mm
- Press height: 1740 mm
- Press width with motor: 1355 mm
- Inside width: 850 mm
- Inside Depth: 215 mm
- Working area: 85 - 785 mm
- Press speed: 6.1 mm / s
- Return speed: 7.9 mm / s
- Weight: 445 kg
