Electro-hydraulic load lifting table 1000 kg, NH Handling HIW

Electro-hydraulic load lifting table 1000 kg, NH Handling HIW

SKU: BD99832
SKU:: 8636820

2,940.00 €

NH Handling

Prices shown include tax

Add to Cart

Send Message

Description

Electro-hydraulic load lifting table 1000 kg, NH Handling HIW

Manufacturer: NH Handling, Denmark.

Features:

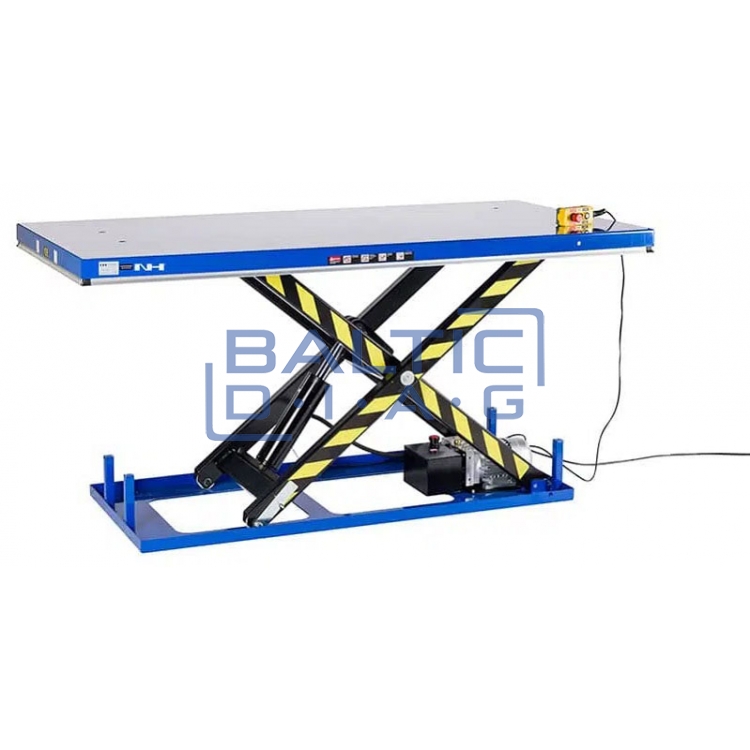

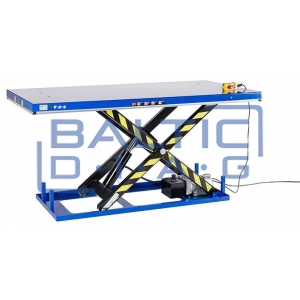

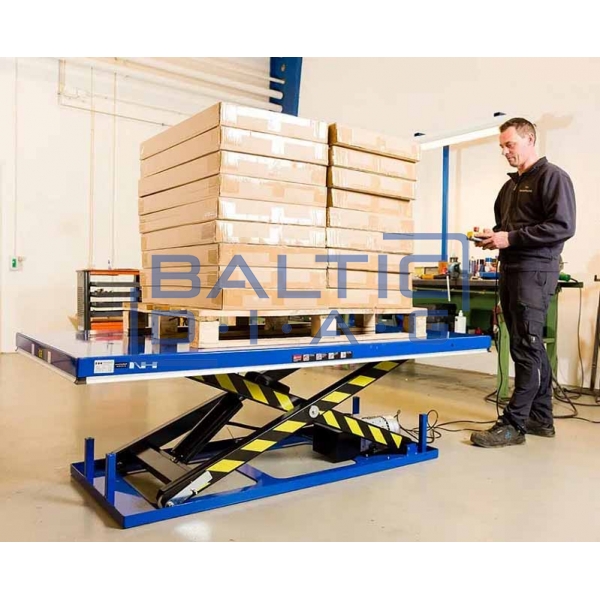

A table for lifting loads, which is designed for lifting various loads to a comfortable height for work
Lifting capacity of this series of lifting tables: 500 or 1000 kg

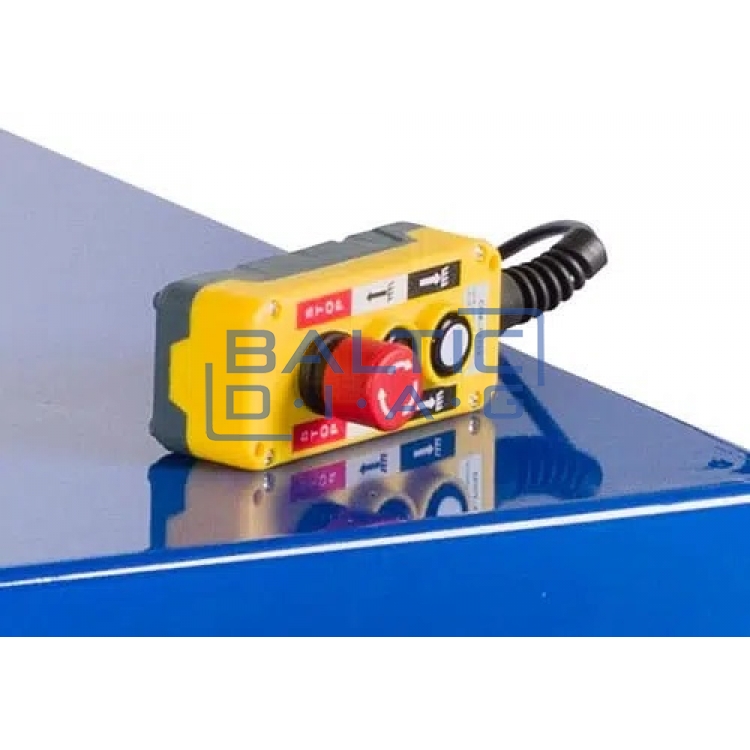

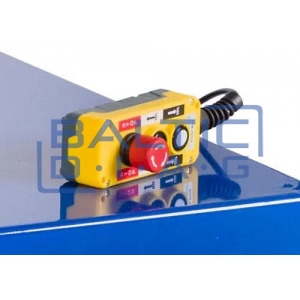

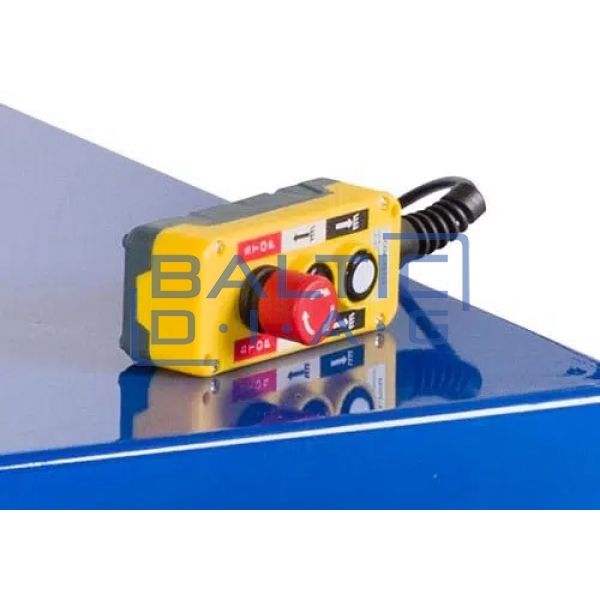

Remote control for raising/lowering the table. Built-in emergency stop button
Strong and reliable construction of the lifting table
Each lifting table has special protective walls that prevent the table from being crushed

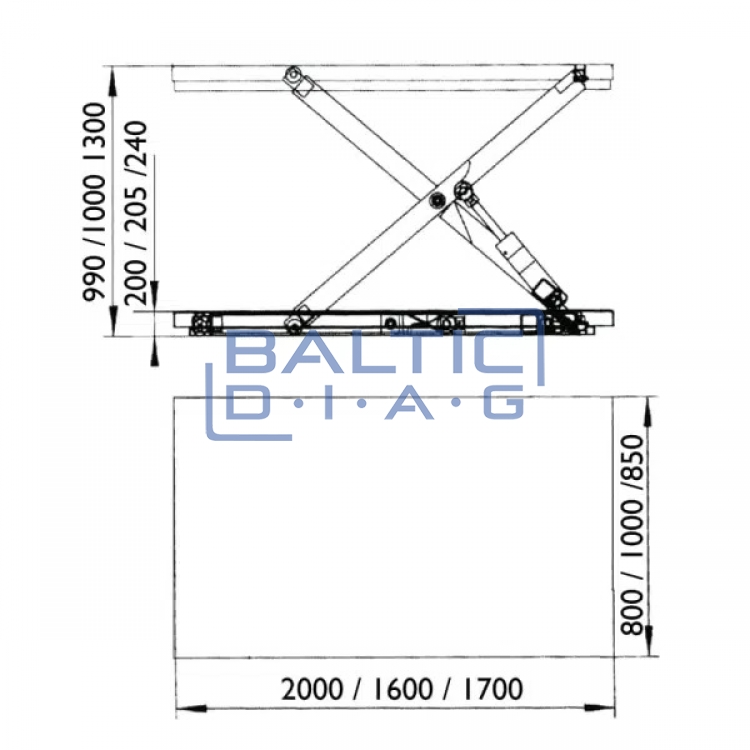

Technical parameters:

Lifting table model:	HIW1002	HIW1004	HIW1005	HIW1006
Lifting capacity:	1000 kg	1000 kg	1000 kg	1000 kg
Lifting mechanism:	Electro-hydraulic	Electro-hydraulic	Electro-hydraulic	Electro-hydraulic
Power supply voltage:	3 x 400 V	3 x 400 V	3 x 400 V	3 x 400 V

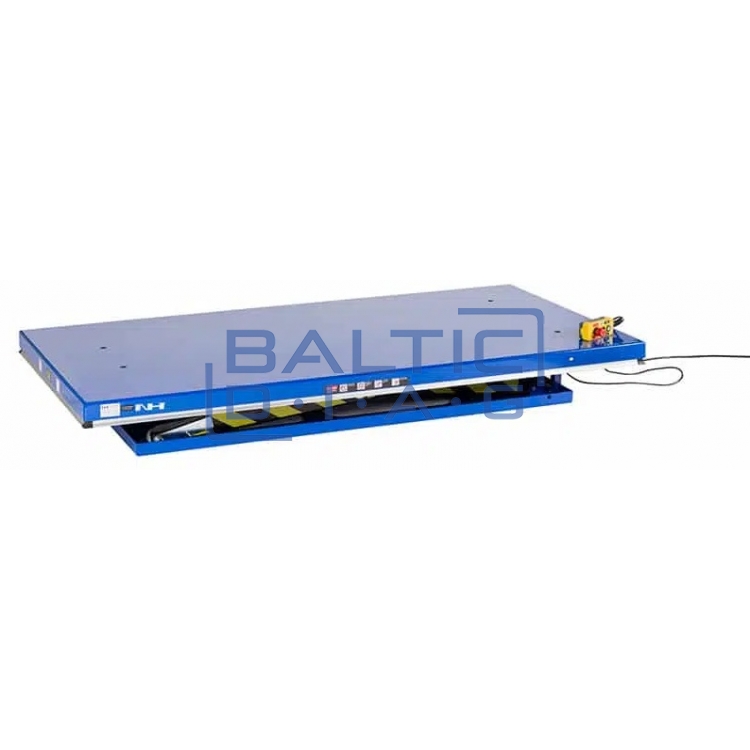

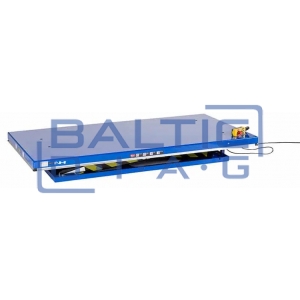

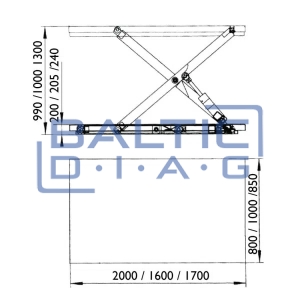

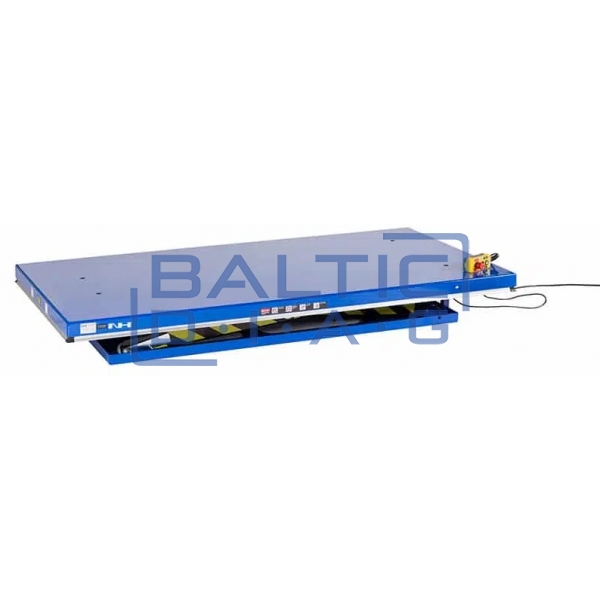

Minimum lift height:	205 mm	240 mm	240 mm	240 mm

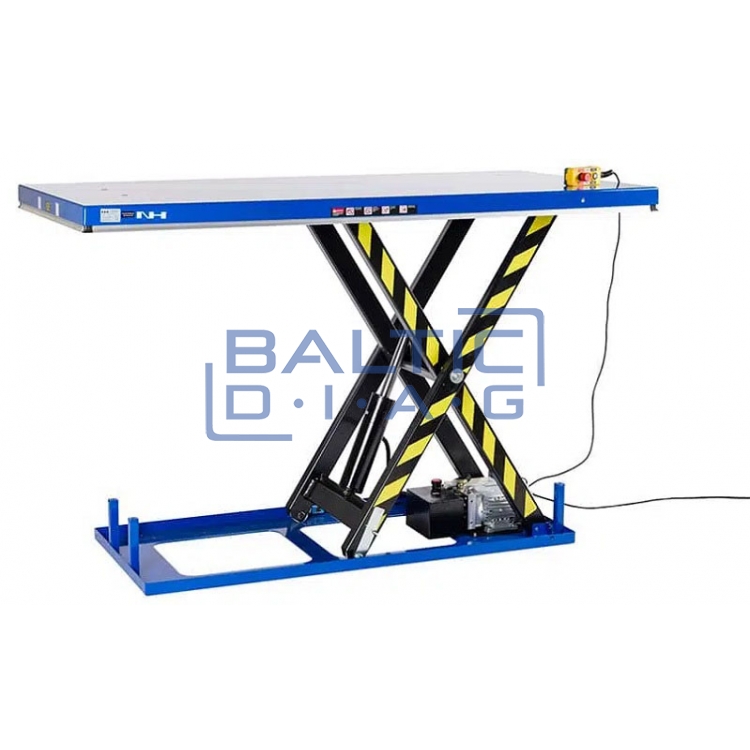

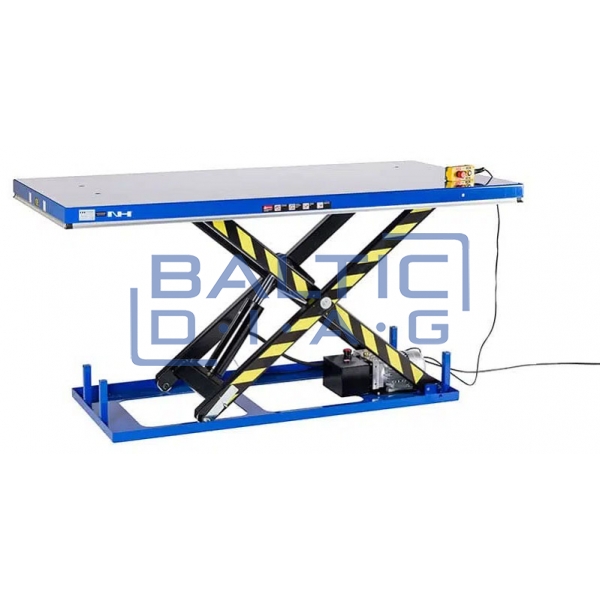

Maximum lifting height:	990 mm	1300 mm	1300 mm	1300 mm
Working surface (tabletop) parameters:	1600 x 1000 mm	1700 x 1000 mm	2000 x 850 mm	2000 x 1000 mm
Table top lowering speed:	40 mm/s	40 mm/s	40 mm/s	40 mm/s
Table top lifting speed:	20 - 25 mm/s	30 - 35 mm/s	30 - 35 mm/s	30 - 35 mm/s
Weight:	226 kg	250 kg	252 kg	263 kg
Price with VAT:	2920,00 EUR	3260,00 EUR	3260,00 EUR	3600,00 EUR
